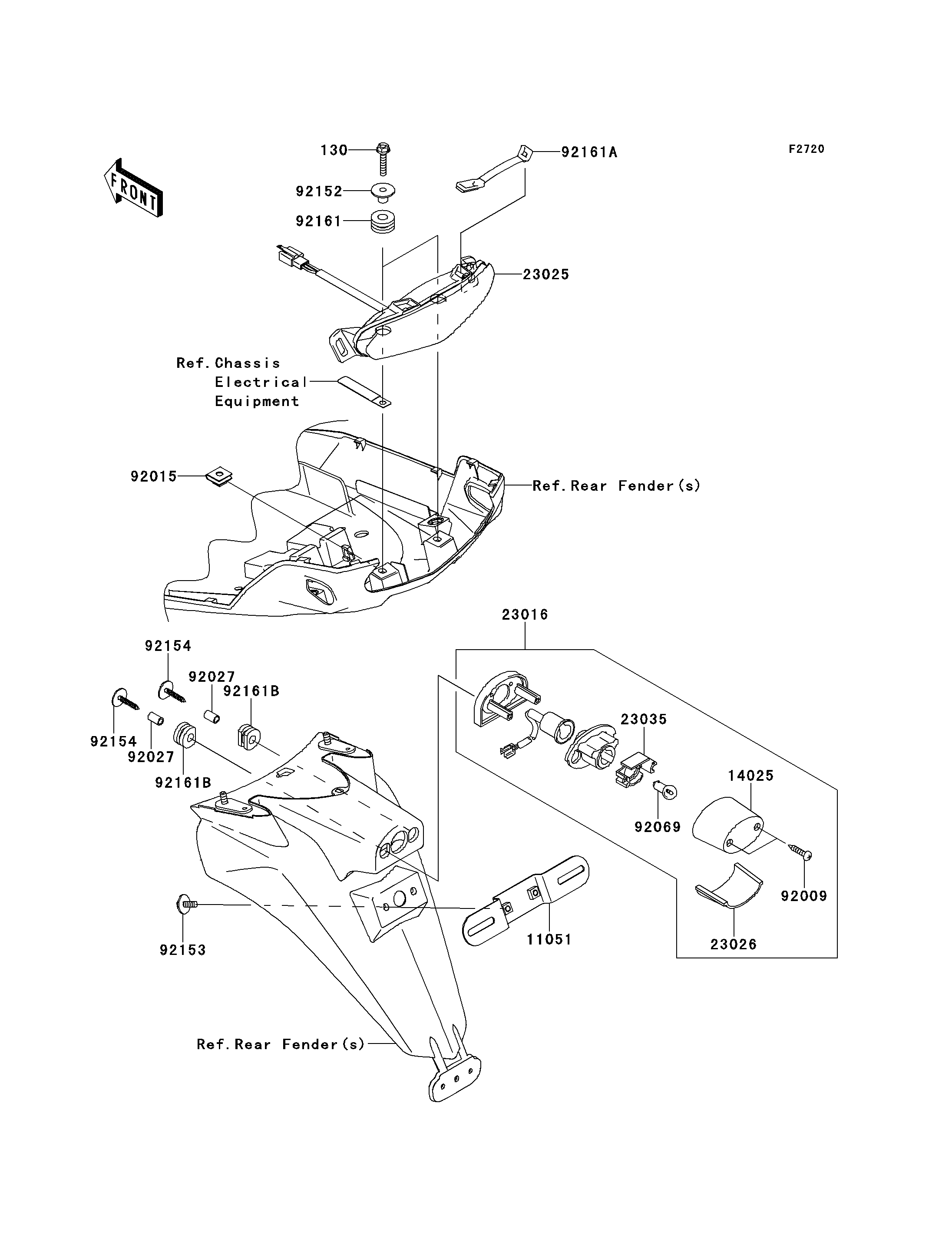

2014 VERSYS® 1000 (European) - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
130
11051
14025
23016
23025
23026
23035
92009
92015
92027
92027
92069
92152
92153
92154
92154
92161
92161A
92161B
92161B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X30 130 130BB0630 2
BRACKET,LICENSE 11051 11051-1503 1
COVER,LICENSE LAMP 14025 14025-1725 1
LAMP-ASSY,LICENSE 23016 23016-0003 1
LAMP-TAIL 23025 23025-0319 1
LENS,LICENSE LAMP 23026 23026-1064 1
REFLECTOR-LAMP,LICENSE 23035 23035-1066 1
SCREW,TAPPING,4X20 92009 92009-1378 2
NUT,6MM 92015 92015-1094 2
COLLAR,5.6X8X14.5 92027 92027-1789 2
BULB,12V 5W 92069 92069-1055 1
COLLAR 92152 92152-1603 2
BOLT,6X16 92153 92153-1423 2
BOLT,TAPPING,5X30 92154 92154-1042 2
DAMPER 92161 92161-0163 2
DAMPER,TAIL LAMP UPP 92161A 92161-0625 1
DAMPER 92161B 92161-0776 2
