410
32099
32099A
53003
53066
92015
92015A
92015B
92143
92143
92143A
92153
92154
92161
92161
92161
92161
92200

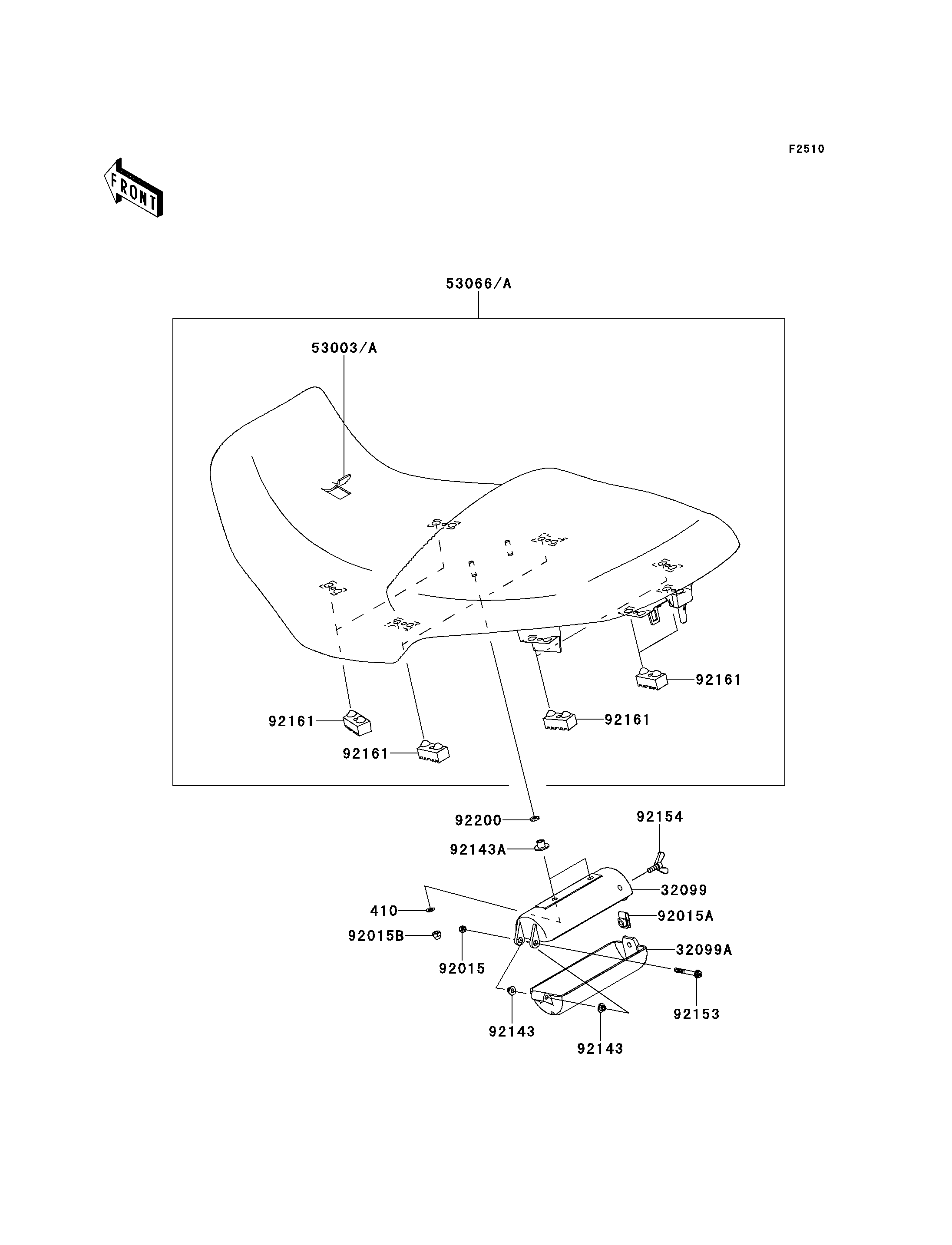

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WASHER-PLAIN-SMALL,6MM | 410 | 410AB0600 | 2 | ||
| CASE,TOOL,BODY | 32099 | 32099-1184 | 1 | ||
| CASE,TOOL,CAP | 32099A | 32099-1185 | 1 | ||
| LEATHER,SEAT,BLACK | 53003 | 53003-0330-MA | 1 | ||
| SEAT-ASSY,DUAL,BLACK | 53066 | 53066-0367-MA | 1 | ||
| NUT,LOCK,5MM | 92015 | 92015-1221 | 1 | ||
| NUT,6MM | 92015A | 92015-1602 | 1 | ||
| NUT,6MM | 92015B | 92015-2272 | 2 | ||
| COLLAR | 92143 | 92143-1234 | 2 | ||
| COLLAR | 92143A | 92143-1962 | 2 | ||
| BOLT,ADJUST,5X45 | 92153 | 92153-1216 | 1 | ||
| BOLT,WING,6X15 | 92154 | 92154-1051 | 1 | ||
| DAMPER,SEAT | 92161 | 92161-0050 | 8 | ||
| WASHER,6.2X12X1.6 | 92200 | 92200-0806 | 2 |
