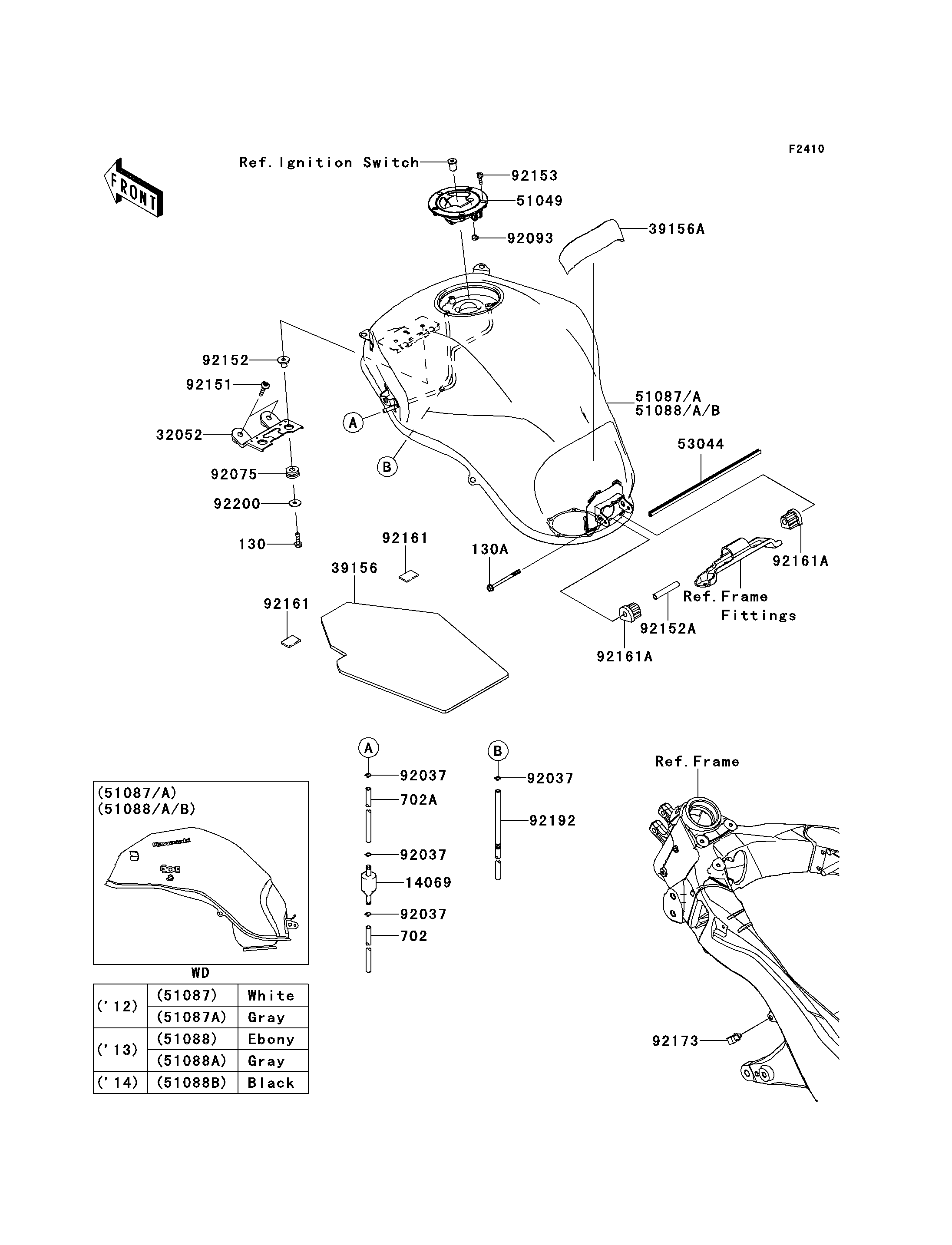

2014 VERSYS® 1000 (European) - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
130
130A
702
702A
14069
32052
39156
39156A
51049
51088B
53044
92037
92037
92037
92037
92075
92093
92151
92152
92152A
92153
92161
92161
92161A
92161A
92173
92192
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X22 130 130BA0622 2
BOLT-FLANGED,6X70 130A 130BB0670 1
TUBE-RUBBER,6X200 702 702A06200 1
TUBE-RUBBER,6X9X450 702A 702A06450 1
BREATHER,TANK 14069 14069-0008 1
BRACKET-TANK,F.S.BLACK 32052 32052-0146-18R 1
PAD,FUEL TANK 39156 39156-0658 1
PAD,FUEL TANK,RR 39156A 39156-0982 1
CAP-TANK,FUEL 51049 51049-0039 1
TANK-COMP-FUEL,M.S.BLACK 51088B 51088-5190-660 1
TRIM 53044 53044-1296 1
CLAMP,TUBE 92037 92037-010 4
DAMPER 92075 92075-1690 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,SOCKET,6X30 92151 92151-1605 2
COLLAR 92152 92152-0091 2
COLLAR,6.8X10X60 92152A 92152-1182 1
BOLT,SOCKET,5X16 92153 92153-1616 3
DAMPER,20X30X3 92161 92161-0958 2
DAMPER,FUEL TANK,RR 92161A 92161-1330 2
CLAMP 92173 92173-0736 1
TUBE,6X9X926(30) 92192 92192-1024 1
WASHER,6.5X22X1.6 92200 92200-1087 2
