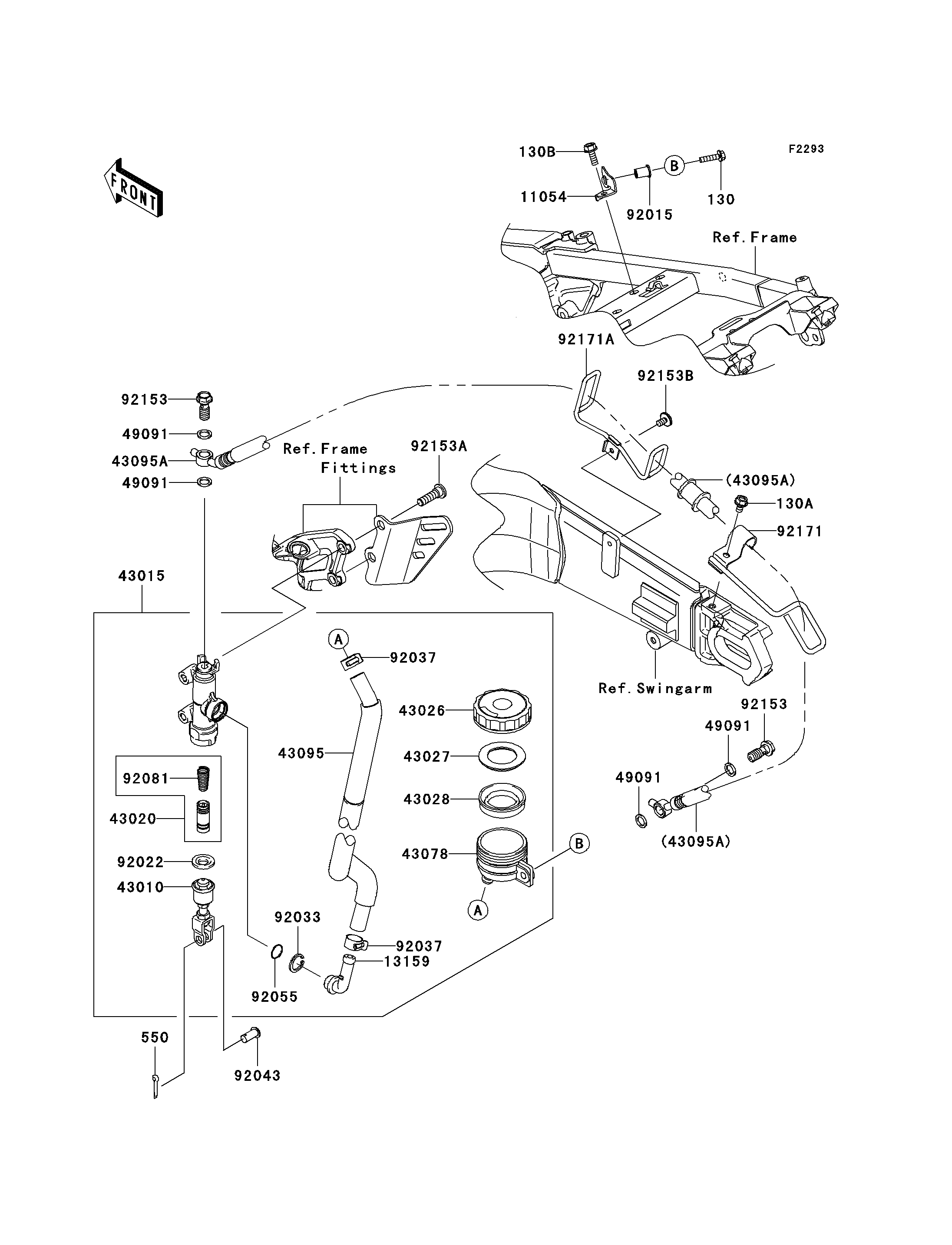

2008 Ninja® ZX™-14 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
550
11054
13159
43010
43015
43020
43026
43027
43028
43078
43095
43095A
49091
49091
49091
49091
92015
92022
92033
92037
92037
92043
92055
92081
92153
92153
92153A
92153B
92171
92171A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,5X20 130 130BA0520 1
BOLT-FLANGED,6X12 130A 130BA0612 1
BOLT-FLANGED,6X16 130B 130BA0616 1
PIN-COTTER,2.0X15 550 550AA2015 1
BRACKET,RESERVOIR TANK,RR 11054 11054-0184 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
ROD-ASSY-BRAKE 43010 43010-1055 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0056 1
PISTON-COMP-BRAKE 43020 43020-1057 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
RESERVOIR,RR MASTER CYLINDER 43078 43078-1082 1
HOSE-BRAKE,RR MASTER CYLINDER 43095 43095-0235 1
HOSE-BRAKE,RR 43095A 43095-0401 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
NUT,WELL,5MM 92015 92015-1757 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
PIN,8X17 92043 92043-0104 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
SPRING,MASTER CYLINDER 92081 92081-1737 1
BOLT,OIL,L=23 92153 92153-0627 2
BOLT,SOCKET,8X30 92153A 92153-1624 2
BOLT,SOCKET,6X10 92153B 92153-1628 1
CLAMP,BRAKE HOSE,RR 92171 92171-0553 1
CLAMP,BRAKE HOSE,FR 92171A 92171-0749 1
