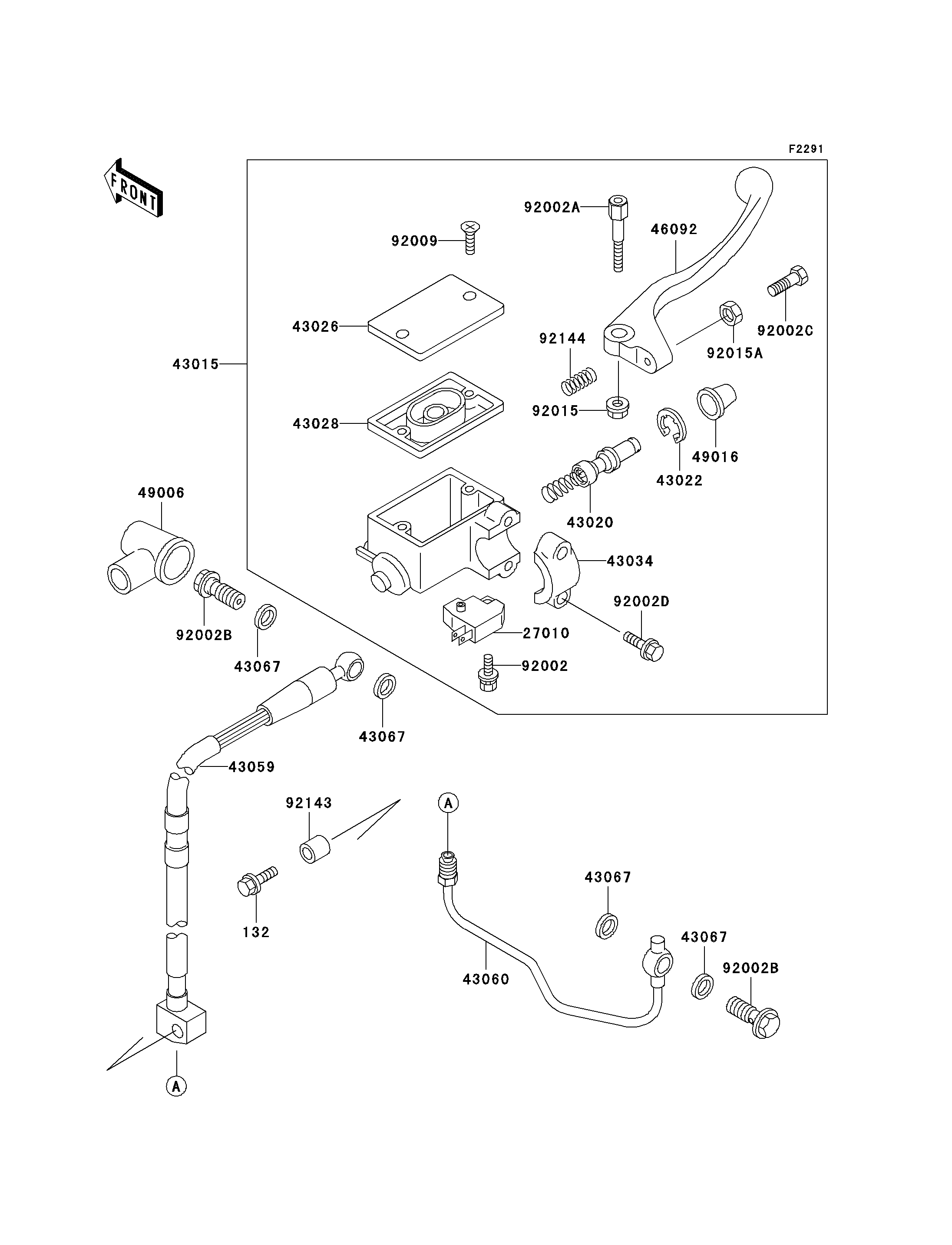

1994 KLX650 - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
27010
43015
43020
43022
43026
43028
43034
43059
43060
43067
43067
43067
43067
46092
49006
49016
92002
92002A
92002B
92002B
92002C
92002D
92009
92015
92015A
92143
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL 132 132G0630 1
SWITCH,BRAKE 27010 27010-1170 1
CYLINDER-ASSY-MASTER,FR 43015 43015-1534 1
PISTON-COMP-BRAKE 43020 43020-1104 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-1074 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
HOSE-BRAKE,FR 43059 43059-1737 1
PIPE-BRAKE,FR 43060 43060-1093 1
WASHER,10.5X15X1.5 43067 43067-001 4
LEVER-GRIP,FRONT BRAKE 46092 46092-1175 1
BOOT,DUST 49006 49006-1040 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT,LEVER SET 92002A 92002-1879 1
BOLT,OIL,L=23 92002B 92002-1888 2
BOLT,ADJUST 92002C 92002-1893 1
BOLT 92002D 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
NUT,ADJUST 92015A 92015-1642 1
COLLAR,6.5X9.5X17 92143 92143-1408 1
SPRING,RETURN 92144 92144-1103 1
