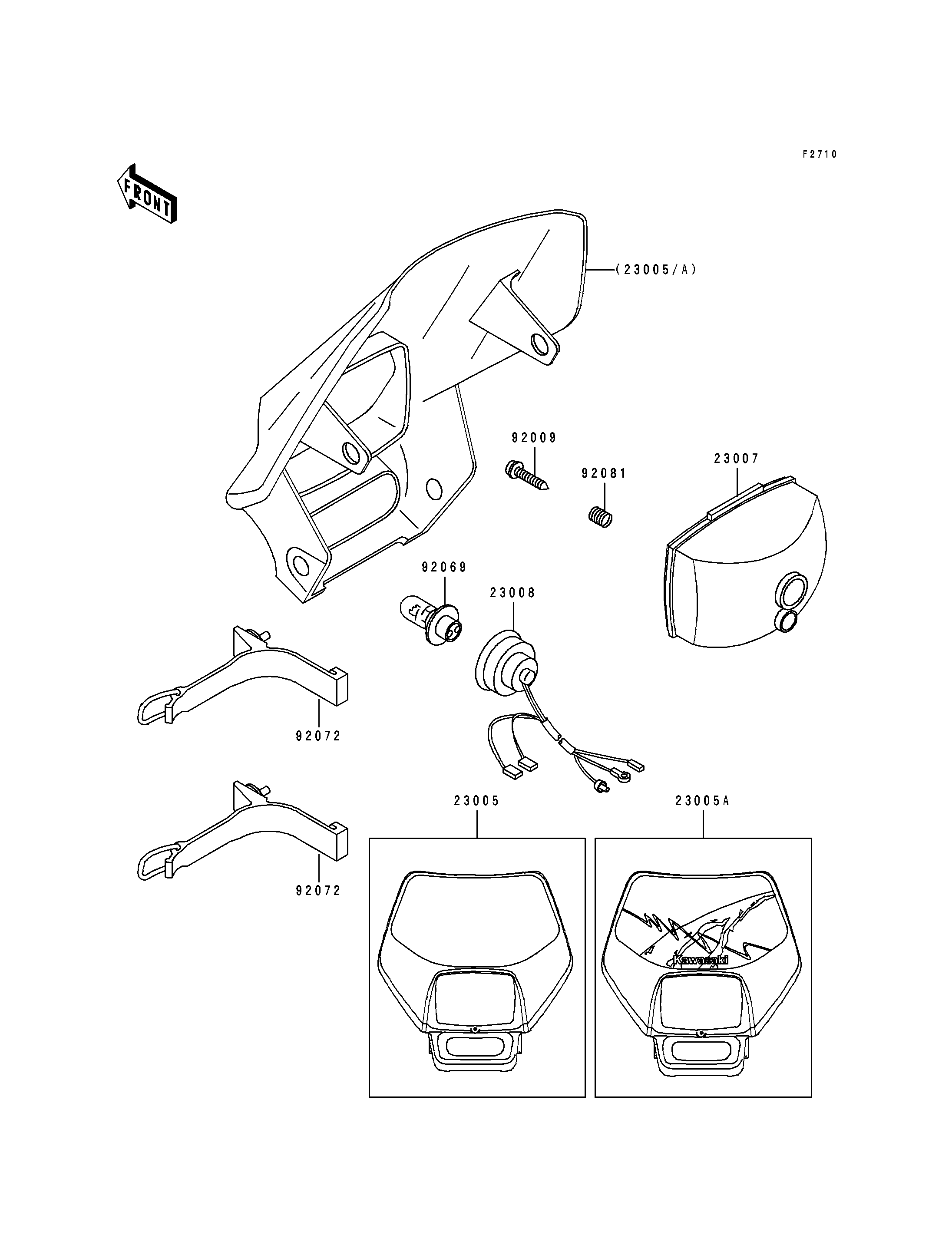

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BODY-COMP-HEAD LAMP,L.GREEN | 23005 | 23005-5022-6W | 1 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-1246 | 1 | ||
| SOCKET-ASSY,HEAD LAMP | 23008 | 23008-1513 | 1 | ||
| SCREW,TAPPING | 92009 | 92009-1695 | 1 | ||
| BULB,12V 30/30W | 92069 | 92069-1080 | 1 | ||
| BAND,HEAD LAMP COVER | 92072 | 92072-1297 | 4 | ||
| SPRING,FOUCUS ADJUSTING | 92081 | 92081-1519 | 1 |
| BODY-COMP-HEAD LAMP,L.GREEN | |
| REF # | 23005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP,HEAD LAMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,HEAD LAMP | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 30/30W | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND,HEAD LAMP COVER | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,FOUCUS ADJUSTING | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
