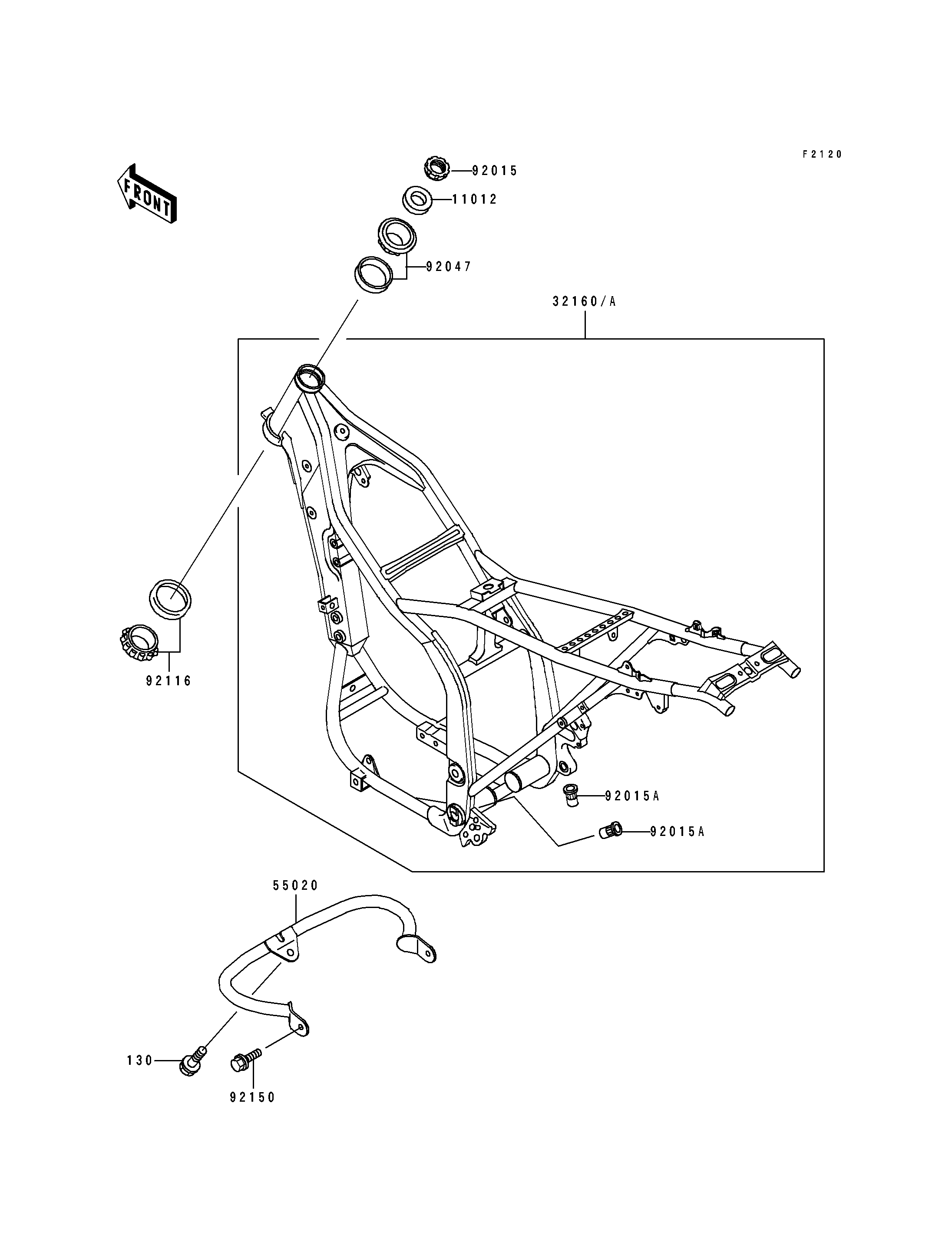

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,STEERING STEM | 11012 | 11012-1762 | 1 | ||
| FRAME-COMP,VIOLET | 32160A | 32160-1364-TY | 1 | ||
| GUARD,ENGINE | 55020 | 55020-1480 | 1 | ||
| NUT,25MM,T=12 | 92015 | 92015-1546 | 1 | ||
| NUT,POP,6MM,L=15 | 92015A | 92015-1791 | 2 | ||
| RACE,ROLLER,32005JR RS | 92047 | 92047-017 | 1 | ||
| BEARING-ROLLER,HI-CAP32006JRRS | 92116 | 92116-1069 | 1 | ||
| BOLT,6X14 | 92150 | 92150-1340 | 2 | ||
| BOLT-FLANGED,8X14 | 130 | 130G0814 | 1 |
| CAP,STEERING STEM | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FRAME-COMP,VIOLET | |
| REF # | 32160A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,ENGINE | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,25MM,T=12 | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,POP,6MM,L=15 | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RACE,ROLLER,32005JR RS | |
| REF # | 92047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-ROLLER,HI-CAP32006JRRS | |
| REF # | 92116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X14 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
