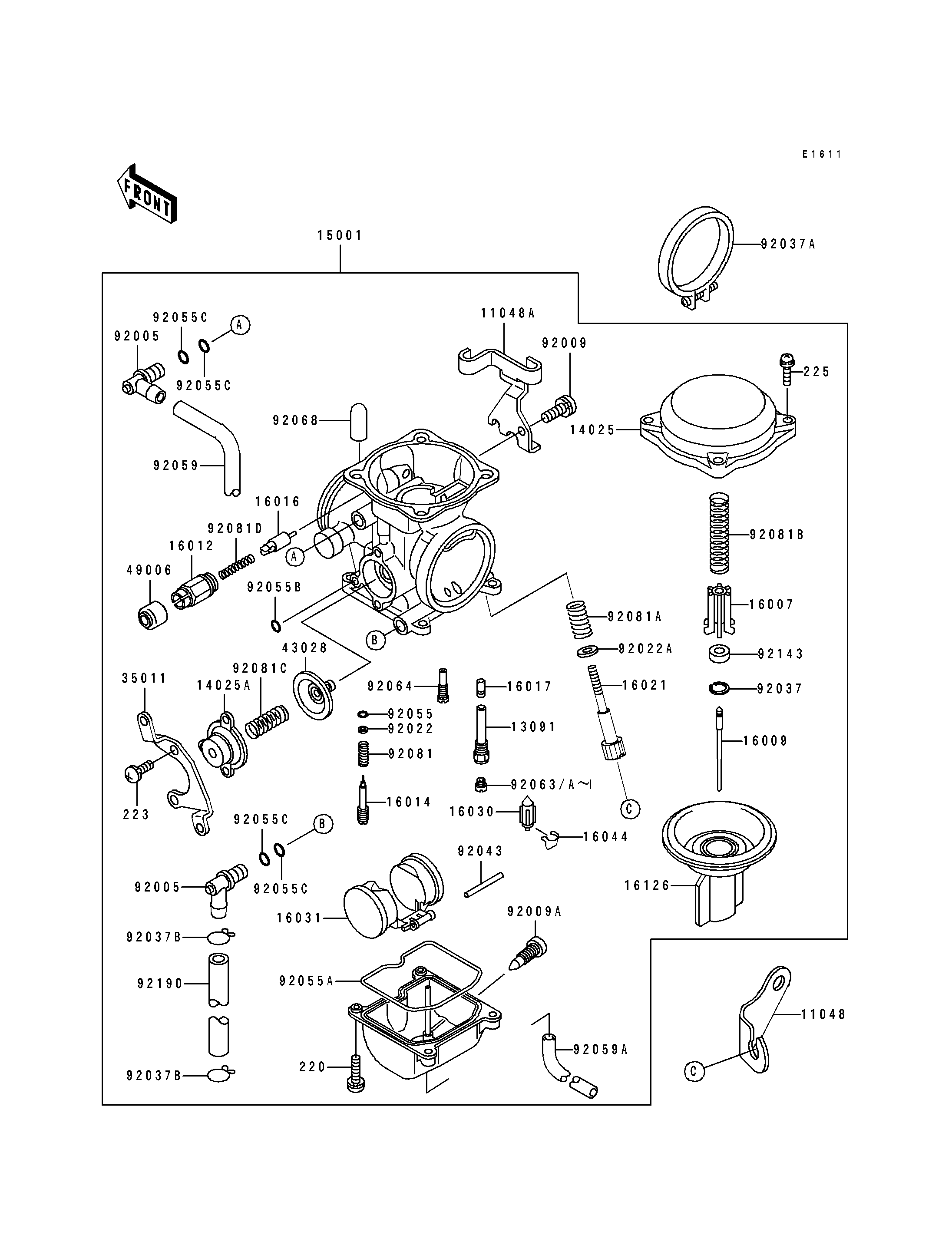

1994 KLX650R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CARBURETOR 11048 11048-1210 1
BRACKET,THROTTLE CABLE 11048A 11048-1275 1
HOLDER,NEEDLE JET 13091 13091-1425 1
COVER,MIXING CHAMBER 14025 14025-1890 1
COVER,AIR CUT VALVE 14025A 14025-1903 1
CARBURETOR-ASSY 15001 15001-1792 1
SEAT-SPRING,DIAPHRAGM VALVE 16007 16007-1113 1
NEEDLE-JET,N1TB 16009 16009-1794 1
CAP-STARTER PLUNGER 16012 16012-1055 1
SCREW-PILOT AIR 16014 16014-1061 1
PLUNGER 16016 16016-1057 1
JET-NEEDLE 16017 16017-1367 1
SCREW-THROTTLE STOP 16021 16021-1145 1
VALVE-FLOAT 16030 16030-1057 1
FLOAT 16031 16031-1056 1
CLAMP,FLOAT VALVE 16044 16044-007 1
VALVE,VACUUM 16126 16126-1278 1
STAY,AIR CUT VALVE 35011 35011-1232 1
DIAPHRAGM,AIR CUT VALVE 43028 43028-1053 1
BOOT,STARTER PLUNGER 49006 49006-1165 1
FITTING,L-TYPE 92005 92005-1120 2
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,M6X0.75 92009A 92009-1551 1
WASHER,PLAIN 92022 92022-1003 1
WASHER,PLAIN,STOP SPRING 92022A 92022-1480 1
CLAMP,JET NEEDLE 92037 92037-1401 1
CLAMP,55MM 92037A 92037-1486 1
CLAMP,TUBE 92037B 92037-1531 2
PIN,FLOAT 92043 92043-1207 1
RING-O,PILOT ADJUST 92055 92055-1002 1
RING-O,FLOAT CHAMBER 92055A 92055-1222 1
RING-O 92055B 92055-1245 1
RING-O 92055C 92055-1246 4
TUBE,6.5X9.5X430 92059 92059-1727 1
TUBE,3.5X6.5X390 92059A 92059-1838 1
JET-MAIN,#140 92063 92063-1013 1 (OFF ROAD USE ONLY)
JET-MAIN,#135 92063A 92063-1014 1
JET-MAIN,#138 92063B 92063-1015 1 (OFF ROAD USE ONLY)
JET-MAIN,#130 92063C 92063-1075 1 (OFF ROAD USE ONLY)
JET-MAIN,#132 92063D 92063-1076 1 (OFF ROAD USE ONLY)
JET-MAIN,#150 92063E 92063-1330 1 (OFF ROAD USE ONLY)
JET-MAIN,#152 92063F 92063-1331 1 (OFF ROAD USE ONLY)
JET-MAIN,#155 92063G 92063-1332 1 (OFF ROAD USE ONLY)
JET-MAIN,#158 92063H 92063-1344 1 (OFF ROAD USE ONLY)
JET-MAIN,#160 92063I 92063-1345 1 (OFF ROAD USE ONLY)
JET-PILOT,#40 92064 92064-1108 1
PLUG,12X25 92068 92068-006 1
SPRING,PILOT ADJUST SCREW 92081 92081-1002 1
SPRING,THROTTLE STOP SCREW 92081A 92081-1617 1
SPRING,DIAPHRAGM VALVE 92081B 92081-1718 1
SPRING,AIR CUT VALVE 92081C 92081-1719 1
SPRING,PLUNGER 92081D 92081-1720 1
COLLAR 92143 92143-1667 1
TUBE,6.5X11.5X160 92190 92190-1473 1
SCREW-PAN-CROS 220 220D0414 4
SCREW-PAN-WS-CROS 223 223C0410 2
SCREW-PAN-WSP-CROS 225 225C0418 4
