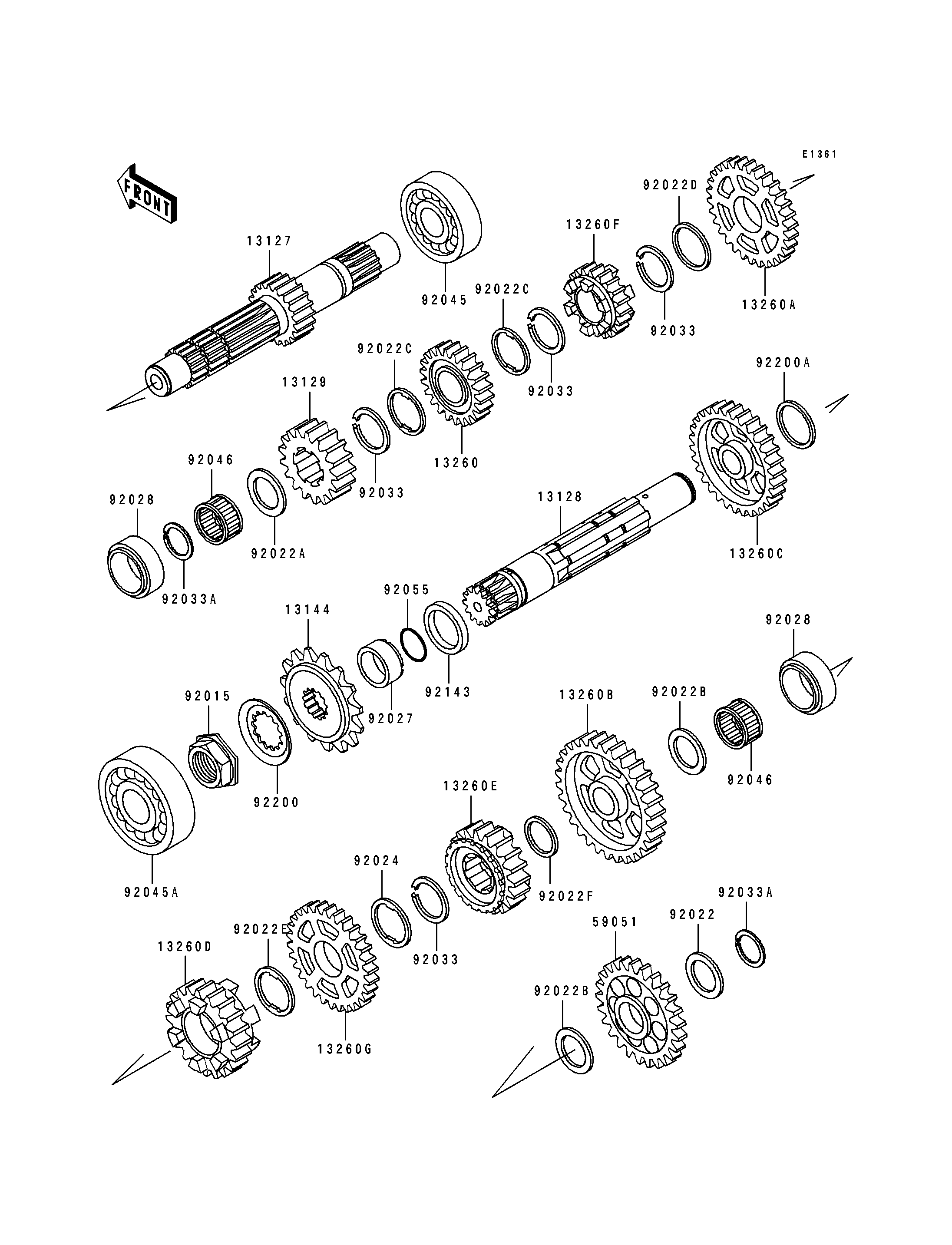

1994 KLX650R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,15T 13127 13127-1220 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1195 1
GEAR,INPUT 2ND,17T 13129 13129-1518 1
SPROCKET-OUTPUT,14T 13144 13144-1207 1
GEAR,INPUT 4TH,22T 13260 13260-1325 1
GEAR,INPUT TOP,24T 13260A 13260-1326 1
GEAR,OUTPUT LOW,34T 13260B 13260-1327 1
GEAR,OUTPUT 2ND,26T 13260C 13260-1328 1
GEAR,OUTPUT 4TH,21T 13260D 13260-1330 1
GEAR,OUTPUT TOP,19T 13260E 13260-1331 1
GEAR,INPUT 3RD,22T 13260F 13260-1383 1
GEAR,OUTPUT 3RD,26T 13260G 13260-1384 1
GEAR-SPUR,KICK IDLE 59051 59051-1299 1
NUT,20MM 92015 92015-1963 1
WASHER,20.3X30X0.7,STEEL 92022 92022-1026 1
WASHER,20.5X30X1,STEEL 92022A 92022-112 1
WASHER,20.3X29X0.5 92022B 92022-1479 2
WASHER,TOOTHED,25.3X29.5X0.5 92022C 92022-1482 2
WASHER,25.3X30X0.5 92022D 92022-159 1
WASHER,25.3X32X0.5 92022E 92022-225 1
WASHER,20.5X25.5X0.5 92022F 92022-252 1
WASHER,TOOTHED,22.5X31X0.5 92024 92024-038 1
COLLAR,25X32X15.3 92027 92027-1800 1
BUSHING 92028 92028-1698 2
RING-SNAP,24MM 92033 92033-026 4
RING-SNAP,18MM 92033A 92033-029 2
BEARING-BALL,TMB205 92045 92045-1105 1
BEARING-BALL,83C356CD3 92045A 92045-1295 1
BEARING-NEEDLE,KT202614 92046 92046-1170 2
RING-O,21.5MM 92055 92055-1293 1
COLLAR 92143 92143-1644 1
WASHER 92200 92200-1065 1
WASHER,2ND GEAR 92200A 92200-1170 1
