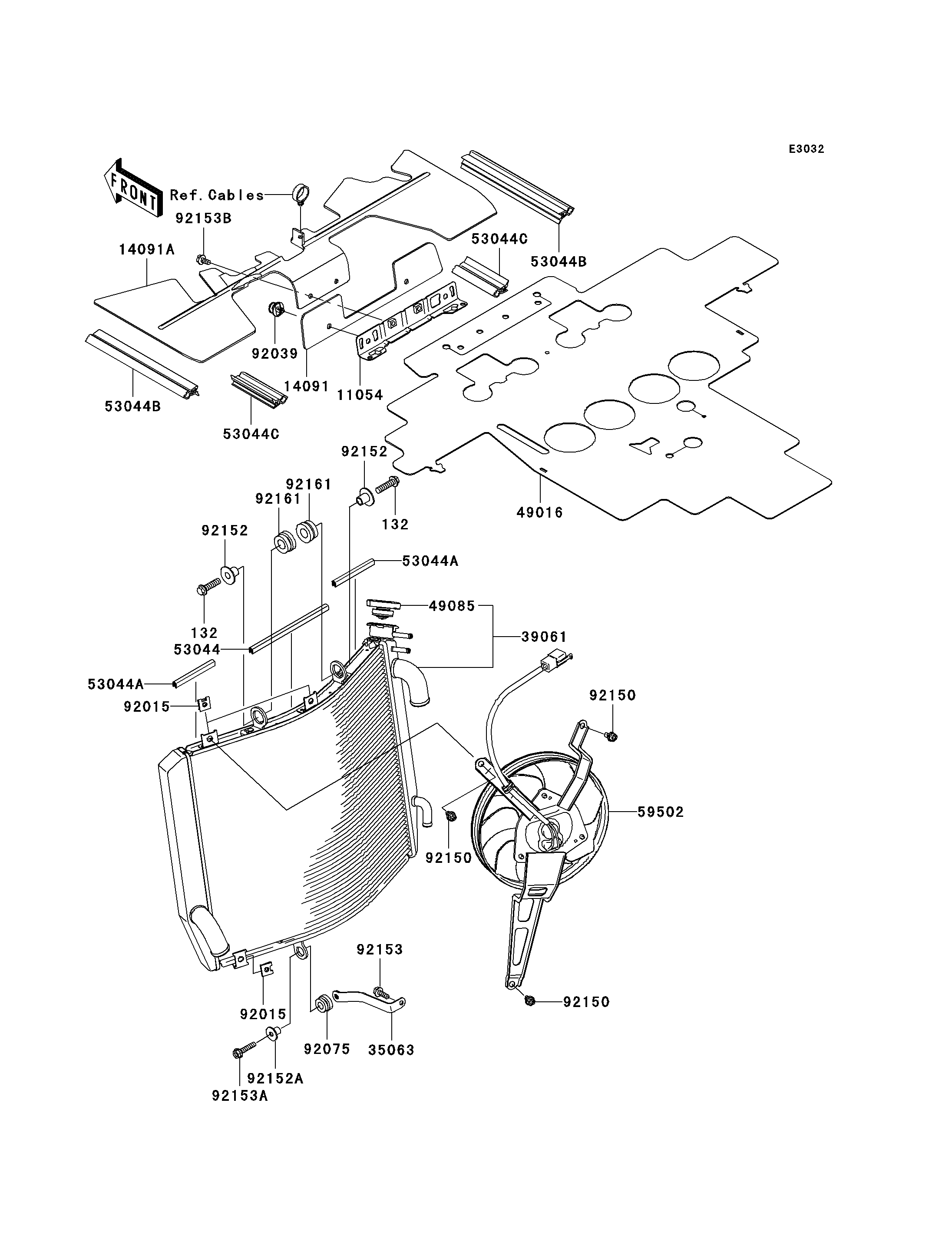

2008 Ninja® ZX™-14 - Radiator

DOWNLOAD PDF
SELECT A NEW PART
132
132
11054
14091
14091A
35063
39061
49016
49085
53044
53044A
53044A
53044B
53044B
53044C
53044C
59502
92015
92015
92039
92075
92150
92150
92150
92152
92152
92152A
92153
92153A
92153B
92161
92161
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,8X30 132 132BC0830 2
BRACKET 11054 11054-0866 1
COVER,HOT WIND 14091 14091-0621 1
COVER,HOT WIND 14091A 14091-0622 1
STAY 35063 35063-0440 1
RADIATOR-ASSY 39061 39061-0080 1
COVER-SEAL,HOT WIND 49016 49016-0048 1
CAP-ASSY-PRESSURE 49085 49085-1066 1
TRIM 53044 53044-0016 1
TRIM 53044A 53044-0018 2
TRIM 53044B 53044-0020 2
TRIM 53044C 53044-1220 2
FAN-ASSY 59502 59502-0036 1
NUT 92015 92015-1487 3
RIVET 92039 92039-0014 2
DAMPER,RUBBER 92075 92075-1123 1
BOLT,6X12 92150 92150-1186 3
COLLAR 92152 92152-0439 2
COLLAR 92152A 92152-0440 1
BOLT-FLANGED,6X16 92153 92153-1584 1
BOLT,FLANGED,6X30 92153A 92153-1590 1
BOLT,FLANGED,6X12 92153B 92153-1660 2
DAMPER 92161 92161-0304 2
