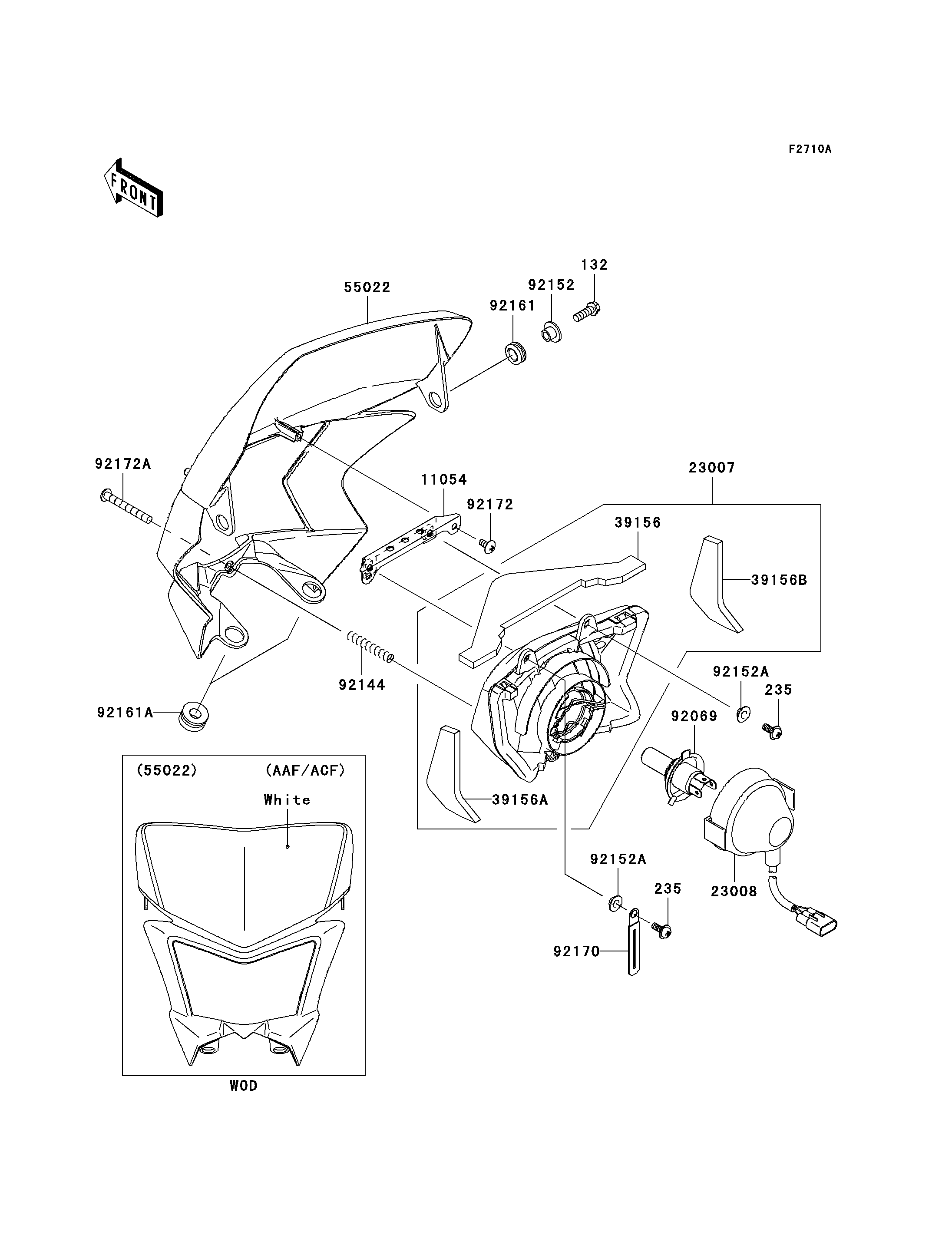

2012 KLX450R (Australian) - Headlight(s)(JKALXGA1_AA013365-)

DOWNLOAD PDF
SELECT A NEW PART
132
235
235
11054
23007
23008
39156
39156A
39156B
55022
92069
92144
92152
92152A
92152A
92161
92161A
92170
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X18 132 132BC0618 2
SCREW-PAN-WP-CROS,5X12 235 235AA0512 2
BRACKET,HEAD LAMP 11054 11054-1069 1
LENS-COMP,HEAD LAMP 23007 23007-0134 1
SOCKET-ASSY,HEAD LAMP 23008 23008-0064 1
PAD,HEAD LAMP,TOP 39156 39156-0267 1
PAD,HEAD LAMP,LH 39156A 39156-0268 1
PAD,HEAD LAMP,RH 39156B 39156-0269 1
COVER-HEAD LAMP,B.WHITE 55022 55022-0038-266 1
BULB,12V 35/35W 92069 92069-1120 1
SPRING 92144 92144-2266 1
COLLAR 92152 92152-0295 2
COLLAR 92152A 92152-0573 2
DAMPER 92161 92161-0266 2
DAMPER 92161A 92161-0537 2
CLAMP 92170 92170-1514 1
SCREW,TAPPING,5X10 92172 92172-0262 2
SCREW,TAPPING,4X40 92172A 92172-0311 1
