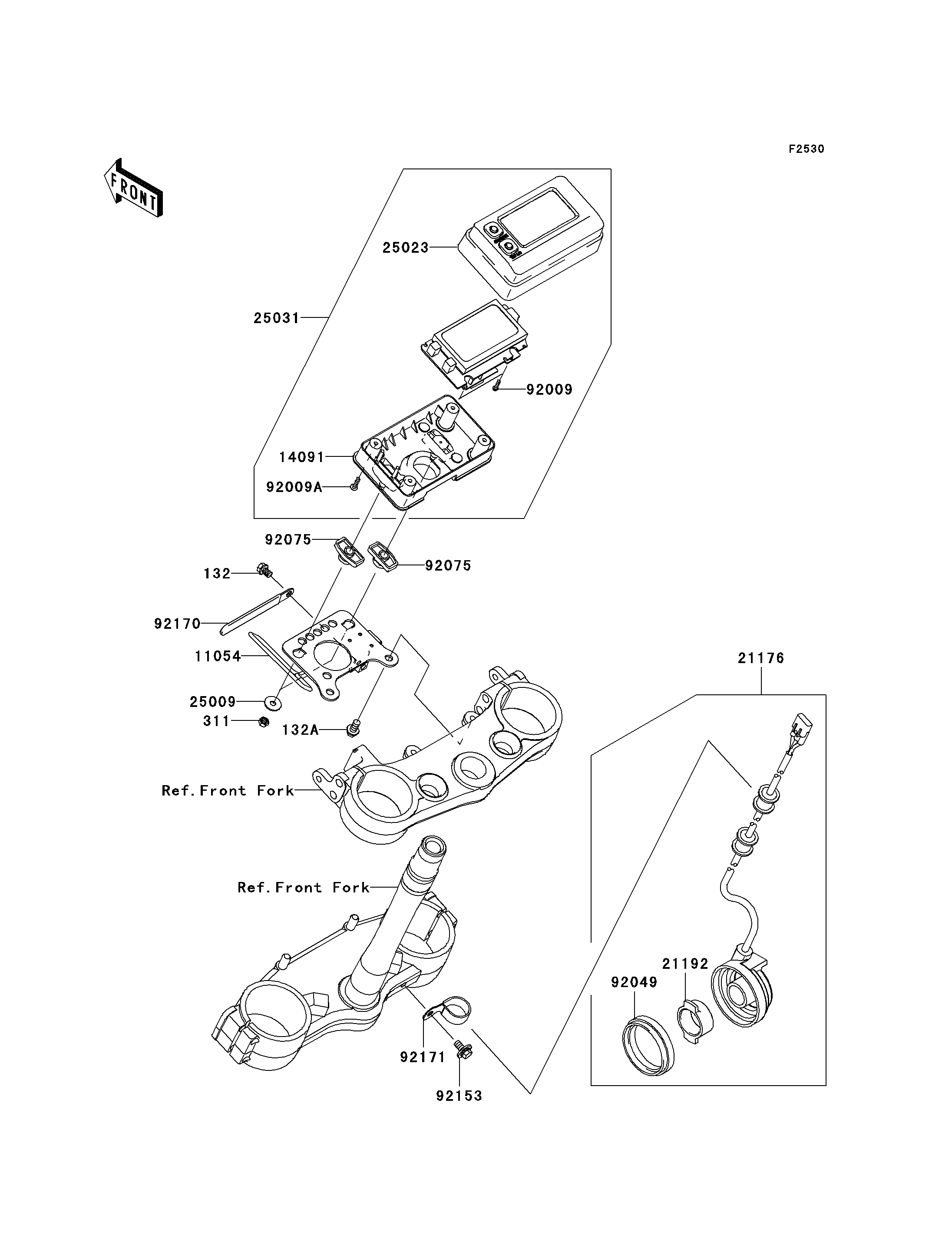

2012 KLX450R (Australian) - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
132
132A
311
11054
14091
21176
21192
25009
25023
25031
92009
92009A
92049
92075
92075
92153
92170
92171
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X8 132 132BB0608 1
BOLT-FLANGED-SMALL,6X12 132A 132BC0612 2
NUT-HEX 311 311AB0500 2
BRACKET 11054 11054-1090 1
COVER,METER,LWR 14091 14091-0806 1
SENSOR,SPEED 21176 21176-0080 1
MAGNET,SPEED SENSOR 21192 21192-0003 1
WASHER,5.2X16X1.2 25009 25009-004 2
COVER-METER CASE,UPP 25023 25023-0033 1
METER-ASSY,LCD,KPH 25031 25031-0180 1
SCREW,TAPPING,3X12 92009 92009-1028 2
SCREW,TAPPING,3X14 92009A 92009-1592 4
SEAL-OIL 92049 92049-0102 1
DAMPER,METER BRACKET 92075 92075-1581 2
BOLT,6X12 92153 92153-0503 1
CLAMP 92170 92170-1925 1
CLAMP 92171 92171-1279 1
