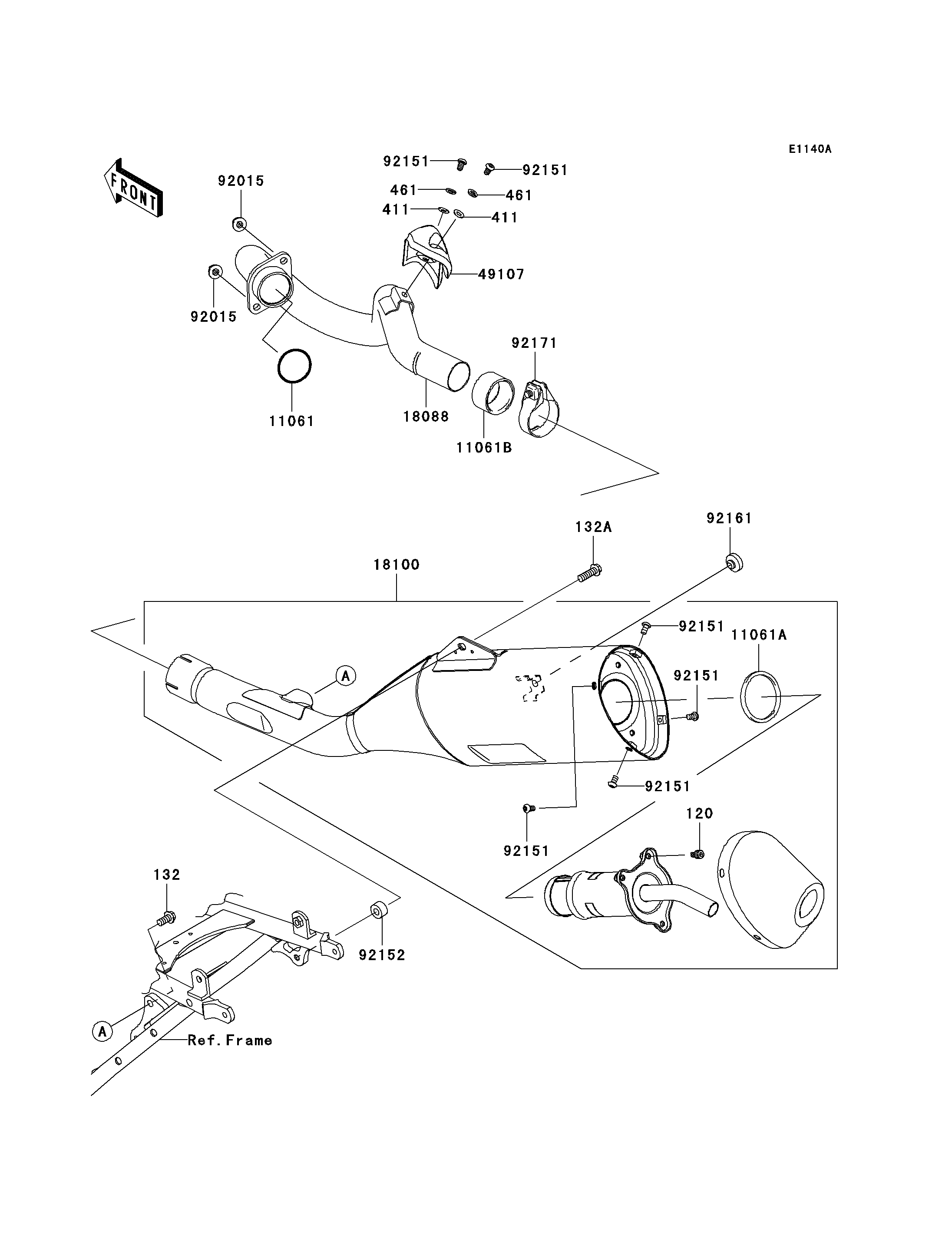

2012 KLX450R (Australian) - Muffler(s)(JKALXGA1 8A006446-)
120
132
132A
411
411
461
461
11061
11061A
11061B
18088
18100
49107
92015
92015
92151
92151
92151
92151
92151
92151
92152
92161
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-SOCKET,6X10 | 120 | 120CA0610 | 3 | ||
| BOLT-FLANGED-SMALL,8X18 | 132 | 132BB0818 | 1 | ||
| BOLT-FLANGED-SMALL,8X25 | 132A | 132BB0825 | 1 | ||
| WASHER-PLAIN,6MM | 411 | 411S0600 | 2 | ||
| WASHER-SPRING,6MM | 461 | 461S0600 | 2 | ||
| GASKET,38.9X46.4X3.0 | 11061 | 11061-0082 | 1 | ||
| GASKET | 11061A | 11061-0100 | 1 | ||
| GASKET,38.1X48.7X32 | 11061B | 11061-0285 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-0371 | 1 | ||
| BODY-ASSY-MUFFLER | 18100 | 18100-0073 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-0109 | 1 | ||
| NUT,8MM | 92015 | 92015-1402 | 2 | ||
| BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 6 | ||
| COLLAR | 92152 | 92152-3726 | 1 | ||
| DAMPER,8X22X6 | 92161 | 92161-0516 | 1 | ||
| CLAMP | 92171 | 92171-0653 | 1 |
| BOLT-SOCKET,6X10 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,8X18 | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL,8X25 | |
| REF # | 132A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,6MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,38.9X46.4X3.0 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,38.1X48.7X32 | |
| REF # | 11061B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE-EXHAUST | |
| REF # | 18088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-ASSY-MUFFLER | |
| REF # | 18100 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-EXHAUST PIPE | |
| REF # | 49107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,8X22X6 | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
