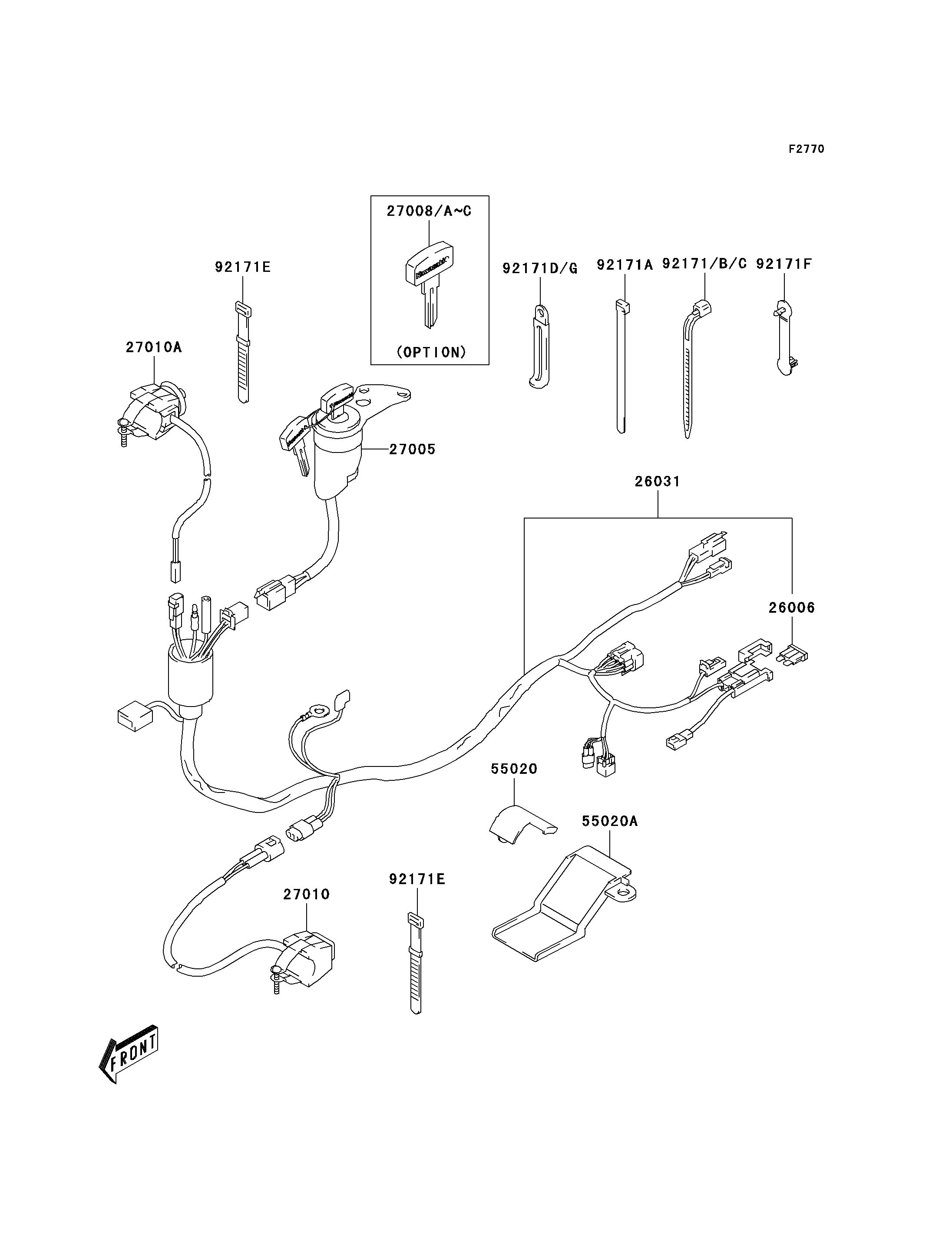

2003 KLX400R - Ignition Switch

DOWNLOAD PDF
SELECT A NEW PART
26006
26031
27005
27008
27008A
27008B
27008C
27010
27010A
55020
55020A
92171
92171A
92171B
92171C
92171D
92171E
92171E
92171F
92171G
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FUSE,10A 26006 26006-S007 2
HARNESS 26031 26031-S005 1
SWITCH-ASSY-IGNITION 27005 27005-S007 1
KEY-LOCK,BLANK (TYPE:C) 27008 27008-S008 1 (OPTION)
KEY-LOCK,BLANK (TYPE:D) 27008A 27008-S009 1 (OPTION)
KEY-LOCK,BLANK (TYPE:E) 27008B 27008-S010 1 (OPTION)
KEY-LOCK,BLANK (TYPE:F) 27008C 27008-S011 1 (OPTION)
SWITCH 27010 27010-S013 1
SWITCH,STARTER 27010A 27010-S035 1
GUARD,WIRING HARNESS 55020 55020-S022 1
GUARD,WIRING HARNESS 55020A 55020-S023 1
CLAMP,L=125 92171 92171-S014 6
CLAMP,L=145 92171A 92171-S015 1
CLAMP,L=165 92171B 92171-S016 2
CLAMP,L=235 92171C 92171-S018 2
CLAMP,L=65 92171D 92171-S033 2
CLAMP,L=120 92171E 92171-S035 2
CLAMP 92171F 92171-S108 1
CLAMP,OIL HOSE NO.2 92171G 92171-S132 1
