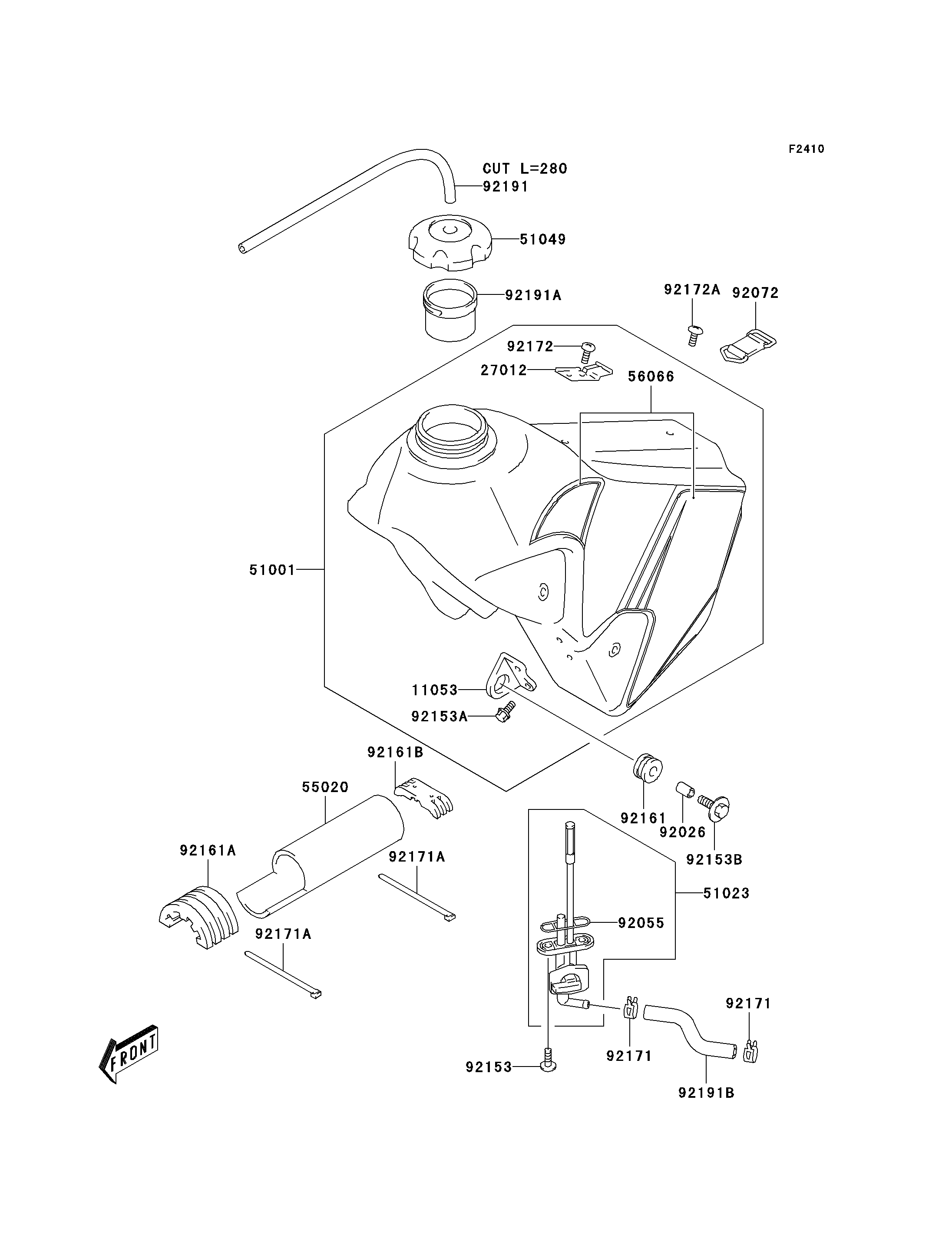

2003 KLX400R - Fuel Tank(KLX400-B1)

DOWNLOAD PDF
SELECT A NEW PART
11053
27012
51001
51023
51049
55020
56066
92026
92055
92072
92153
92153A
92153B
92161
92161A
92161B
92171
92171
92171A
92171A
92172
92172A
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FUEL TANK,FR 11053 11053-S001 2
HOOK 27012 27012-S004 1
TANK-COMP-FUEL,BLACK 51001 51001-S012-539 1
TAP-ASSY 51023 51023-S011 1
CAP-TANK 51049 51049-S004 1
GUARD,FUEL TANK 55020 55020-S027 1
PATTERN SET,FUEL TANK,WHT/BLK/GRN 56066 56066-S017-568 1
SPACER,FUEL TANK,FR 92026 92026-S049 2
RING-O,TAP 92055 92055-S090 1
BAND,FUEL TANK,RR 92072 92072-S004 1
BOLT 92153 92153-S001 2
BOLT 92153A 92153-S144 4
BOLT 92153B 92153-S367 2
DAMPER,FUEL TANK 92161 92161-S061 2
DAMPER,FUEL TANK,UPP 92161A 92161-S131 1
DAMPER 92161B 92161-S146 1
CLAMP 92171 92171-S005 2
CLAMP,FUEL TANK CUSHION 92171A 92171-S056 2
SCREW 92172 92172-S017 1
SCREW 92172A 92172-S055 1
TUBE,FUEL TANK BREATHER 92191 92191-S028 1
TUBE,FUEL TANK FILLER 92191A 92191-S029 1
TUBE 92191B 92191-S087 1
