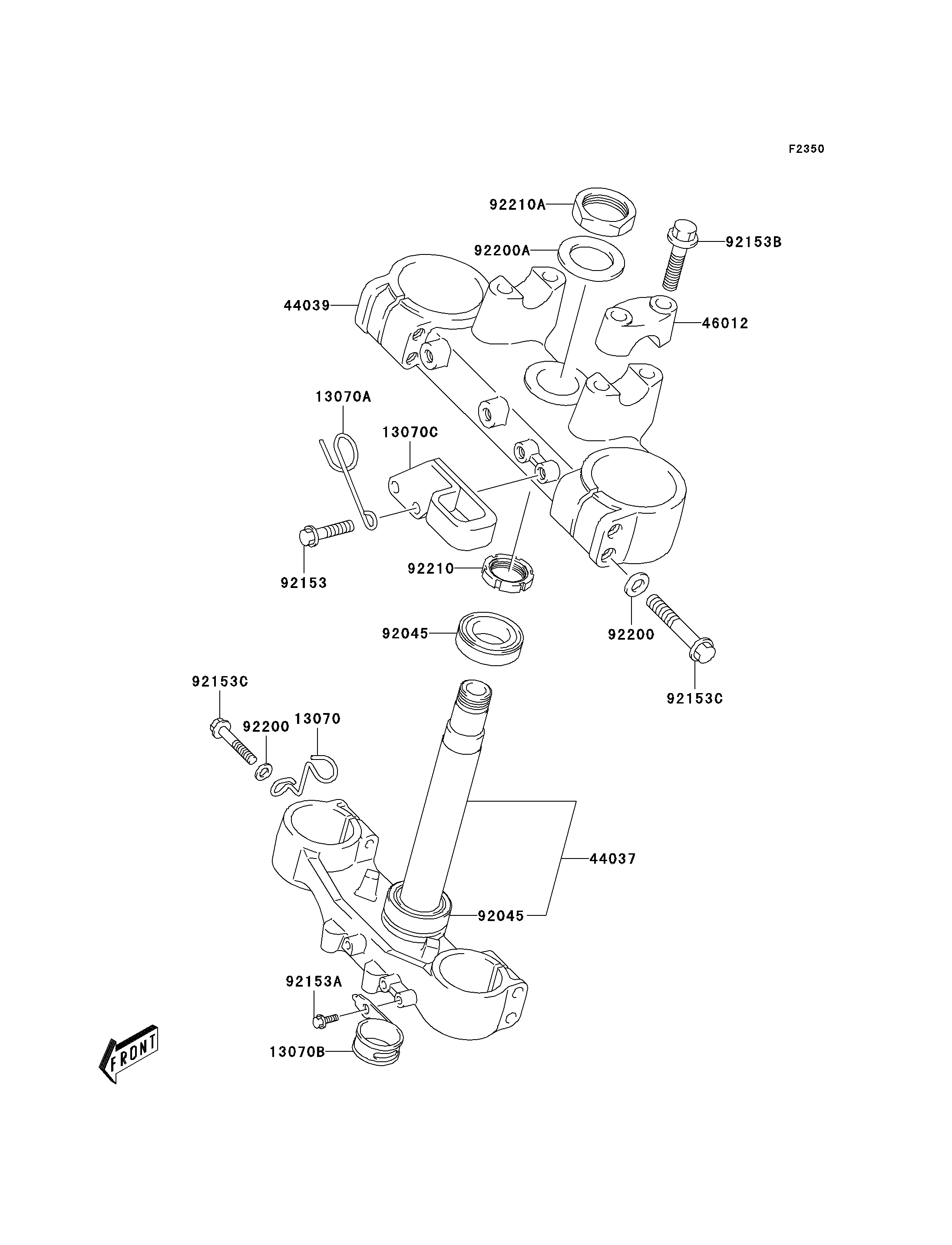

2003 KLX400R - Under Bracket

DOWNLOAD PDF
SELECT A NEW PART
13070
13070A
13070B
13070C
44037
44039
46012
92045
92045
92153
92153A
92153B
92153C
92153C
92200
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,SPEEDOMETER CABLE 13070 13070-S023 1
GUIDE,CLUTCH CABLE 13070A 13070-S026 1
GUIDE,CABLE 13070B 13070-S028 1
GUIDE,HOSE 13070C 13070-S029 1
HOLDER-FORK UNDER 44037 44037-S006 1
HOLDER-FORK UPPER 44039 44039-S005 1
HOLDER-HANDLE 46012 46012-S004 2
BEARING-BALL,30X52X16 92045 92045-S058 2
BOLT 92153 92153-S061 2
BOLT,6X10 92153A 92153-S331 1
BOLT,8X35 92153B 92153-S351 4
BOLT 92153C 92153-S352 8
WASHER 92200 92200-S179 8
WASHER 92200A 92200-S198 1
NUT,STEERING 92210 92210-S131 1
NUT 92210A 92210-S141 1
