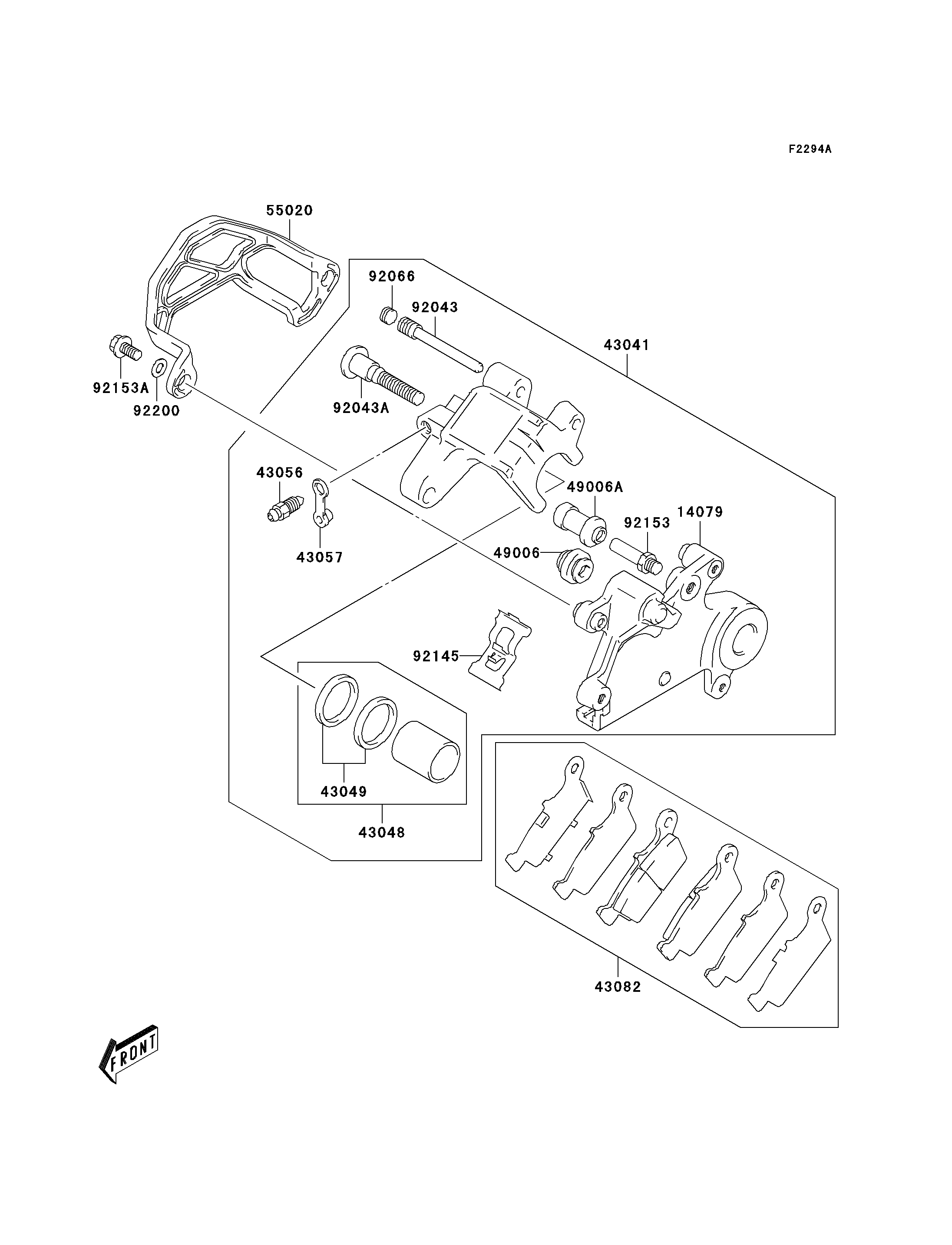

2004 KLX400R (Canada Only) - Rear Brake(KLX400-B2)

DOWNLOAD PDF
SELECT A NEW PART
14079
43041
43048
43049
43056
43057
43082
49006
49006A
55020
92043
92043A
92066
92145
92153
92153A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-ASSY 14079 14079-S003 1
CALIPER-ASSY,RR 43041 43041-S018 1
PISTON-CALIPER 43048 43048-S007 1
PACKING 43049 43049-S013 1
BREATHER-BRAKE 43056 43056-S002 1
CAP-BREATHER,BLEEDER 43057 43057-S002 1
PAD-ASSY-BRAKE 43082 43082-S012 1
BOOT 49006 49006-S006 1
BOOT 49006A 49006-S007 1
GUARD,CALIPER 55020 55020-S031 1
PIN 92043 92043-S051 1
PIN 92043A 92043-S053 1
PLUG 92066 92066-S037 1
SPRING,PAD 92145 92145-S136 1
BOLT 92153 92153-S118 1
BOLT 92153A 92153-S144 2
WASHER 92200 92200-S003 2
