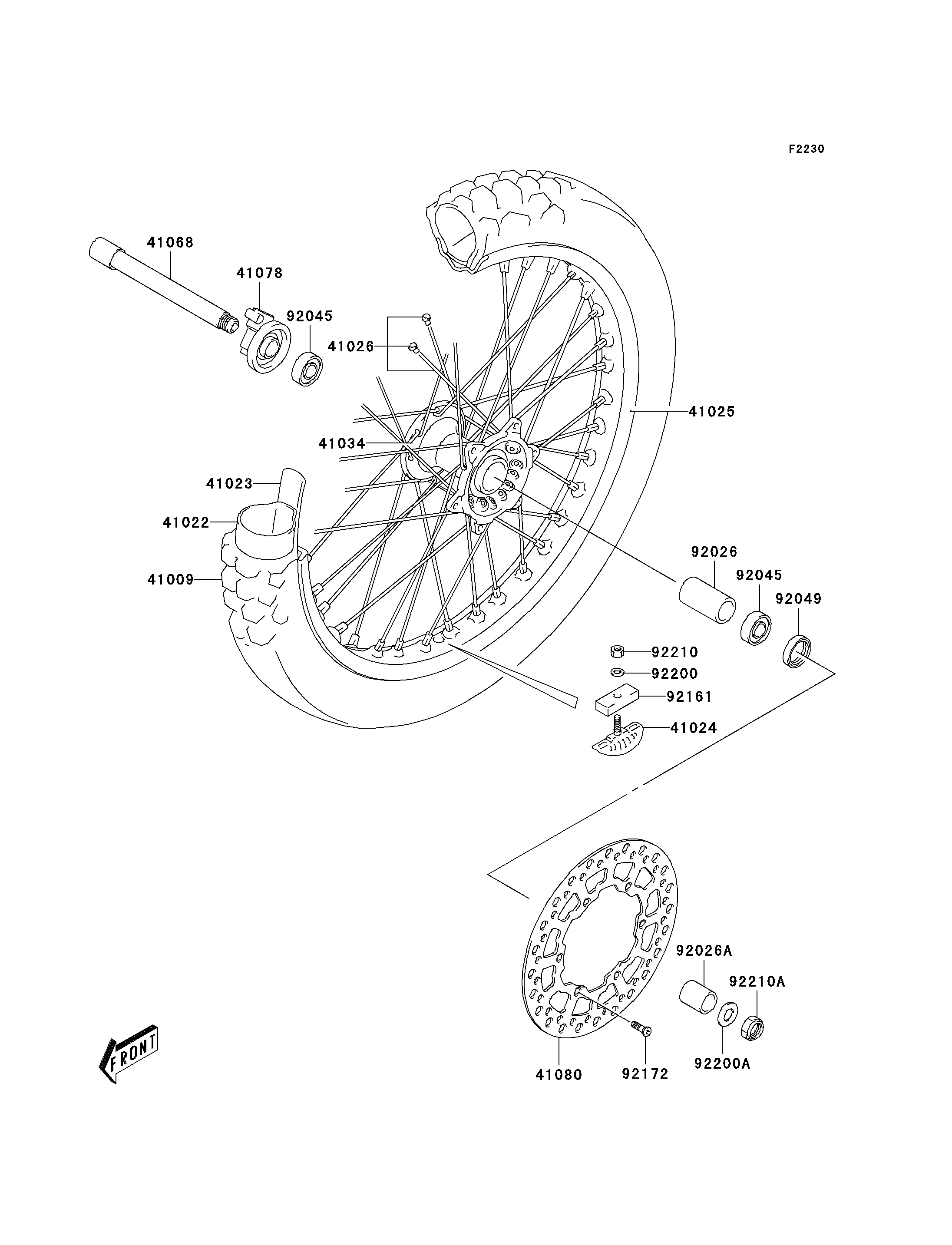

2003 KLX400R - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
41009
41022
41023
41024
41025
41026
41034
41068
41078
41080
92026
92026A
92045
92045
92049
92161
92172
92200
92200A
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE,80/100-21 51P(D) 41009 41009-S017 1
TUBE-TIRE 41022 41022-S008 1
BAND-RIM 41023 41023-S008 1
STOPPER-RIM 41024 41024-S002 1
RIM,1.60X21 41025 41025-S013 1
SPOKE-ASSY 41026 41026-S008 1
DRUM-ASSY 41034 41034-S009 1
AXLE,FR 41068 41068-S012 1
CASE-ASSY-METER GEAR 41078 41078-S002 1
DISC 41080 41080-S009 1
SPACER,20.5X27.3X70 92026 92026-S128 1
SPACER 92026A 92026-S129 1
BEARING-BALL 92045 92045-S061 2
SEAL-OIL,25X37X6 92049 92049-S059 1
DAMPER 92161 92161-S144 1
SCREW,6X17.5 92172 92172-S210 6
WASHER 92200 92200-S028 1
WASHER 92200A 92200-S199 1
NUT 92210 92210-S051 1
NUT 92210A 92210-S132 1
