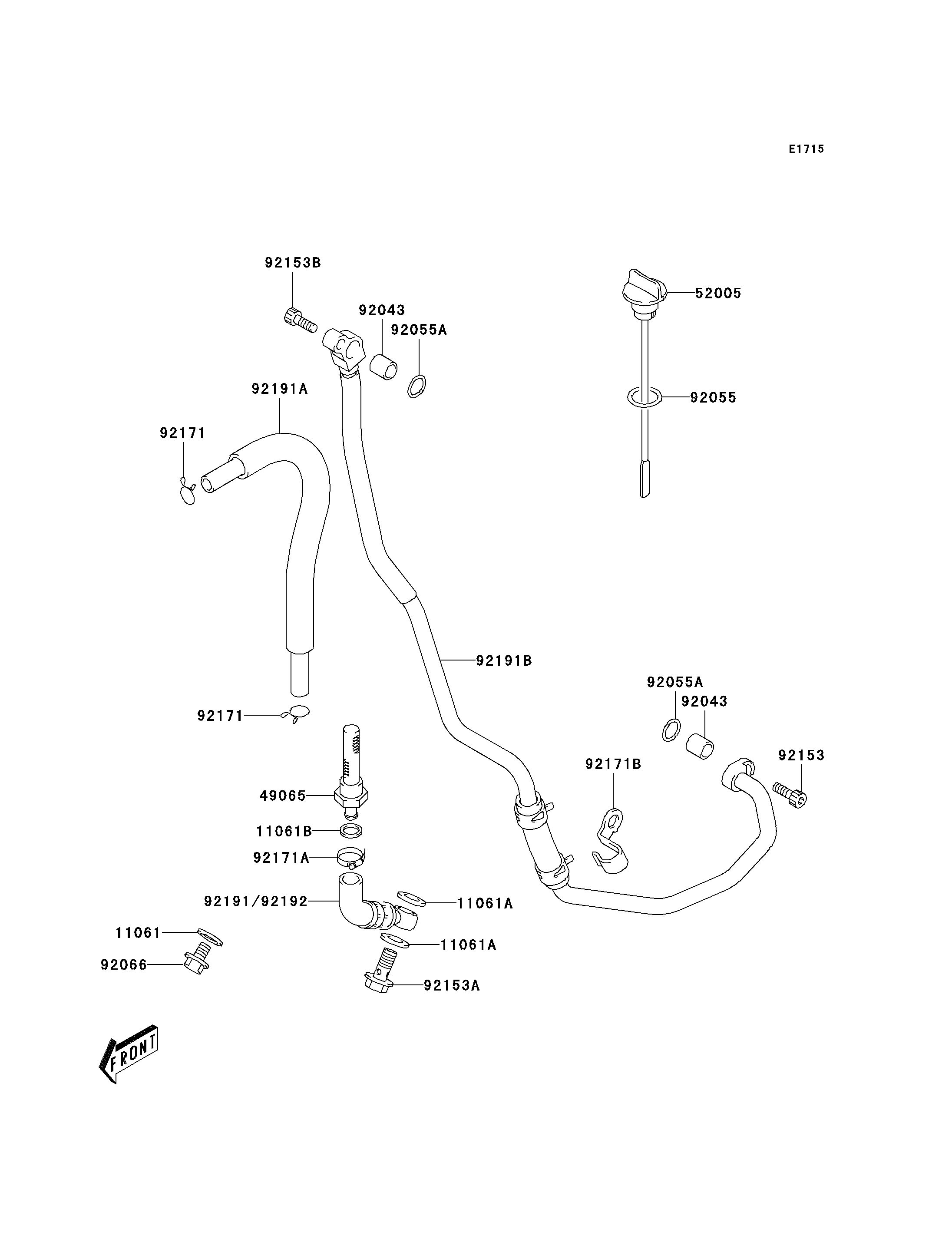

2003 KLX400R - Oil Hose

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
11061A
11061B
49065
52005
92043
92043
92055
92055A
92055A
92066
92153
92153A
92153B
92171
92171
92171A
92171B
92191
92191A
92191B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,10X14X3.6 11061 11061-S021 1
GASKET,14X20X1.5 11061A 11061-S065 2
GASKET,STRAINER 11061B 11061-S088 1
FILTER-OIL 49065 49065-S005 1
GAUGE,OIL LEVEL 52005 52005-S007 1
PIN,CRANKCASE 92043 92043-S024 2
RING-O,D=3.1 92055 92055-S006 1
RING-O,OIL HOSE 92055A 92055-S054 2
PLUG,OIL DRAIN 92066 92066-S036 1
BOLT 92153 92153-S168 1
BOLT,OIL HOSE,14X27 92153A 92153-S289 1
BOLT 92153B 92153-S337 1
CLAMP 92171 92171-S085 2
CLAMP,OIL HOSE 92171A 92171-S115 1
CLAMP 92171B 92171-S121 1
TUBE,OIL TANK,RH 92191 92191-S071 1
TUBE,OIL TANK OVER FLOW 92191A 92191-S073 1
TUBE,OIL TANK,LH 92191B 92191-S085 1
