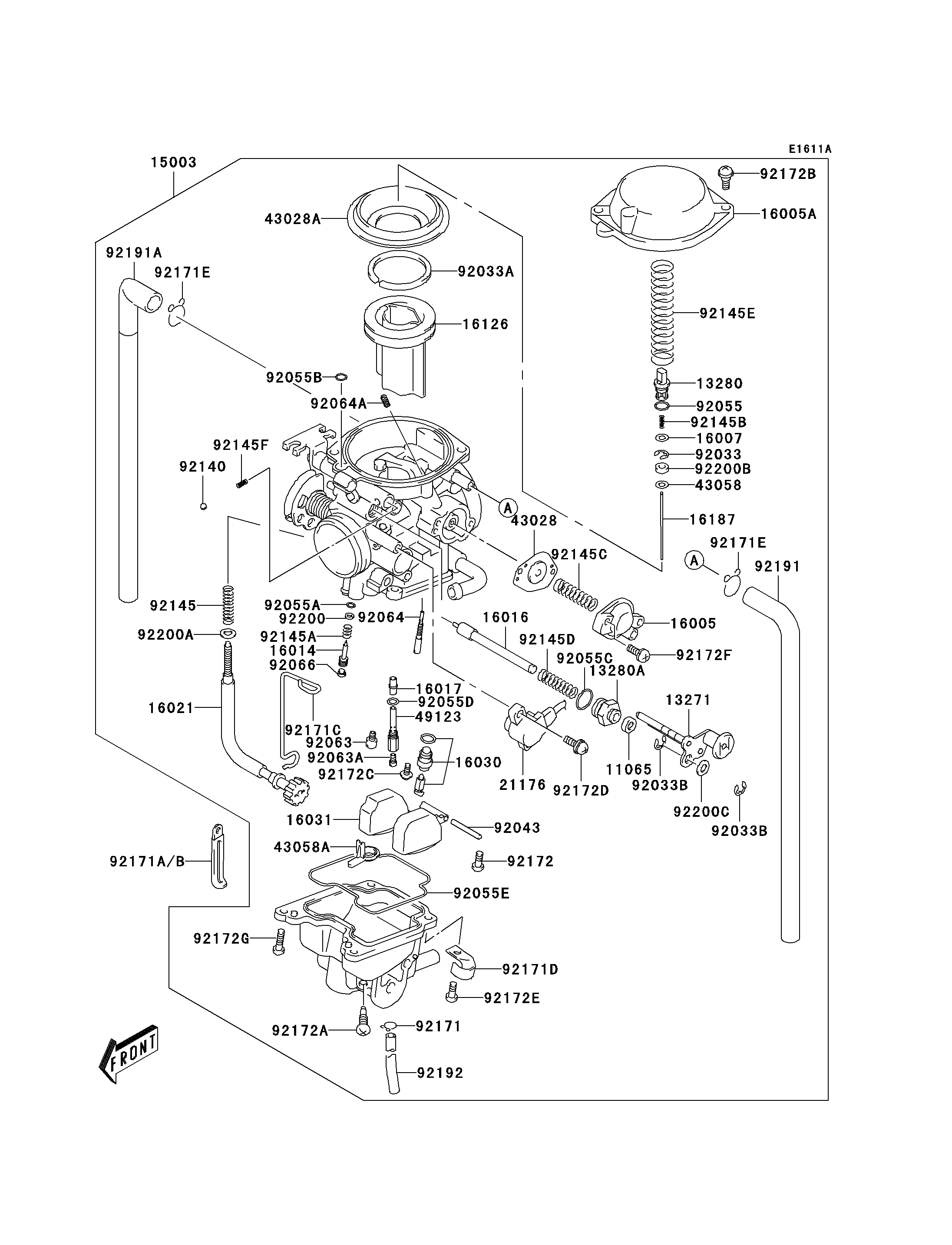

2004 KLX400R (Canada Only) - Carburetor(4/4)(CA)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11065 11065-S031 1 CA
PLATE 13271 13271-S056 1 CA
HOLDER 13280 13280-S002 1 CA
HOLDER 13280A 13280-S021 1 CA
CARBURETOR-ASSY 15003 15003-S014 1 CA
TOP-CHAMBER 16005 16005-S004 1 CA
TOP-CHAMBER,DIAPHRAGM 16005A 16005-S006 1 CA
SEAT-SPRING 16007 16007-S005 1 CA
SCREW-PILOT AIR 16014 16014-S009 1 CA
PLUNGER 16016 16016-S008 1 CA
JET-NEEDLE 16017 16017-S008 1 CA
SCREW-THROTTLE STOP 16021 16021-S006 1 CA
VALVE-FLOAT 16030 16030-S008 1 CA
FLOAT 16031 16031-S006 1 CA
VALVE 16126 16126-S010 1 CA
NEEDLE-JET 16187 16187-S011 1 CA
SENSOR 21176 21176-S001 1 CA
DIAPHRAGM 43028 43028-S008 1 CA
DIAPHRAGM 43028A 43028-S011 1 CA
RING 43058 43058-S001 1 CA
RING 43058A 43058-S007 1 CA
HOLDER-MAIN JET 49123 49123-S006 1 CA
RING-SNAP,MULTIPLE JET 92033 92033-S008 1 CA
RING-SNAP 92033A 92033-S041 1 CA
RING-SNAP 92033B 92033-S046 2 CA
PIN 92043 92043-S034 1 CA
RING-O,ID:4.8 92055 92055-S003 1 CA
RING-O 92055A 92055-S013 1 CA
RING-O 92055B 92055-S044 1 CA
RING-O 92055C 92055-S048 1 CA
RING-O 92055D 92055-S049 1 CA
RING-O 92055E 92055-S058 1 CA
JET-MAIN,#62.5 92063 92063-S011 1 CA
JET-MAIN 92063A 92063-S016 1 CA
JET-PILOT,#22.5 92064 92064-S008 1 CA
JET-PILOT 92064A 92064-S012 1 CA
PLUG 92066 92066-S027 1 CA
BALL 92140 92140-S005 1 CA
SPRING,THROTTLE SCREW 92145 92145-S009 1 CA
SPRING,THROTTLE SCREW 92145A 92145-S010 1 CA
SPRING 92145B 92145-S097 1 CA
SPRING 92145C 92145-S098 1 CA
SPRING 92145D 92145-S113 1 CA
SPRING 92145E 92145-S125 1 CA
SPRING 92145F 92145-S127 1 CA
CLAMP 92171 92171-S001 1 CA
CLAMP,CARB OVERFLOW HOSE 92171A 92171-S012 1 CA
CLAMP,WIRING HARNESS 92171B 92171-S081 1 CA
CLAMP 92171C 92171-S110 1 CA
CLAMP 92171D 92171-S111 2 CA
CLAMP 92171E 92171-S130 2 CA
SCREW 92172 92172-S002 1 CA
SCREW,DRAIN 92172A 92172-S046 1 CA
SCREW 92172B 92172-S047 2 CA
SCREW 92172C 92172-S048 1 CA
SCREW 92172D 92172-S049 2 CA
SCREW 92172E 92172-S057 3 CA
SCREW 92172F 92172-S139 2 CA
SCREW 92172G 92172-S145 1 CA
TUBE,AIR VENT 92191 92191-S069 1 CA
TUBE 92191A 92191-S079 1 CA
TUBE 92192 92192-S020 1 CA
WASHER 92200 92200-S019 1 CA
WASHER 92200A 92200-S021 1 CA
WASHER 92200B 92200-S083 1 CA
WASHER 92200C 92200-S181 1 CA
