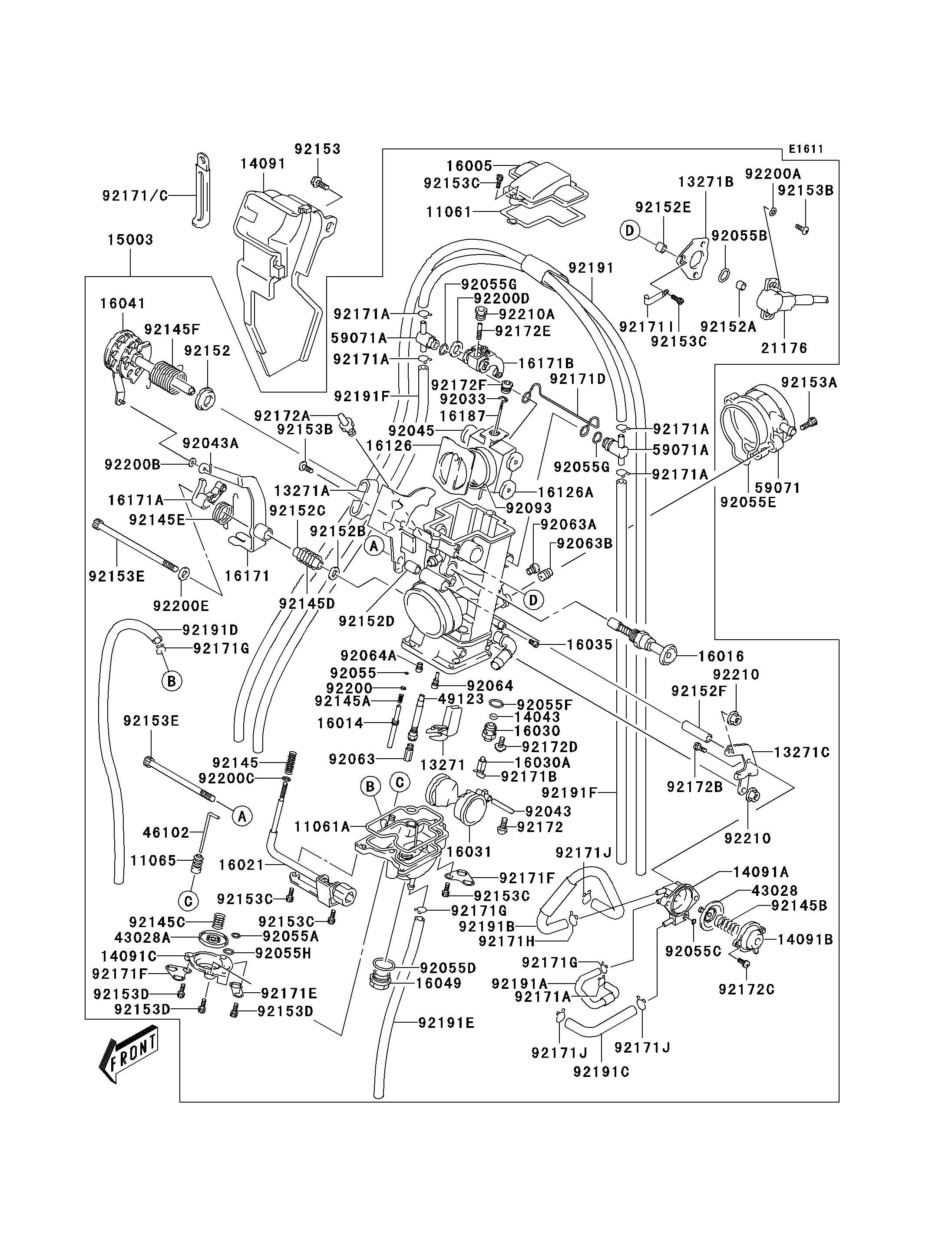

2003 KLX400R - Carburetor(5/5)(CN,US)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061
11061
11061
11061
11061A
11061A
11061A
11061A
11061A
11065
11065
11065
11065
11065
13271
13271
13271
13271
13271
13271A
13271A
13271A
13271A
13271A
13271B
13271B
13271B
13271B
13271B
13271C
13271C
13271C
13271C
13271C
14043
14043
14043
14043
14043
14091
14091
14091
14091
14091
14091A
14091A
14091A
14091A
14091A
14091B
14091B
14091B
14091B
14091B
14091C
14091C
14091C
14091C
14091C
15003
15003
15003
15003
15003
16005
16005
16005
16005
16005
16014
16014
16014
16014
16014
16016
16016
16016
16016
16016
16021
16021
16021
16021
16021
16030
16030
16030
16030
16030
16030A
16030A
16030A
16030A
16030A
16031
16031
16031
16031
16031
16035
16035
16035
16035
16035
16041
16041
16041
16041
16041
16049
16049
16049
16049
16049
16126
16126
16126
16126
16126
16126A
16126A
16126A
16126A
16126A
16171
16171
16171
16171
16171
16171A
16171A
16171A
16171A
16171A
16171B
16171B
16171B
16171B
16171B
16187
16187
16187
16187
16187
21176
21176
21176
21176
21176
43028
43028
43028
43028
43028
43028A
43028A
43028A
43028A
43028A
46102
46102
46102
46102
46102
49123
49123
49123
49123
49123
59071
59071
59071
59071
59071
59071A
59071A
59071A
59071A
59071A
59071A
59071A
59071A
59071A
59071A
92033
92033
92033
92033
92033
92043
92043
92043
92043
92043
92043A
92043A
92043A
92043A
92043A
92045
92045
92045
92045
92045
92055
92055
92055
92055
92055
92055A
92055A
92055A
92055A
92055A
92055B
92055B
92055B
92055B
92055B
92055C
92055C
92055C
92055C
92055C
92055D
92055D
92055D
92055D
92055D
92055E
92055E
92055E
92055E
92055E
92055F
92055F
92055F
92055F
92055F
92055G
92055G
92055G
92055G
92055G
92055G
92055G
92055G
92055G
92055G
92055H
92055H
92055H
92055H
92055H
92063
92063
92063
92063
92063
92063A
92063A
92063A
92063A
92063A
92063B
92063B
92063B
92063B
92063B
92064
92064
92064
92064
92064
92064A
92064A
92064A
92064A
92064A
92093
92093
92093
92093
92093
92145
92145
92145
92145
92145
92145A
92145A
92145A
92145A
92145A
92145B
92145B
92145B
92145B
92145B
92145C
92145C
92145C
92145C
92145C
92145D
92145D
92145D
92145D
92145D
92145E
92145E
92145E
92145E
92145E
92145F
92145F
92145F
92145F
92145F
92152
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92152B
92152C
92152C
92152C
92152C
92152C
92152D
92152D
92152D
92152D
92152D
92152E
92152E
92152E
92152E
92152E
92152F
92152F
92152F
92152F
92152F
92153
92153
92153
92153
92153
92153A
92153A
92153A
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153C
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153D
92153E
92153E
92153E
92153E
92153E
92153E
92153E
92153E
92153E
92153E
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171A
92171B
92171B
92171B
92171B
92171B
92171C
92171C
92171C
92171C
92171C
92171D
92171D
92171D
92171D
92171D
92171E
92171E
92171E
92171E
92171E
92171F
92171F
92171F
92171F
92171F
92171F
92171F
92171F
92171F
92171F
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171G
92171H
92171H
92171H
92171H
92171H
92171I
92171I
92171I
92171I
92171I
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92171J
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172C
92172C
92172C
92172C
92172C
92172D
92172D
92172D
92172D
92172D
92172E
92172E
92172E
92172E
92172E
92172F
92172F
92172F
92172F
92172F
92191
92191
92191
92191
92191
92191A
92191A
92191A
92191A
92191A
92191B
92191B
92191B
92191B
92191B
92191C
92191C
92191C
92191C
92191C
92191D
92191D
92191D
92191D
92191D
92191E
92191E
92191E
92191E
92191E
92191F
92191F
92191F
92191F
92191F
92191F
92191F
92191F
92191F
92191F
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
92200B
92200C
92200C
92200C
92200C
92200C
92200D
92200D
92200D
92200D
92200D
92200E
92200E
92200E
92200E
92200E
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TOP COVER 11061 11061-S090 1
GASKET 11061A 11061-S092 1
CAP 11065 11065-S056 1
PLATE 13271 13271-S064 1
PLATE 13271A 13271-S065 1
PLATE 13271B 13271-S066 1
PLATE 13271C 13271-S067 1
FILTER 14043 14043-S005 1
COVER 14091 14091-S109 1
COVER,DIAPHRAGM 14091A 14091-S112 1
COVER 14091B 14091-S113 1
COVER 14091C 14091-S114 1
CARBURETOR-ASSY 15003 15003-S011 1
TOP-CHAMBER 16005 16005-S008 1
SCREW-PILOT AIR 16014 16014-S007 1
PLUNGER 16016 16016-S009 1
SCREW-THROTTLE STOP 16021 16021-S007 1
VALVE-FLOAT 16030 16030-S009 1
VALVE-FLOAT 16030A 16030-S010 1
FLOAT 16031 16031-S007 1
JET-AIR,#90 16035 16035-S005 1
SHAFT-CARBURETOR 16041 16041-S001 1
COVER-MAIN JET 16049 16049-S001 1
VALVE 16126 16126-S012 1
VALVE,THROTTLE 16126A 16126-S013 1
LINK,LEVER 16171 16171-S002 1
LINK,LEVER 16171A 16171-S003 1
LINK,ARM 16171B 16171-S004 1
NEEDLE-JET 16187 16187-S010 1
SENSOR,THROTTLE 21176 21176-S005 1
DIAPHRAGM 43028 43028-S012 1
DIAPHRAGM 43028A 43028-S013 1
ROD 46102 46102-S005 1
HOLDER-MAIN JET 49123 49123-S007 1
JOINT,AIR CLEANER 59071 59071-S006 1
JOINT 59071A 59071-S007 2
RING-SNAP 92033 92033-S054 1
PIN,FLOAT 92043 92043-S014 1
PIN 92043A 92043-S054 1
ROLLER 92045 92045-S062 1
RING-O 92055 92055-S026 1
RING-O 92055A 92055-S027 1
RING-O 92055B 92055-S028 1
RING-O 92055C 92055-S081 1
RING-O 92055D 92055-S084 1
RING-O,AIR CLEANER 92055E 92055-S085 1
RING-O 92055F 92055-S086 1
RING-O 92055G 92055-S087 2
RING-O 92055H 92055-S088 1
JET-MAIN,#142 92063 92063-S012 1
JET-MAIN,#200 92063A 92063-S013 1
JET-MAIN,#60 92063B 92063-S014 1
JET-PILOT,#45 92064 92064-S010 1
JET-PILOT,#65 92064A 92064-S011 1
SEAL 92093 92093-S048 1
SPRING 92145 92145-S142 1
SPRING 92145A 92145-S143 1
SPRING 92145B 92145-S144 1
SPRING 92145C 92145-S145 1
SPRING 92145D 92145-S146 1
SPRING 92145E 92145-S147 1
SPRING 92145F 92145-S148 1
COLLAR 92152 92152-S004 1
COLLAR 92152A 92152-S005 1
COLLAR 92152B 92152-S006 1
COLLAR 92152C 92152-S007 1
COLLAR 92152D 92152-S008 1
COLLAR 92152E 92152-S009 1
COLLAR 92152F 92152-S010 1
BOLT 92153 92153-S161 1
BOLT 92153A 92153-S256 2
BOLT,4X8 92153B 92153-S358 3
BOLT 92153C 92153-S359 6
BOLT 92153D 92153-S360 3
BOLT 92153E 92153-S361 2
CLAMP,CARB OVERFLOW HOSE 92171 92171-S012 1
CLAMP 92171A 92171-S024 5
CLAMP 92171B 92171-S039 1
CLAMP,WIRING HARNESS 92171C 92171-S081 1
CLAMP 92171D 92171-S118 1
CLAMP 92171E 92171-S119 1
CLAMP 92171F 92171-S120 2
CLAMP 92171G 92171-S123 3
CLAMP 92171H 92171-S124 1
CLAMP 92171I 92171-S126 1
CLAMP 92171J 92171-S127 3
SCREW 92172 92172-S083 1
SCREW,STOP 92172A 92172-S213 1
SCREW 92172B 92172-S215 2
SCREW 92172C 92172-S220 2
SCREW 92172D 92172-S221 1
SCREW 92172E 92172-S222 1
SCREW 92172F 92172-S223 1
TUBE 92191 92191-S077 1
TUBE 92191A 92191-S078 1
TUBE 92191B 92191-S079 1
TUBE 92191C 92191-S080 1
TUBE 92191D 92191-S082 1
TUBE 92191E 92191-S083 1
TUBE 92191F 92191-S084 2
WASHER 92200 92200-S043 1
WASHER 92200A 92200-S044 2
WASHER 92200B 92200-S202 1
WASHER 92200C 92200-S203 1
WASHER 92200D 92200-S209 1
WASHER 92200E 92200-S210 1
NUT 92210 92210-S139 2
NUT 92210A 92210-S140 1
