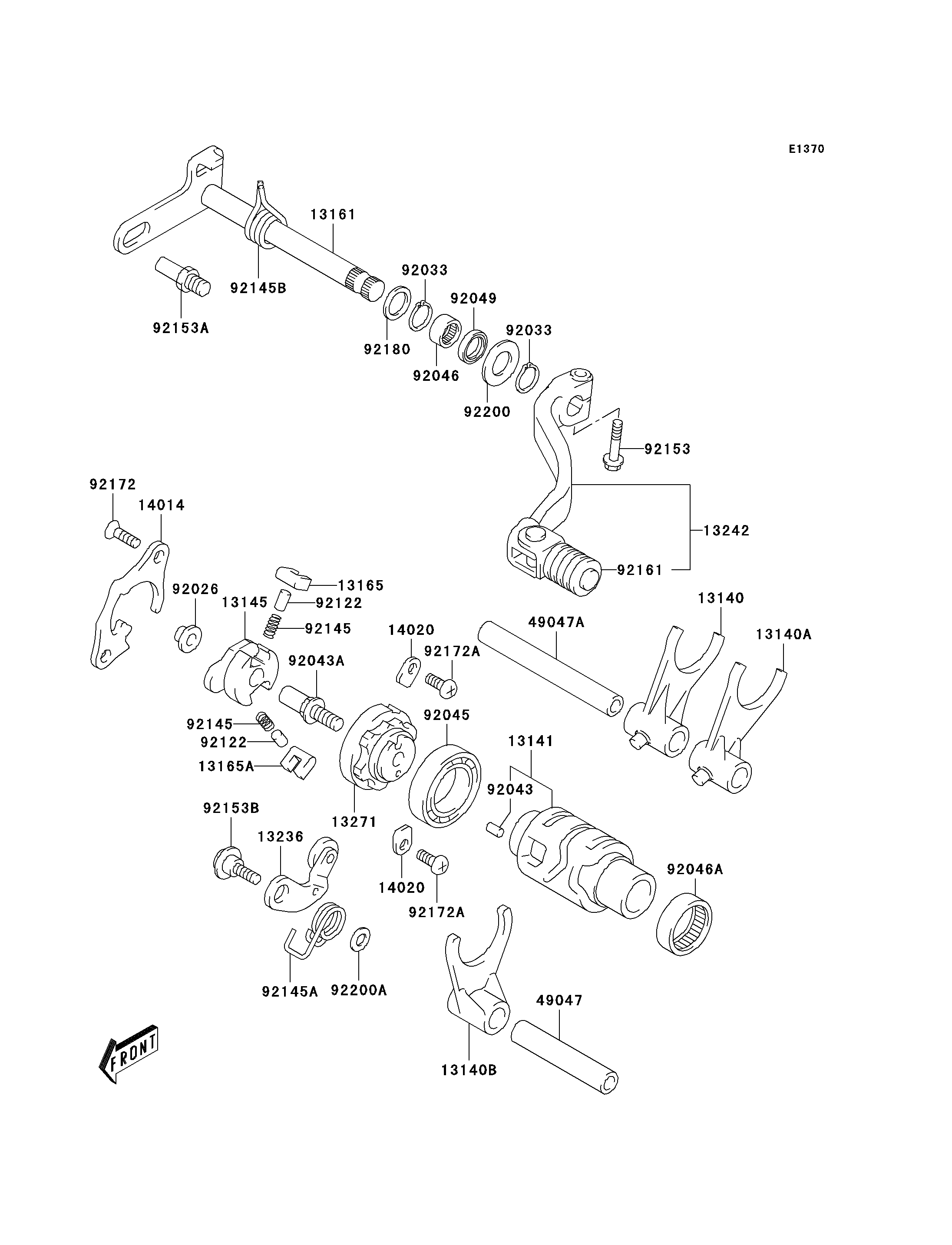

2003 KLX400R - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13140
13140A
13140B
13141
13145
13161
13165
13165A
13236
13242
13271
14014
14020
14020
49047
49047A
92026
92033
92033
92043
92043A
92045
92046
92046A
92049
92122
92122
92145
92145
92145A
92145B
92153
92153A
92153B
92161
92172
92172A
92172A
92180
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-SHIFT 13140 13140-S012 1
FORK-SHIFT 13140A 13140-S013 1
FORK-SHIFT 13140B 13140-S014 1
DRUM-CHANGE 13141 13141-S008 1
CAM-CHANGE DRUM 13145 13145-S004 1
LEVER-COMP-CHANGE SHAFT 13161 13161-S006 1
PAWL 13165 13165-S003 1
PAWL 13165A 13165-S004 1
LEVER-COMP 13236 13236-S006 1
LEVER-ASSY-CHANGE 13242 13242-S005 1
PLATE 13271 13271-S046 1
PLATE-POSITION 14014 14014-S004 1
RETAINER 14020 14020-S008 2
ROD-SHIFT 49047 49047-S007 1
ROD-SHIFT 49047A 49047-S008 1
SPACER,GEAR SHIFT CAM 92026 92026-S087 1
RING-SNAP 92033 92033-S037 2
PIN,CAM STOPPER PLATE 92043 92043-S035 1
PIN,SHIFT CAM 92043A 92043-S041 1
BEARING-BALL,GEAR SHIFT 92045 92045-S047 1
BEARING-NEEDLE,14X20X12 92046 92046-S008 1
BEARING-NEEDLE,GEAR SHIFT CAM 92046A 92046-S020 1
SEAL-OIL,GEAR SHIFT 92049 92049-S050 1
ROLLER,5X8 92122 92122-S005 2
SPRING 92145 92145-S037 2
SPRING 92145A 92145-S128 1
SPRING 92145B 92145-S137 1
BOLT 92153 92153-S003 1
BOLT 92153A 92153-S292 1
BOLT,CAM STOPPER 92153B 92153-S328 1
DAMPER,GEAR SHIFT PEDAL 92161 92161-S057 1
SCREW 92172 92172-S112 2
SCREW 92172A 92172-S170 2
SHIM,GEAR SHIFT 92180 92180-S045 1
WASHER,14X29X1.50 92200 92200-S086 1
WASHER 92200A 92200-S127 1
