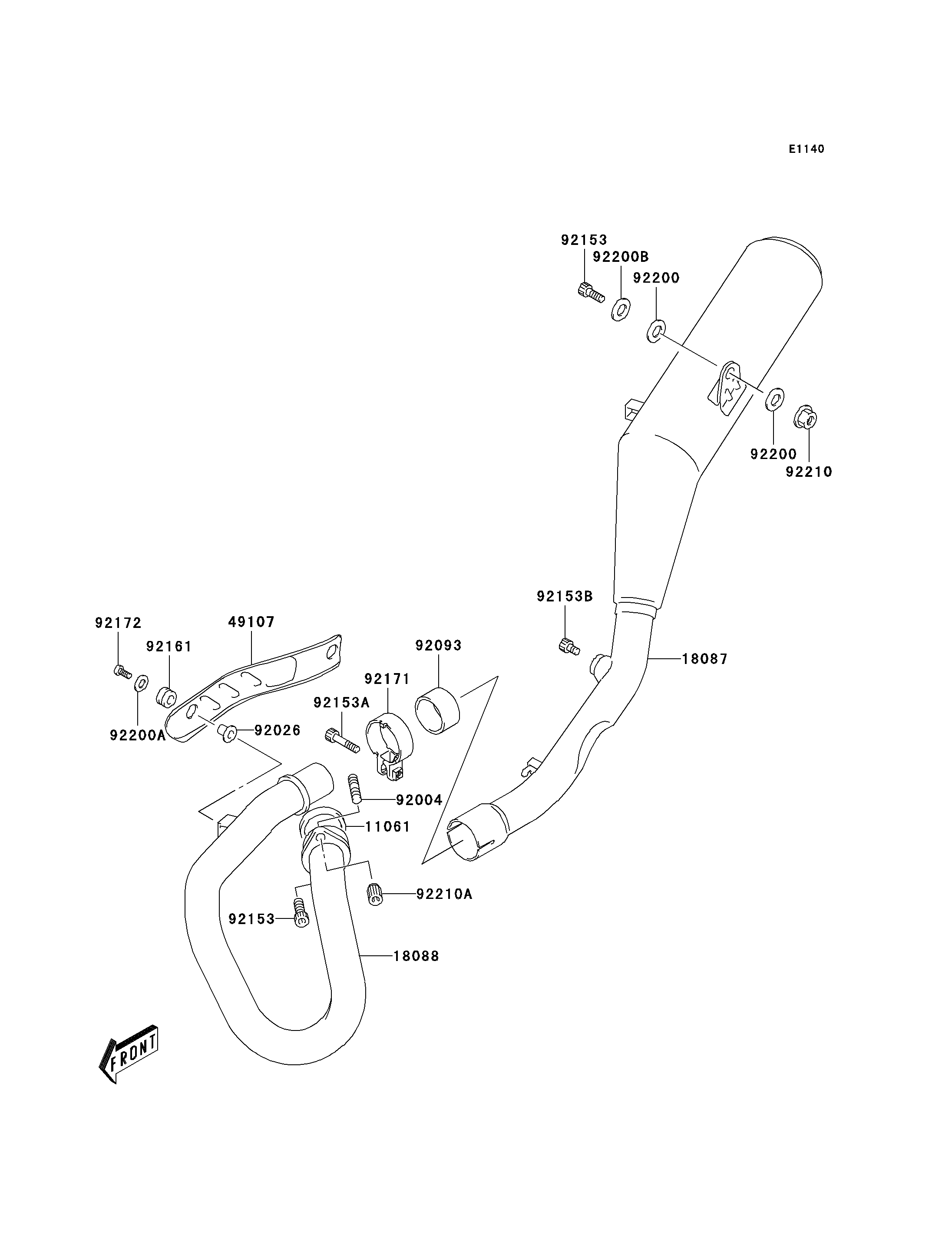

Parts Diagrams |
11061
18087
18088
49107
92004
92026
92093
92153
92153
92153A
92153B
92161
92171
92172
92200
92200
92200A
92200B
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11061 | 11061-S076 | 1 | ||
| MUFFLER | 18087 | 18087-S005 | 1 | ||
| PIPE-EXHAUST | 18088 | 18088-S007 | 1 | ||
| COVER-EXHAUST PIPE | 49107 | 49107-S007 | 1 | ||
| STUD | 92004 | 92004-S012 | 1 | ||
| SPACER | 92026 | 92026-S020 | 2 | ||
| SEAL | 92093 | 92093-S050 | 1 | ||
| BOLT | 92153 | 92153-S134 | 2 | ||
| BOLT | 92153A | 92153-S255 | 1 | ||
| BOLT | 92153B | 92153-S364 | 1 | ||
| DAMPER | 92161 | 92161-S027 | 2 | ||
| CLAMP | 92171 | 92171-S128 | 1 | ||
| SCREW,PIPE COVER | 92172 | 92172-S173 | 2 | ||
| WASHER | 92200 | 92200-S028 | 2 | ||
| WASHER,6.5X18X1 | 92200A | 92200-S182 | 2 | ||
| WASHER | 92200B | 92200-S206 | 1 | ||
| NUT | 92210 | 92210-S029 | 1 | ||
| NUT | 92210A | 92210-S125 | 1 |
