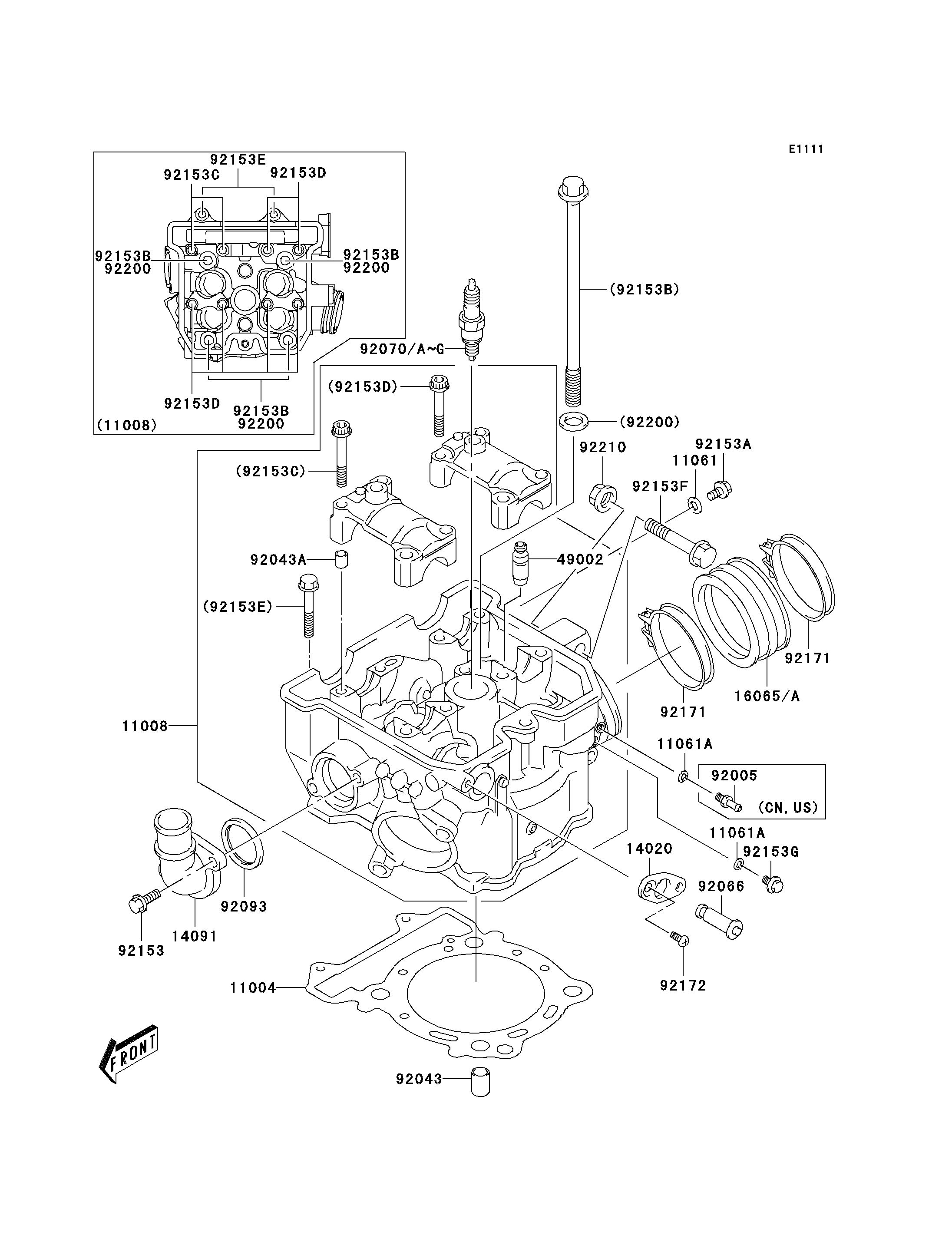

2003 KLX400R - Cylinder Head

DOWNLOAD PDF
SELECT A NEW PART
11004
11004
11008
11008
11061
11061
11061A
11061A
11061A
11061A
14020
14020
14091
14091
16065A
16065A
49002
49002
92005
92005
92043
92043
92043A
92043A
92066
92066
92070
92070
92070A
92070A
92070B
92070B
92070C
92070C
92070D
92070D
92070E
92070E
92070F
92070F
92070G
92070G
92093
92093
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153C
92153C
92153D
92153D
92153D
92153D
92153E
92153E
92153F
92153F
92153G
92153G
92171
92171
92171
92171
92172
92172
92200
92200
92200
92200
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET-HEAD 11004 11004-S006 1
HEAD-COMP-CYLINDER 11008 11008-S006 1
GASKET,5.8X13X1.2 11061 11061-S001 1
GASKET,8.2X14X1 11061A 11061-S020 2
RETAINER,DECOMP SHAFT 14020 14020-S013 1
COVER,THERMOSTAT 14091 14091-S081 1
HOLDER-CARBURETOR 16065A 16065-S010 1
GUIDE-VALVE 49002 49002-S003 4
FITTING 92005 92005-S006 1
PIN 92043 92043-S003 2
PIN,6.2X8X11 92043A 92043-S004 4
PLUG 92066 92066-S040 1
PLUG-SPARK,CR8E(NGK) 92070 92070-S001 1
PLUG-SPARK,U24ESR-N(ND) 92070A 92070-S002 1
PLUG-SPARK,CR9E(NGK) 92070B 92070-S003 1 (OPTION)
PLUG-SPARK,U27ESR-N(ND) 92070C 92070-S004 1 (OPTION)
PLUG-SPARK,U22ESR-N(ND) 92070D 92070-S005 1 (OPTION)
PLUG-SPARK,CR7E(NGK) 92070E 92070-S006 1 (OPTION)
PLUG-SPARK,CR10E(NGK) 92070F 92070-S024 1 (OPTION)
PLUG-SPARK,U31ESR(ND) 92070G 92070-S025 1 (OPTION)
SEAL 92093 92093-S049 1
BOLT 92153 92153-S001 2
BOLT 92153A 92153-S010 1
BOLT,10X175 92153B 92153-S036 4
BOLT 92153C 92153-S214 2
BOLT 92153D 92153-S253 6
BOLT,6X39 92153E 92153-S263 2
BOLT,10X50 92153F 92153-S332 1
BOLT,8X9.5 92153G 92153-S333 1
CLAMP 92171 92171-S090 2
SCREW 92172 92172-S091 1
WASHER,10.5X19X2.0 92200 92200-S009 4
NUT 92210 92210-S015 1
