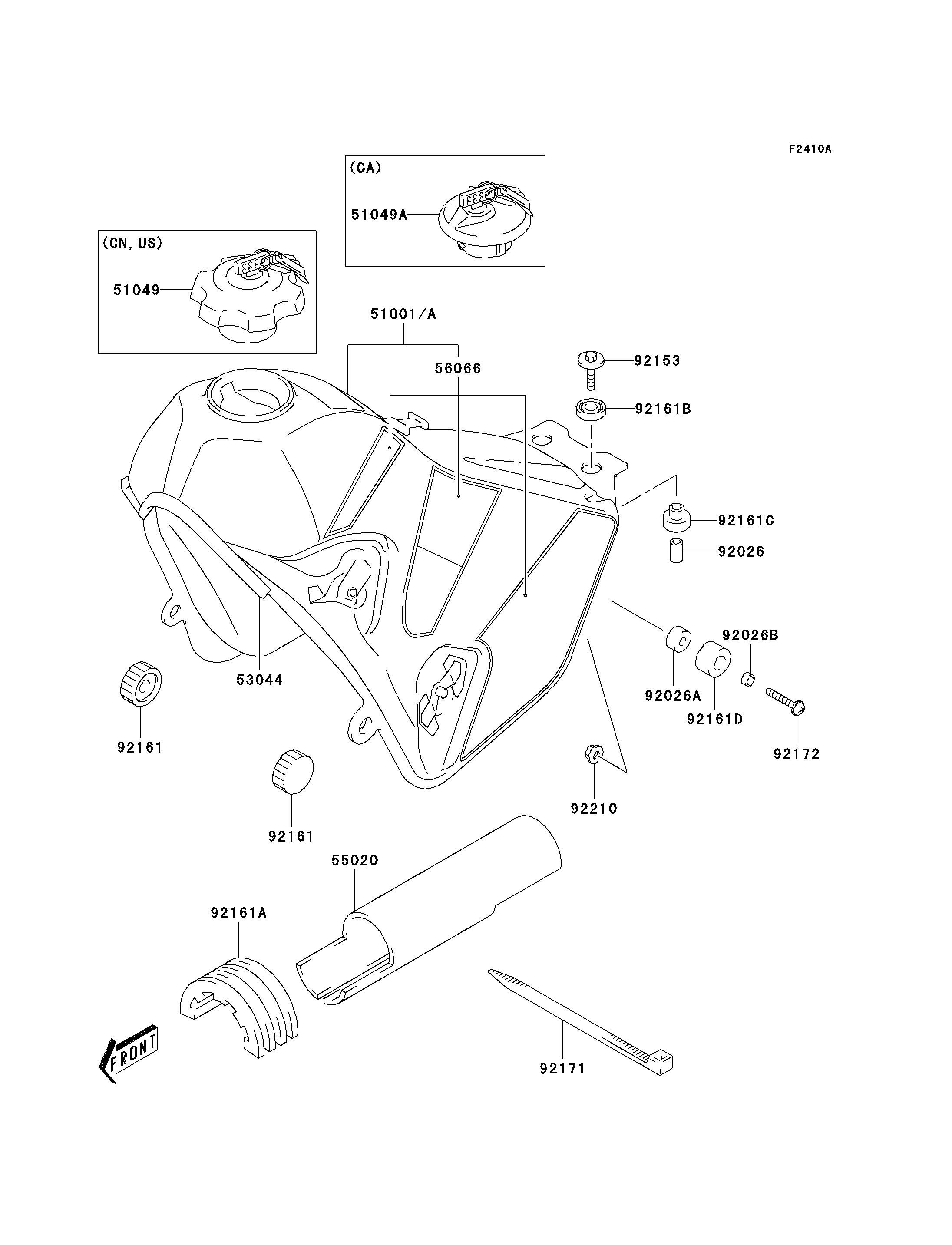

2004 KLX400SR (Canada Only) - Fuel Tank(KLX400-A2)
53044
55020
56066
92026
92026A
92026B
92153
92161
92161
92161A
92161B
92161C
92161D
92171
92172
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TRIM,M.R.ORANGE | 53044 | 53044-S003-500 | 1 | ||
| GUARD,FUEL TANK | 55020 | 55020-S027 | 1 | ||
| PATTERN SET,FUEL TANK,WHT/BLK/GRN | 56066 | 56066-S023-568 | 1 | ||
| SPACER,6.5X9X18 | 92026 | 92026-S002 | 2 | ||
| SPACER,CHAIN BUFFER | 92026A | 92026-S004 | 1 | ||
| SPACER | 92026B | 92026-S126 | 1 | ||
| BOLT | 92153 | 92153-S169 | 2 | ||
| DAMPER,FUEL TANK,FR | 92161 | 92161-S130 | 2 | ||
| DAMPER,FUEL TANK,UPP | 92161A | 92161-S131 | 1 | ||
| DAMPER,FUEL TANK,RR,UPP | 92161B | 92161-S132 | 2 | ||
| DAMPER,FUEL TANK,RR,LOW | 92161C | 92161-S133 | 2 | ||
| DAMPER,FUEL TANK,SIDE | 92161D | 92161-S134 | 1 | ||
| CLAMP,FUEL TANK CUSHION | 92171 | 92171-S056 | 2 | ||
| SCREW | 92172 | 92172-S204 | 1 | ||
| NUT | 92210 | 92210-S054 | 1 | ||
| TANK-COMP-FUEL,BLACK | 51001 | 51001-S014-503 | 1 | CNUS | |
| TANK-COMP-FUEL,BLACK | 51001A | 51001-S016-503 | 1 | CA | |
| CAP-TANK | 51049 | 51049-S010 | 1 | CNUS | |
| CAP-TANK | 51049A | 51049-S011 | 1 | CA |
| TRIM,M.R.ORANGE | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUARD,FUEL TANK | |
| REF # | 55020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN SET,FUEL TANK,WHT/BLK/GRN | |
| REF # | 56066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,6.5X9X18 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPACER,CHAIN BUFFER | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER | |
| REF # | 92026B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,FR | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,UPP | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,RR,UPP | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,RR,LOW | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL TANK,SIDE | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FUEL TANK CUSHION | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL,BLACK | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| TANK-COMP-FUEL,BLACK | |
| REF # | 51001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CAP-TANK | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CNUS |
| REMARKS | |
| CAP-TANK | |
| REF # | 51049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
