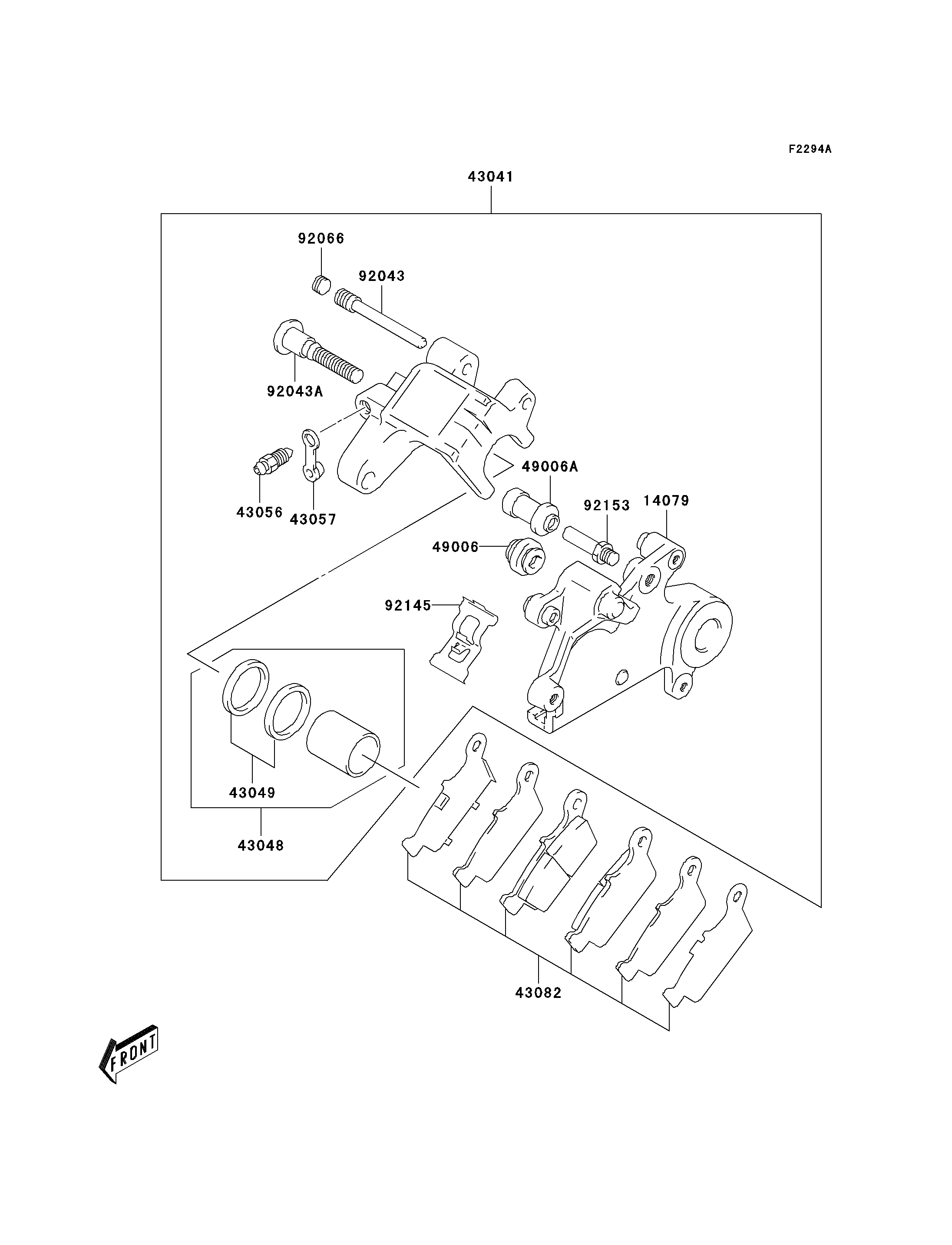

2004 KLX400SR (Canada Only) - Rear Brake(KLX400-A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER-ASSY | 14079 | 14079-S003 | 1 | ||
| CALIPER-ASSY,RR | 43041 | 43041-S018 | 1 | ||
| PISTON-CALIPER | 43048 | 43048-S007 | 1 | ||
| PACKING | 43049 | 43049-S013 | 1 | ||
| BREATHER-BRAKE | 43056 | 43056-S002 | 1 | ||
| CAP-BREATHER,BLEEDER | 43057 | 43057-S002 | 1 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-S010 | 1 | ||
| BOOT | 49006 | 49006-S006 | 1 | ||
| BOOT | 49006A | 49006-S007 | 1 | ||
| PIN | 92043 | 92043-S051 | 1 | ||
| PIN | 92043A | 92043-S053 | 1 | ||
| PLUG | 92066 | 92066-S037 | 1 | ||
| SPRING,PAD | 92145 | 92145-S136 | 1 | ||
| BOLT | 92153 | 92153-S118 | 1 |
