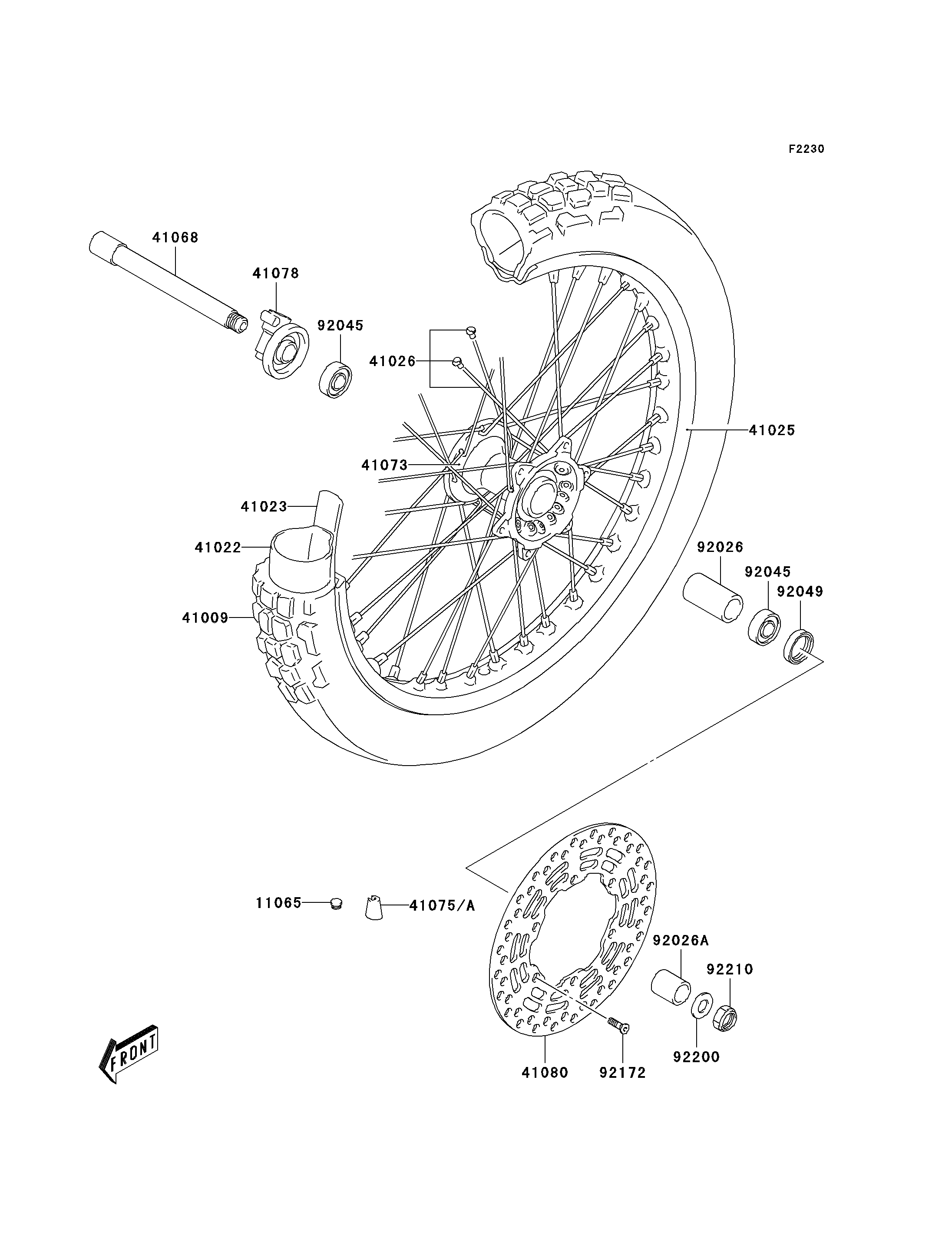

2004 KLX400SR (Canada Only) - Front Hub

DOWNLOAD PDF
SELECT A NEW PART
11065
41009
41022
41023
41025
41026
41068
41073
41075
41075A
41078
41080
92026
92026A
92045
92045
92049
92172
92200
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STOPPER HANDLE 11065 11065-S027 1
TIRE,80/100-21 51P 41009 41009-S015 1
TUBE-TIRE 41022 41022-S006 1
BAND-RIM 41023 41023-S006 1
RIM,1.60X21 41025 41025-S011 1
SPOKE-ASSY,FR 41026 41026-S006 1
AXLE,FR 41068 41068-S012 1
WHEEL-ASSY,FR 41073 41073-S007 1
BALANCER-WHEEL 41075 41075-S004 1
BALANCER-WHEEL 41075A 41075-S005 1
CASE-ASSY-METER GEAR 41078 41078-S002 1
DISC,FR 41080 41080-S007 1
SPACER,20.5X27.3X70 92026 92026-S128 1
SPACER 92026A 92026-S129 1
BEARING-BALL 92045 92045-S061 2
SEAL-OIL,25X37X6 92049 92049-S059 1
SCREW,6X17.5 92172 92172-S210 6
WASHER 92200 92200-S199 1
NUT 92210 92210-S132 1
