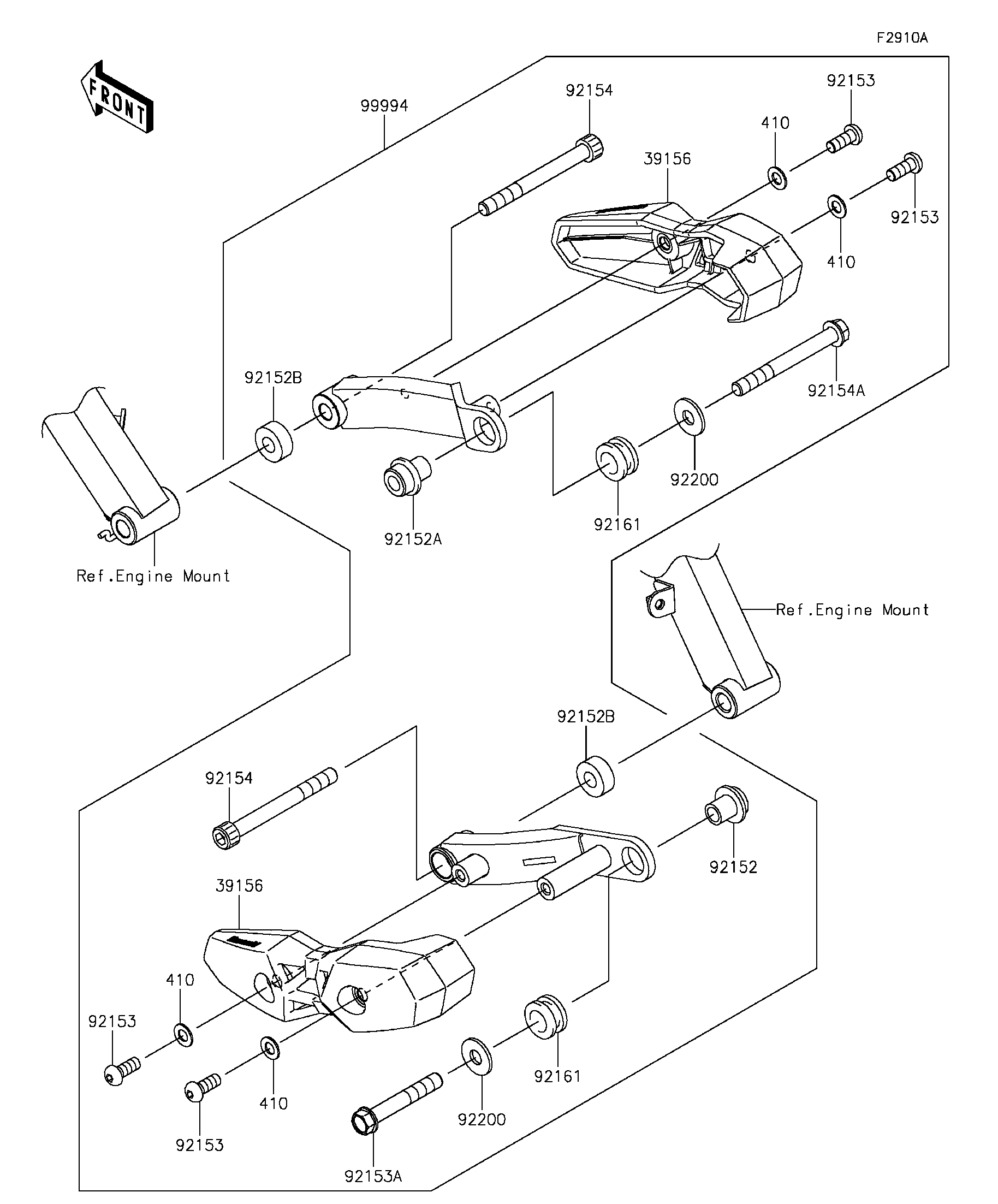

2016 Z1000 ABS - Accessory(Shroud Slider)
39156
39156
410
410
410
410
92152
92152A
92152B
92152B
92153
92153
92153
92153
92153A
92154
92154
92154A
92161
92161
92200
92200
99994
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAD,SLIDER | 39156 | 39156-1818 | 2 | ||
| WASHER-PLAIN-SMALL,8MM,BLACK | 410 | 410AB0800 | 4 | ||
| COLLAR,RR,LH | 92152 | 92152-1519 | 1 | ||
| COLLAR,RR,RH | 92152A | 92152-1520 | 1 | ||
| COLLAR | 92152B | 92152-1790 | 2 | ||
| BOLT,SOCKET,8X20 | 92153 | 92153-0912 | 4 | ||
| BOLT,FLANGED,10X65 | 92153A | 92153-1931 | 1 | ||
| BOLT,SOCKET,10X95 | 92154 | 92154-0447 | 2 | ||
| BOLT,FLANGED,10X90 | 92154A | 92154-0448 | 1 | ||
| DAMPER,15.5X26X14.5 | 92161 | 92161-1361 | 2 | ||
| WASHER,10.5X26X2.3 | 92200 | 92200-0088 | 2 | ||
| KIT-ACCESSORY,SHROUD SLIDER | 99994 | 99994-0400 | 1 |
