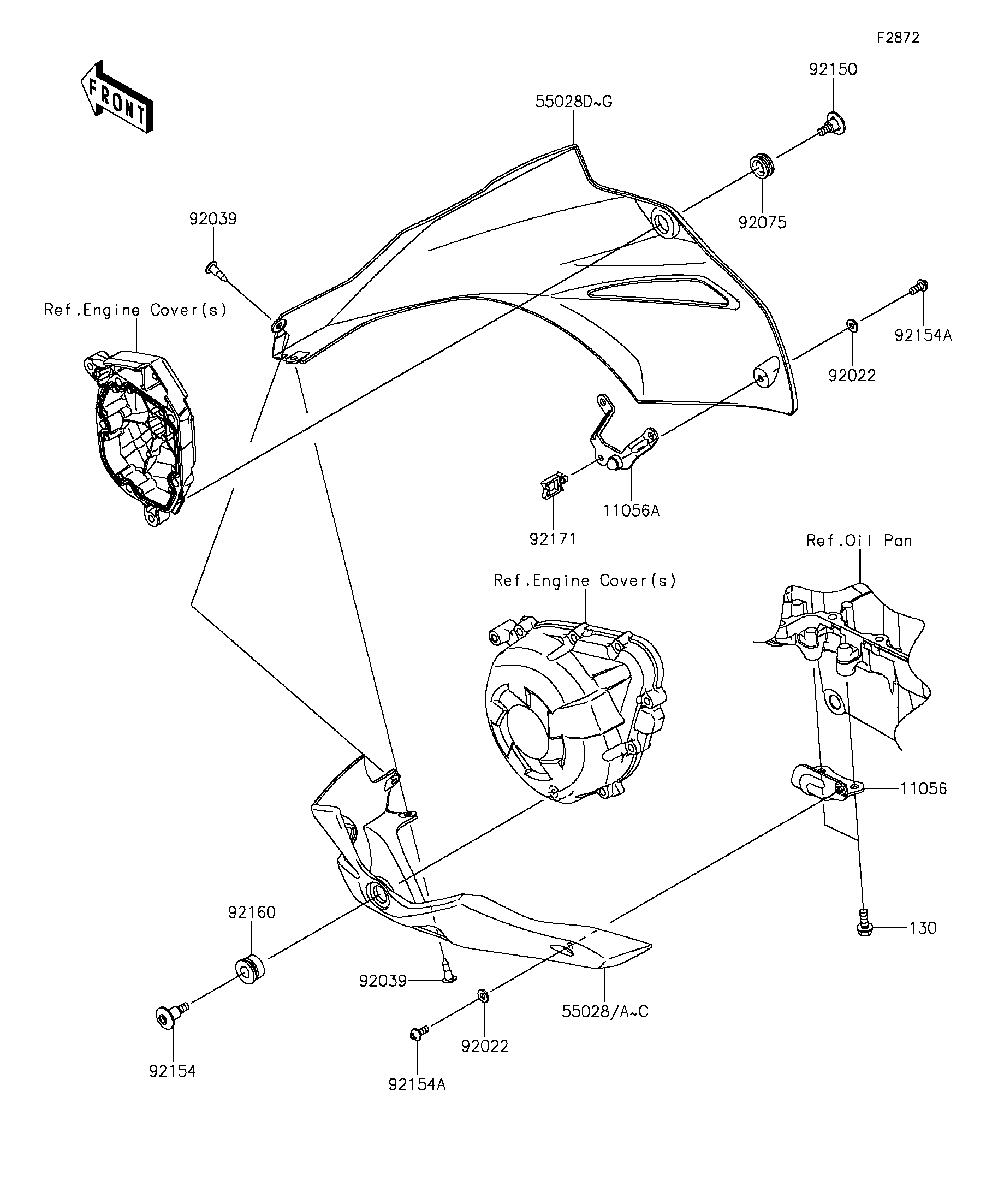

Parts Diagrams |
11056
11056A
130
55028A
55028C
55028E
55028G
92022
92022
92039
92039
92075
92150
92154
92154A
92154A
92160
92171
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LWR COWL.,LH | 11056 | 11056-2520 | 1 | ||
| BRACKET,LWR COWL.,RH | 11056A | 11056-3926 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130CC0616 | 2 | ||
| COWLING,LWR,LH,M.G.GRAY | 55028A | 55028-0494-45W | 1 | CN | |
| COWLING,LWR,LH,M.F.S.BLACK | 55028C | 55028-0494-739 | 1 | ||
| COWLING,LWR,RH,M.G.GRAY | 55028E | 55028-0495-45W | 1 | CN | |
| COWLING,LWR,RH,M.F.S.BLACK | 55028G | 55028-0495-739 | 1 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 2 | ||
| RIVET | 92039 | 92039-0068 | 2 | ||
| DAMPER | 92075 | 92075-1634 | 1 | ||
| BOLT,SOCKET,6MM | 92150 | 92150-1154 | 1 | ||
| BOLT,6X24 | 92154 | 92154-0348 | 1 | ||
| BOLT,SOCKET,5X12 | 92154A | 92154-0917 | 2 | ||
| DAMPER | 92160 | 92160-1141 | 1 | ||
| CLAMP | 92171 | 92171-0290 | 1 |
| BRACKET,LWR COWL.,LH | |
| REF # | 11056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWL.,RH | |
| REF # | 11056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,M.G.GRAY | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COWLING,LWR,LH,M.F.S.BLACK | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,M.G.GRAY | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| COWLING,LWR,RH,M.F.S.BLACK | |
| REF # | 55028G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6MM | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X24 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X12 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
