Parts Diagrams

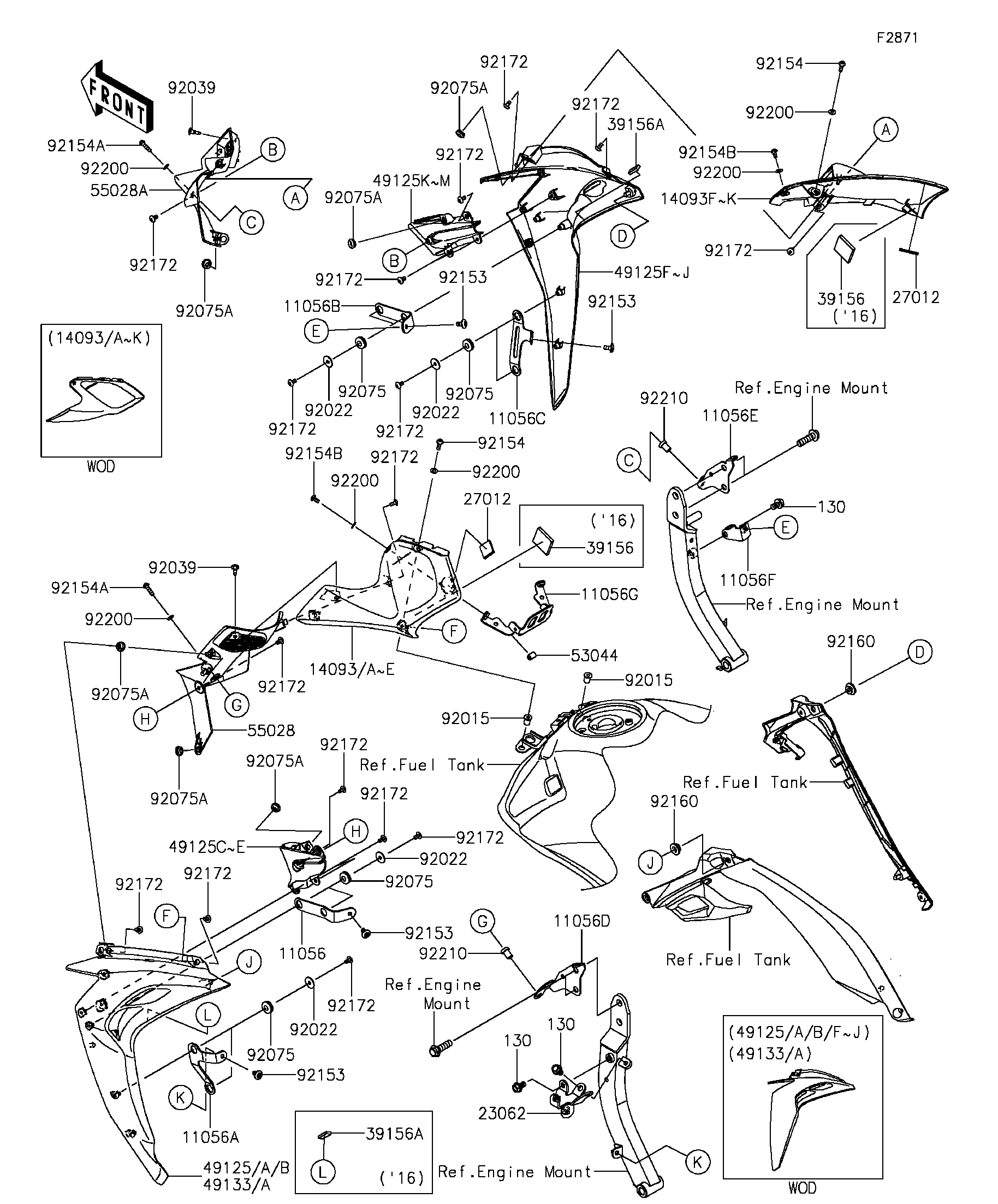

2016 Z1000 ABS - Cowling(Center)

DOWNLOAD PDF

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

11056

11056A

11056B

11056C

11056D

11056E

11056F

11056G

14093D

14093E

14093J

14093K

23062

27012

39156

39156A

49125C

49125D

49125H

130

49125I

49125K

49125L

49133

49133A

53044

55028

55028A

92015

92022

92039

92075

92075A

92153

92154

92154A

92154B

92160

92172

92200

92210

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION
BRACKET,SHROUD,LH,UPP	11056	11056-2510	1
BRACKET,SHROUD,LH,LWR	11056A	11056-2511	1
BRACKET,SHROUD,RH,UPP	11056B	11056-2512	1
BRACKET,SHROUD,RH,LWR	11056C	11056-2513	1
BRACKET,INNER COWL.,LH	11056D	11056-2514	1
BRACKET,INNER COWL.,RH	11056E	11056-2515	1
BRACKET	11056F	11056-2761	1
BRACKET,IGNITION SW.	11056G	11056-3933	1
COVER,DUCT,LH,M.M.C.GRAY	14093D	14093-0089-51B	1	CN
COVER,DUCT,LH,M.M.G.GRAY	14093E	14093-0089-53U	1
COVER,DUCT,RH,M.M.C.GRAY	14093J	14093-0090-51B	1	CN
COVER,DUCT,RH,M.M.G.GRAY	14093K	14093-0090-53U	1
BRACKET-COMP	23062	23062-0788	1
HOOK,FASTENER,20X30	27012	27012-0776	2
PAD,35X35X5	39156	39156-1736	2
PAD,8X30X4	39156A	39156-1792	2
SHROUD,LH,SLAT,G.B.GREEN	49125C	49125-0575-40R	1
SHROUD,LH,SLAT,C.C.RED	49125D	49125-0575-53R	1	CN
SHROUD,RH,M.M.C.GRAY	49125H	49125-0576-51B	1	CN
BOLT-FLANGED,8X14	130	130BB0814	3
SHROUD,RH,M.M.G.GRAY	49125I	49125-0576-53U	1
SHROUD,RH,SLAT,G.B.GREEN	49125K	49125-0577-40R	1
SHROUD,RH,SLAT,C.C.RED	49125L	49125-0577-53R	1	CN
SHROUD,LH,M.M.C.GRAY	49133	49133-0017-51B	1	CN
SHROUD,LH,M.M.G.GRAY	49133A	49133-0017-53U	1
TRIM	53044	53044-0577	1
COWLING,INNER,LH	55028	55028-0492	1
COWLING,INNER,RH	55028A	55028-0493	1
NUT,WELL,5MM	92015	92015-1757	2
WASHER,5.5X20X1.2	92022	92022-1405	8
RIVET	92039	92039-0068	2
DAMPER	92075	92075-051	8
DAMPER,6X16X7	92075A	92075-1011	6
BOLT,SOCKET,6X12	92153	92153-1948	4
BOLT,SOCKET,5X16	92154	92154-0209	2
BOLT,SOCKET,5X20	92154A	92154-0210	2
BOLT,SOCKET,5X10	92154B	92154-0211	2
DAMPER	92160	92160-1613	2
SCREW,TAPPING,5X10	92172	92172-0262	22
WASHER,NYLONE,5.3X11.5X0.5	92200	92200-0006	6
NUT,5MM	92210	92210-0001	2

BRACKET,SHROUD,LH,UPP
BRACKET,SHROUD,LH,UPP
REF #	11056
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,SHROUD,LH,LWR
BRACKET,SHROUD,LH,LWR
REF #	11056A
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,SHROUD,RH,UPP
BRACKET,SHROUD,RH,UPP
REF #	11056B
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,SHROUD,RH,LWR
BRACKET,SHROUD,RH,LWR
REF #	11056C
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,INNER COWL.,LH
BRACKET,INNER COWL.,LH
REF #	11056D
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,INNER COWL.,RH
BRACKET,INNER COWL.,RH
REF #	11056E
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET
BRACKET
REF #	11056F
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET,IGNITION SW.
BRACKET,IGNITION SW.
REF #	11056G
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COVER,DUCT,LH,M.M.C.GRAY
COVER,DUCT,LH,M.M.C.GRAY
REF #	14093D
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

COVER,DUCT,LH,M.M.G.GRAY
COVER,DUCT,LH,M.M.G.GRAY
REF #	14093E
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COVER,DUCT,RH,M.M.C.GRAY
COVER,DUCT,RH,M.M.C.GRAY
REF #	14093J
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

COVER,DUCT,RH,M.M.G.GRAY
COVER,DUCT,RH,M.M.G.GRAY
REF #	14093K
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

BRACKET-COMP
BRACKET-COMP
REF #	23062
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

HOOK,FASTENER,20X30
HOOK,FASTENER,20X30
REF #	27012
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

PAD,35X35X5
PAD,35X35X5
REF #	39156
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

PAD,8X30X4
PAD,8X30X4
REF #	39156A
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

SHROUD,LH,SLAT,G.B.GREEN
SHROUD,LH,SLAT,G.B.GREEN
REF #	49125C
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

SHROUD,LH,SLAT,C.C.RED
SHROUD,LH,SLAT,C.C.RED
REF #	49125D
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

SHROUD,RH,M.M.C.GRAY
SHROUD,RH,M.M.C.GRAY
REF #	49125H
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

BOLT-FLANGED,8X14
BOLT-FLANGED,8X14
REF #	130
PART NUMBER
QUANTITY	3
DESTINATION
REMARKS

SHROUD,RH,M.M.G.GRAY
SHROUD,RH,M.M.G.GRAY
REF #	49125I
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

SHROUD,RH,SLAT,G.B.GREEN
SHROUD,RH,SLAT,G.B.GREEN
REF #	49125K
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

SHROUD,RH,SLAT,C.C.RED
SHROUD,RH,SLAT,C.C.RED
REF #	49125L
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

SHROUD,LH,M.M.C.GRAY
SHROUD,LH,M.M.C.GRAY
REF #	49133
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

SHROUD,LH,M.M.G.GRAY
SHROUD,LH,M.M.G.GRAY
REF #	49133A
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

TRIM
TRIM
REF #	53044
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,INNER,LH
COWLING,INNER,LH
REF #	55028
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COWLING,INNER,RH
COWLING,INNER,RH
REF #	55028A
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

NUT,WELL,5MM
NUT,WELL,5MM
REF #	92015
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

WASHER,5.5X20X1.2
WASHER,5.5X20X1.2
REF #	92022
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

RIVET
RIVET
REF #	92039
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

DAMPER
DAMPER
REF #	92075
PART NUMBER
QUANTITY	8
DESTINATION
REMARKS

DAMPER,6X16X7
DAMPER,6X16X7
REF #	92075A
PART NUMBER
QUANTITY	6
DESTINATION
REMARKS

BOLT,SOCKET,6X12
BOLT,SOCKET,6X12
REF #	92153
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

BOLT,SOCKET,5X16
BOLT,SOCKET,5X16
REF #	92154
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

BOLT,SOCKET,5X20
BOLT,SOCKET,5X20
REF #	92154A
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

BOLT,SOCKET,5X10
BOLT,SOCKET,5X10
REF #	92154B
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

DAMPER
DAMPER
REF #	92160
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

SCREW,TAPPING,5X10
SCREW,TAPPING,5X10
REF #	92172
PART NUMBER
QUANTITY	22
DESTINATION
REMARKS

WASHER,NYLONE,5.3X11.5X0.5
WASHER,NYLONE,5.3X11.5X0.5
REF #	92200
PART NUMBER
QUANTITY	6
DESTINATION
REMARKS

NUT,5MM
NUT,5MM
REF #	92210
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS
