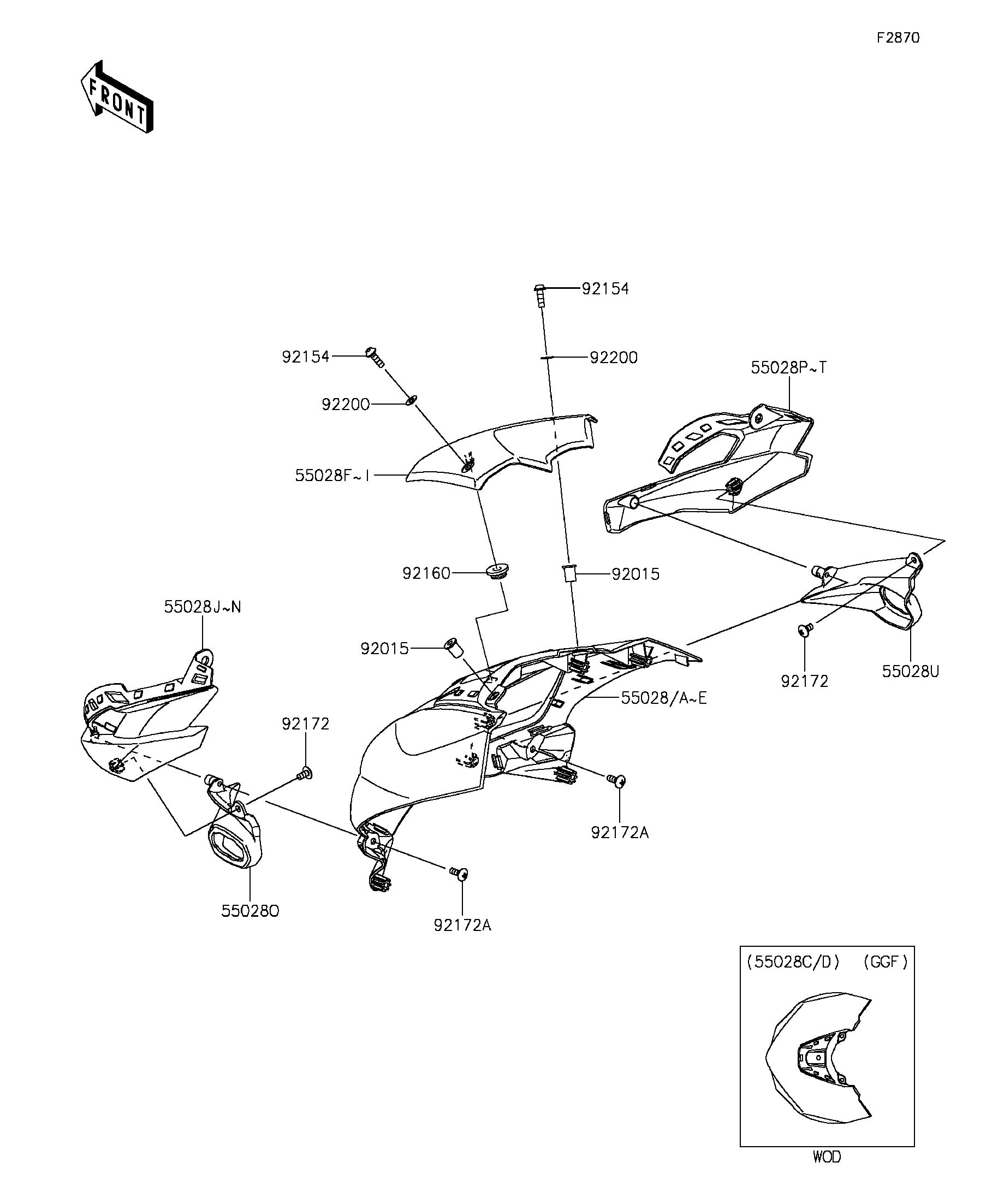

2016 Z1000 ABS - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
55028C
55028D
55028F
55028H
55028M
55028O
55028S
55028U
92015
92015
92154
92154
92160
92172
92172
92172A
92172A
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COWLING,UPP,CNT,M.M.C.GRAY 55028C 55028-0486-51B 1 CN
COWLING,UPP,CNT,M.M.G.GRAY 55028D 55028-0486-53U 1
COWLING,UPP,UPP,G.B.GREEN 55028F 55028-0487-40R 1
COWLING,UPP,UPP,C.C.RED 55028H 55028-0487-53R 1 CN
COWLING,UPP,LH,M.M.G.GRAY 55028M 55028-0488-53U 1
COWLING,UPP,LH,SIGNAL 55028O 55028-0489 1
COWLING,UPP,RH,M.M.G.GRAY 55028S 55028-0490-53U 1
COWLING,UPP,RH,SIGNAL 55028U 55028-0491 1
NUT,WELL,5MM 92015 92015-1757 2
BOLT,SOCKET,5X16 92154 92154-0209 2
DAMPER 92160 92160-1613 1
SCREW,TAPPING,5X10 92172 92172-0262 2
SCREW,TAPPING,5X14 92172A 92172-0265 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
