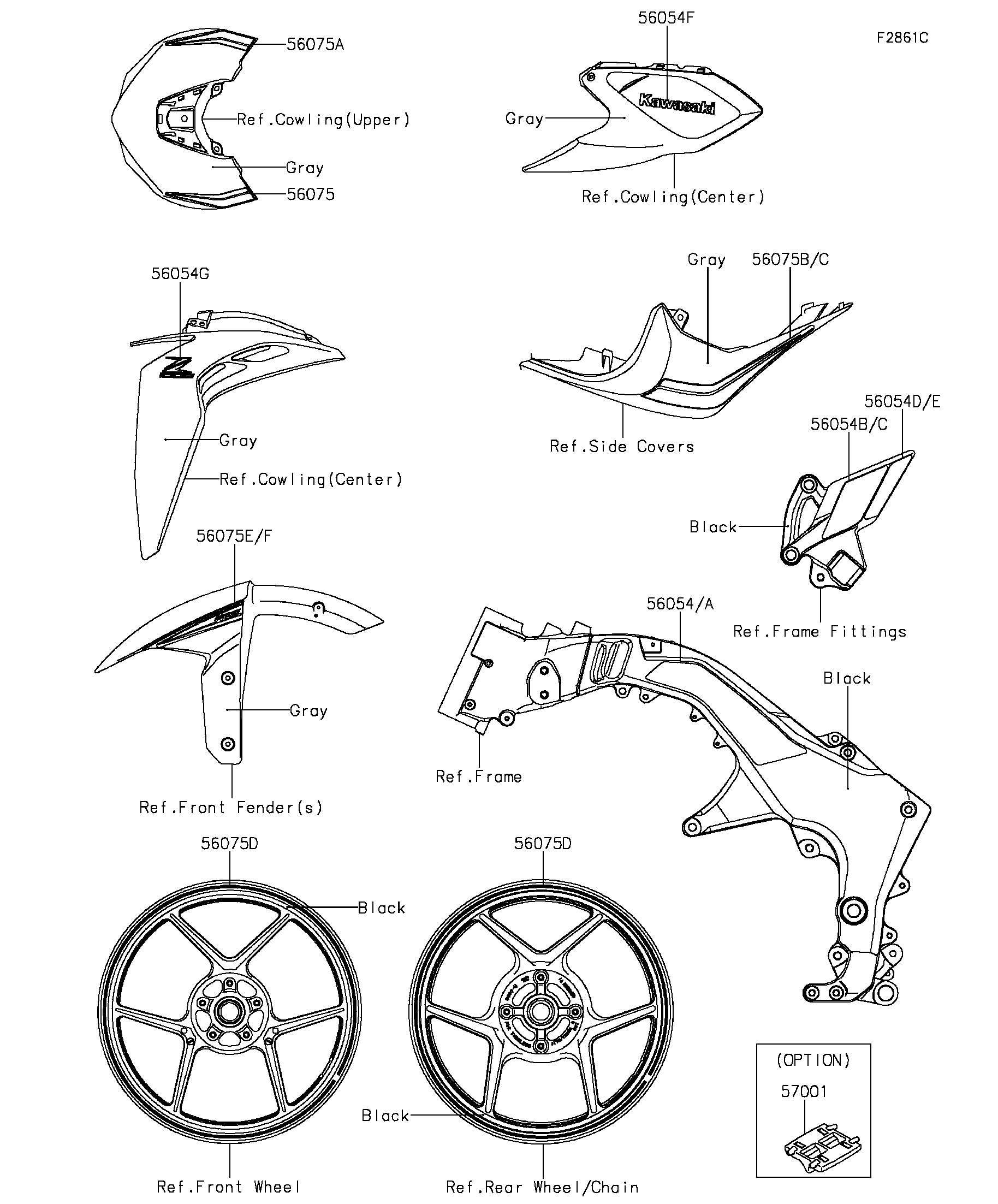

2016 Z1000 ABS - Decals(Red)(GGF)(CN)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56075
56075A
56075B
56075C
56075D
56075D
56075E
56075F
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FRAME PAD,LH 56054 56054-0607 1 CN
MARK,FRAME PAD,RH 56054A 56054-0608 1 CN
MARK,STEP STAY,LH 56054B 56054-1245 1 CN
MARK,STEP STAY,RH 56054C 56054-1246 1 CN
MARK,STEP STAY,LWR,LH 56054D 56054-1280 1 CN
MARK,STEP STAY,LWR,RH 56054E 56054-1281 1 CN
MARK,TANK COVER,KAWASAKI 56054F 56054-1876 2 CN
MARK,SHROUD,Z1000 56054G 56054-1877 2 CN
PATTERN,UPP COWL.,LH 56075 56075-1062 1 CN
PATTERN,UPP COWL.,RH 56075A 56075-1063 1 CN
PATTERN,TAIL COVER,LH 56075B 56075-1064 1 CN
PATTERN,TAIL COVER,RH 56075C 56075-1065 1 CN
PATTERN,WHEEL,RED,4X1353 56075D 56075-1068 4 CN
PATTERN,FR FENDER,LH 56075E 56075-1077 1 CN
PATTERN,FR FENDER,RH 56075F 56075-1078 1 CN
RIM STRIPE APPLICATOR 57001 57001-1752 AR CN
