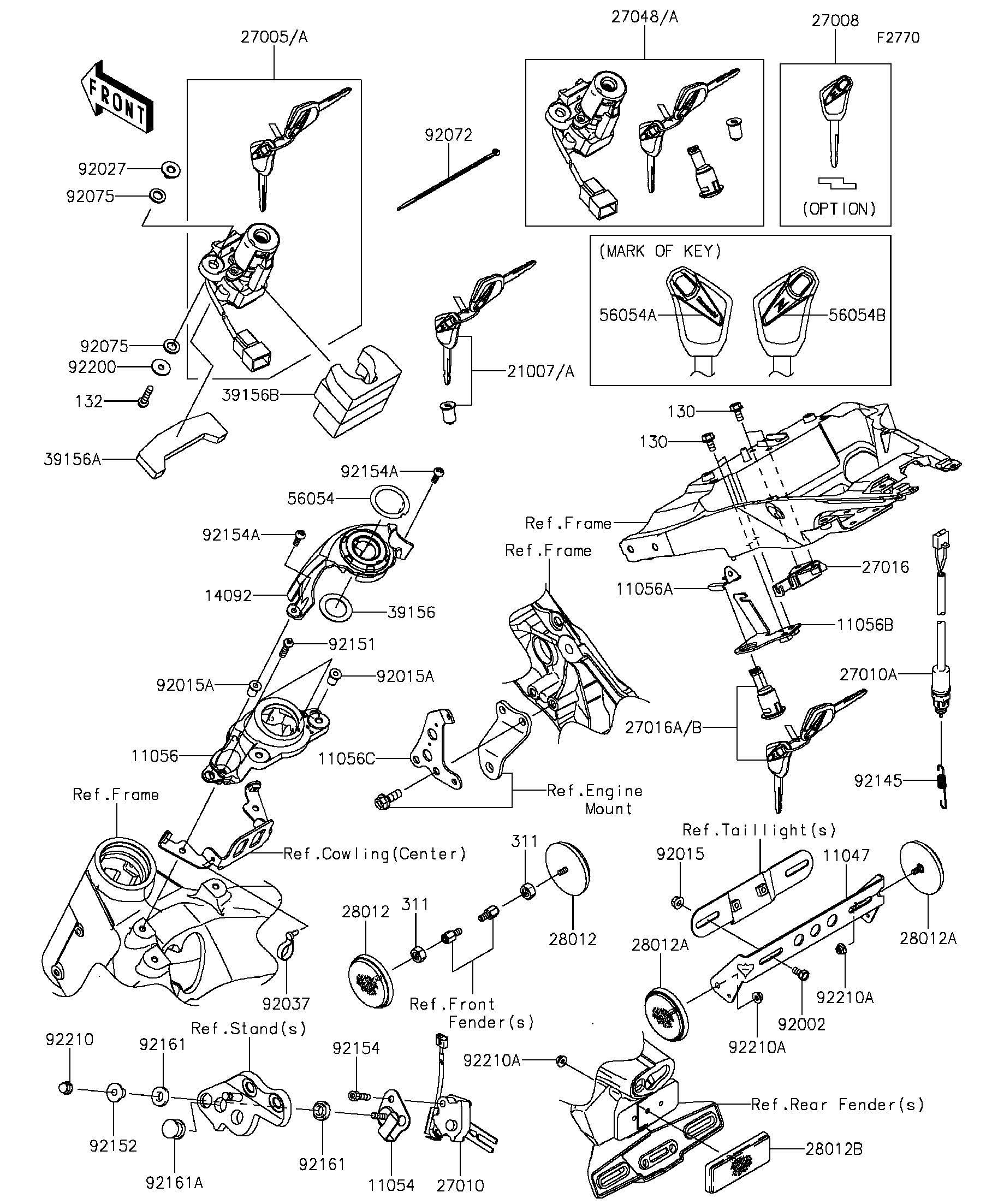

2016 Z1000 ABS - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11047
11047
11054
11054
11056
11056
11056A
11056A
11056B
11056B
11056C
11056C
14092
14092
21007
21007
27005A
27005A
27008
27008
27010
27010
27010A
27010A
27016
27016
27016A
27016A
27048A
27048A
28012
28012
28012
28012
28012A
28012A
28012A
28012A
28012B
28012B
39156
39156
39156A
39156A
39156B
39156B
56054
56054
56054A
56054A
56054B
56054B
92002
92002
92015
92015
92015A
92015A
92015A
92015A
92027
92027
92037
92037
92072
92072
92075
92075
92075
92075
92145
92145
92151
92151
92152
92152
130
130
130
130
132
132
311
311
311
311
92154
92154
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161A
92161A
92200
92200
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,REFLECTOR 11047 11047-1470 1
BRACKET,SIDE STAND SWITCH 11054 11054-1904 1
BRACKET,IGNITION SWITCH 11056 11056-0161 1
BRACKET 11056A 11056-1084 1
BRACKET,KEY CYLINDER 11056B 11056-2507 1
BRACKET,IMMOBI AMP 11056C 11056-2807 1
COVER,KEY CYLINDER 14092 14092-1130 1
ROTOR,LOCK,TANK CAP 21007 21007-5073 1
SWITCH-ASSY-IGNITION 27005A 27005-0600 1
KEY-LOCK,BLANK 27008 27008-0569 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0112 1
SWITCH,STOP 27010A 27010-0749 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5382 1
SWITCH-ASSY 27048A 27048-5055 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
PAD 39156 39156-0617 1
PAD,FRAME 39156A 39156-1754 1
PAD,IG. SWITCH 39156B 39156-1755 1
MARK,IGNITION 56054 56054-1108 1
MARK,KAWASAKI 56054A 56054-1572 AR
MARK,Z 56054B 56054-1573 AR
BOLT,6X12 92002 92002-1132 2
NUT,FLANGED,6MM 92015 92015-1367 2
NUT,WELL,5MM 92015A 92015-1757 2
COLLAR,L=9.6 92027 92027-1045 2
CLAMP,SPEED,L=80.5 92037 92037-1903 1
BAND,L=148 92072 92072-3768 1
DAMPER 92075 92075-1564 4
SPRING,BRAKE LAMP SWITCH 92145 92145-0761 1
BOLT,TORX,6X22 92151 92151-1946 2
COLLAR 92152 92152-1074 1
BOLT-FLANGED,6X12 130 130BA0612 4
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
NUT-HEX,5MM 311 311AB0500 2
BOLT,SOCKET,6X22 92154 92154-0031 1
BOLT,SOCKET,5X16 92154A 92154-0209 2
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
WASHER,6X20X1.6 92200 92200-0212 2
NUT,CAP,6MM 92210 92210-0003 1
NUT,FLANGED,5MM 92210A 92210-0007 3
