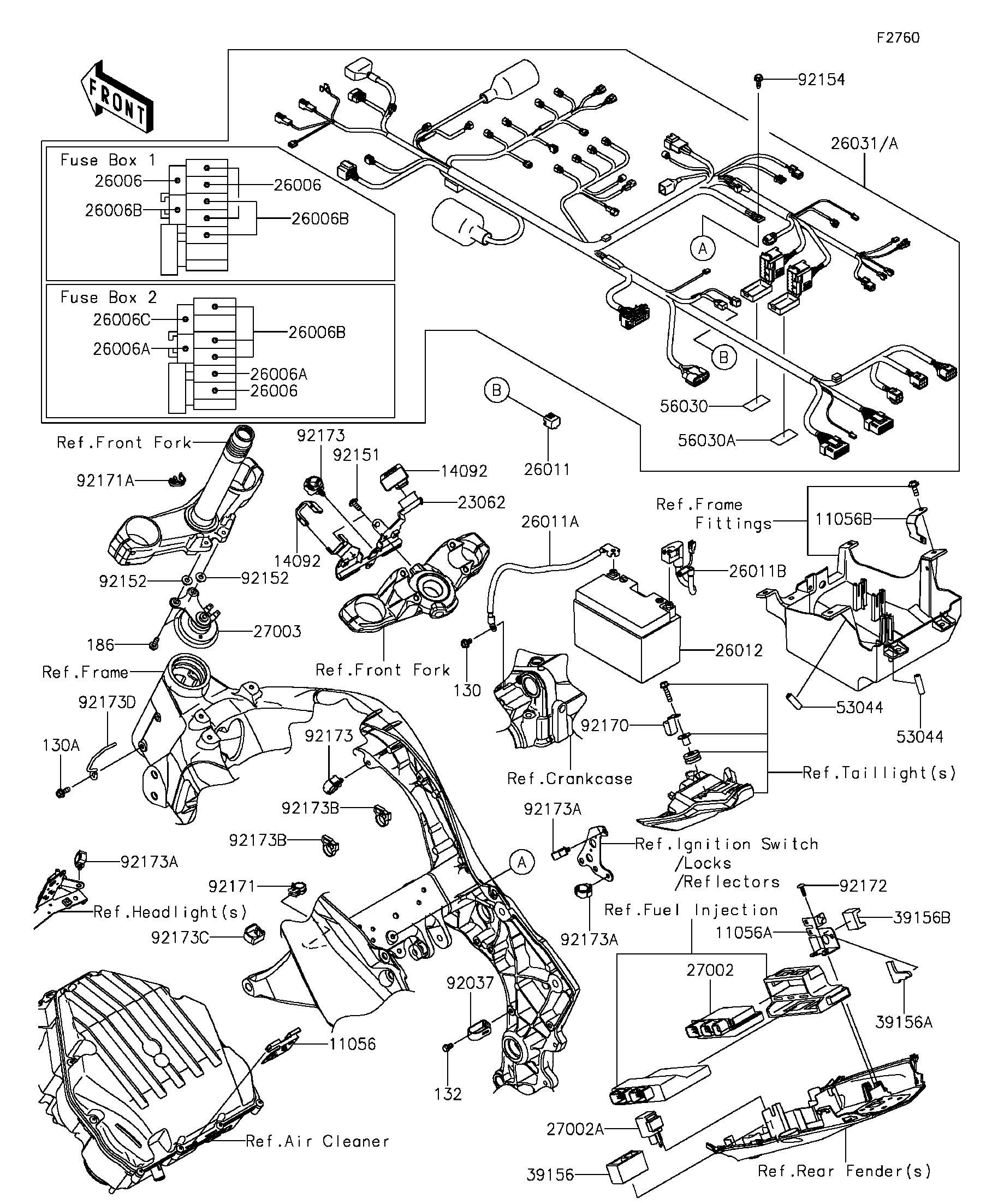

2016 Z1000 ABS - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11056B
11056B
130
130
14092
14092
14092
14092
23062
23062
26006
26006
26006
26006
26006
26006
26006A
26006A
26006A
26006A
26006B
26006B
26006B
26006B
26006B
26006B
26006C
26006C
26011
26011
26011A
26011A
26011B
26011B
26012
26012
26031A
26031A
27002
27002
27002A
27002A
27003
27003
39156
39156
39156A
39156A
39156B
39156B
53044
53044
53044
53044
56030
56030
56030A
56030A
92037
92037
92151
92151
92152
92152
92152
92152
92154
92154
92170
92170
92171
92171
92171A
92171A
92172
92172
92173
92173
92173
92173
92173A
92173A
92173A
92173A
92173A
92173A
92173B
92173B
92173B
92173B
92173C
92173C
92173D
92173D
130A
130A
132
132
186
186
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SPEED SENSOR 11056 11056-2434 1
BRACKET,RR COUPLER 11056A 11056-2531 1
BRACKET,PUMP COUPLER 11056B 11056-3936 1
BOLT-FLANGED,6X10 130 130BA0610 1
COVER,HARNESS 14092 14092-1166 2
BRACKET-COMP,HARNESS&CABLE 23062 23062-0819 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,25A,NATURAL 26006A 26006-0020 2
FUSE,MINI BLADE,7.5A,BROWN 26006B 26006-0055 6
FUSE,MINI BLADE,30A,GREEN 26006C 26006-1080 1
WIRE-LEAD,CONNECTOR COVER 26011 26011-0275 1
WIRE-LEAD,BATTERY(-) 26011A 26011-0822 1
WIRE-LEAD,BATTERY(+) 26011B 26011-0839 1
BATTERY,YT12A-BS,12V 26012 26012-0556 1
HARNESS,MAIN 26031A 26031-1724 1 CA
RELAY-ASSY,BOX 27002 27002-0007 1
RELAY-ASSY,SIGNAL LAMP 27002A 27002-1097 1
HORN 27003 27003-0096 1
PAD 39156 39156-1735 1
PAD 39156A 39156-1803 1
PAD 39156B 39156-1804 1
TRIM,L=30 53044 53044-0001 2
LABEL,FUSE BOX1 56030 56030-0830 1
LABEL,FUSE BOX2 56030A 56030-0857 1
CLAMP,CABLE,STEEL SHEET 92037 92037-2014 1
BOLT,SOCKET,6X14 92151 92151-1654 2
COLLAR,6.3X8.3X16 92152 92152-0286 2
BOLT,FLANGED,6X16 92154 92154-0551 1
CLAMP 92170 92170-1925 1
CLAMP,EDGE CLIP 92171 92171-1722 1
CLAMP,BRAKE HOSE 92171A 92171-1819 1
SCREW,TAPPING,5X16 92172 92172-0238 2
CLAMP 92173 92173-0861 2
CLAMP,HOLDER CLIP 92173A 92173-0868 3
CLAMP,SNAPPER 92173B 92173-0970 2
CLAMP,HARNESS 92173C 92173-1156 1
CLAMP,IRON WIRE 92173D 92173-1199 1
BOLT-FLANGED,6X16 130A 130BB0616 1
BOLT-FLANGED-SMALL,6X10 132 132BA0610 1
BOLT-UPSET-WP,6X18 186 186BB0618 2
