Parts Diagrams

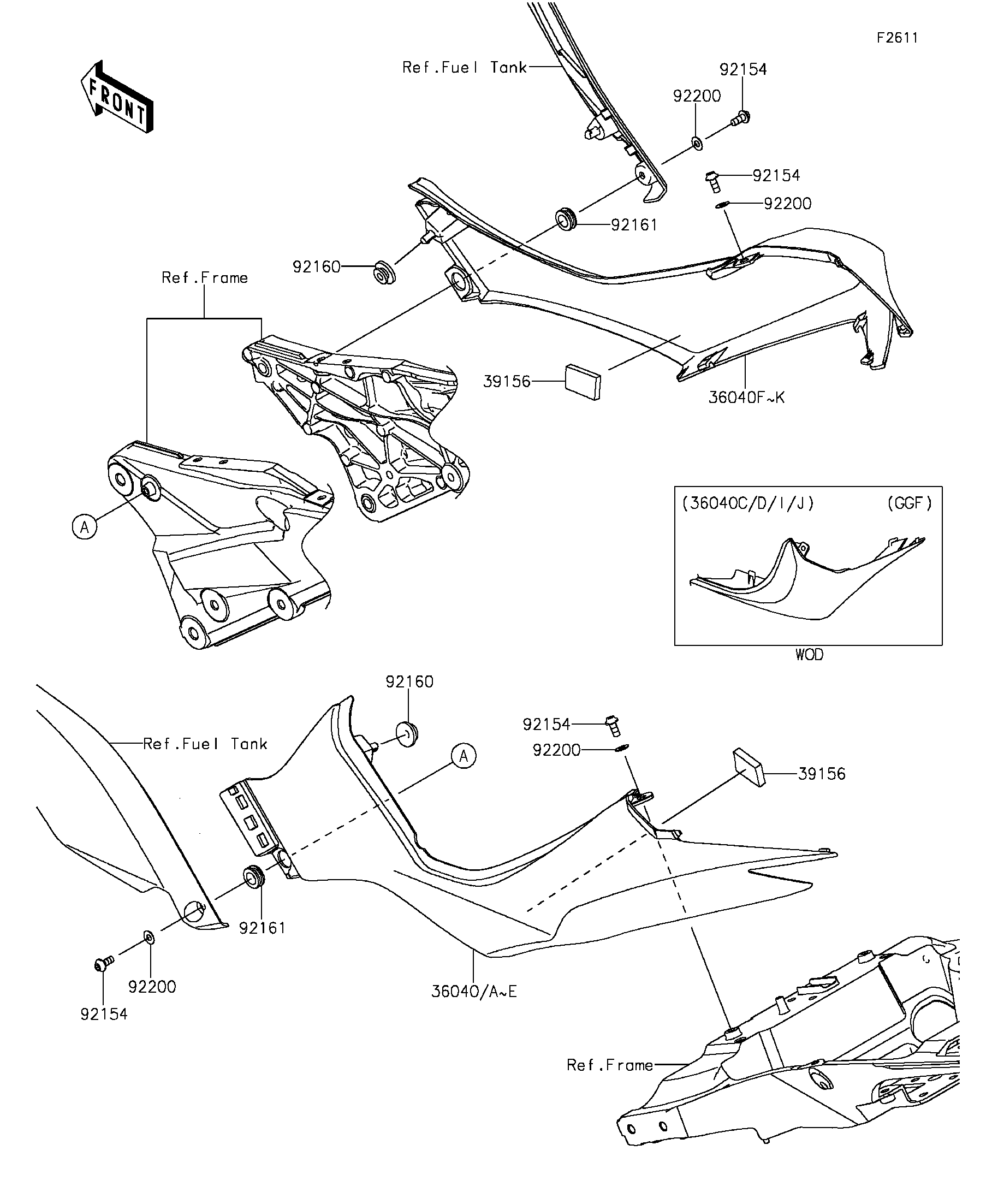

2016 Z1000 ABS - Side Covers

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

36040C

36040D

36040I

36040J

39156

39156

92154

92154

92154

92154

92160

92160

92161

92161

92200

92200

92200

92200

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION	REMARKS
COVER-TAIL,LH,M.M.C.GRAY	36040C	36040-0148-51B	1	CN
COVER-TAIL,LH,M.M.G.GRAY	36040D	36040-0148-53U	1
COVER-TAIL,RH,M.M.C.GRAY	36040I	36040-0149-51B	1	CN
COVER-TAIL,RH,M.M.G.GRAY	36040J	36040-0149-53U	1
PAD,20X30X6	39156	39156-1751	2
BOLT,SOCKET,5X12	92154	92154-0917	4
DAMPER	92160	92160-1613	2
DAMPER	92161	92161-0266	2
WASHER,NYLONE,5.3X11.5X0.5	92200	92200-0006	4

COVER-TAIL,LH,M.M.C.GRAY
COVER-TAIL,LH,M.M.C.GRAY
REF #	36040C
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

COVER-TAIL,LH,M.M.G.GRAY
COVER-TAIL,LH,M.M.G.GRAY
REF #	36040D
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

COVER-TAIL,RH,M.M.C.GRAY
COVER-TAIL,RH,M.M.C.GRAY
REF #	36040I
PART NUMBER
QUANTITY	1
DESTINATION	CN
REMARKS

COVER-TAIL,RH,M.M.G.GRAY
COVER-TAIL,RH,M.M.G.GRAY
REF #	36040J
PART NUMBER
QUANTITY	1
DESTINATION
REMARKS

PAD,20X30X6
PAD,20X30X6
REF #	39156
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

BOLT,SOCKET,5X12
BOLT,SOCKET,5X12
REF #	92154
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS

DAMPER
DAMPER
REF #	92160
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

DAMPER
DAMPER
REF #	92161
PART NUMBER
QUANTITY	2
DESTINATION
REMARKS

WASHER,NYLONE,5.3X11.5X0.5
WASHER,NYLONE,5.3X11.5X0.5
REF #	92200
PART NUMBER
QUANTITY	4
DESTINATION
REMARKS
