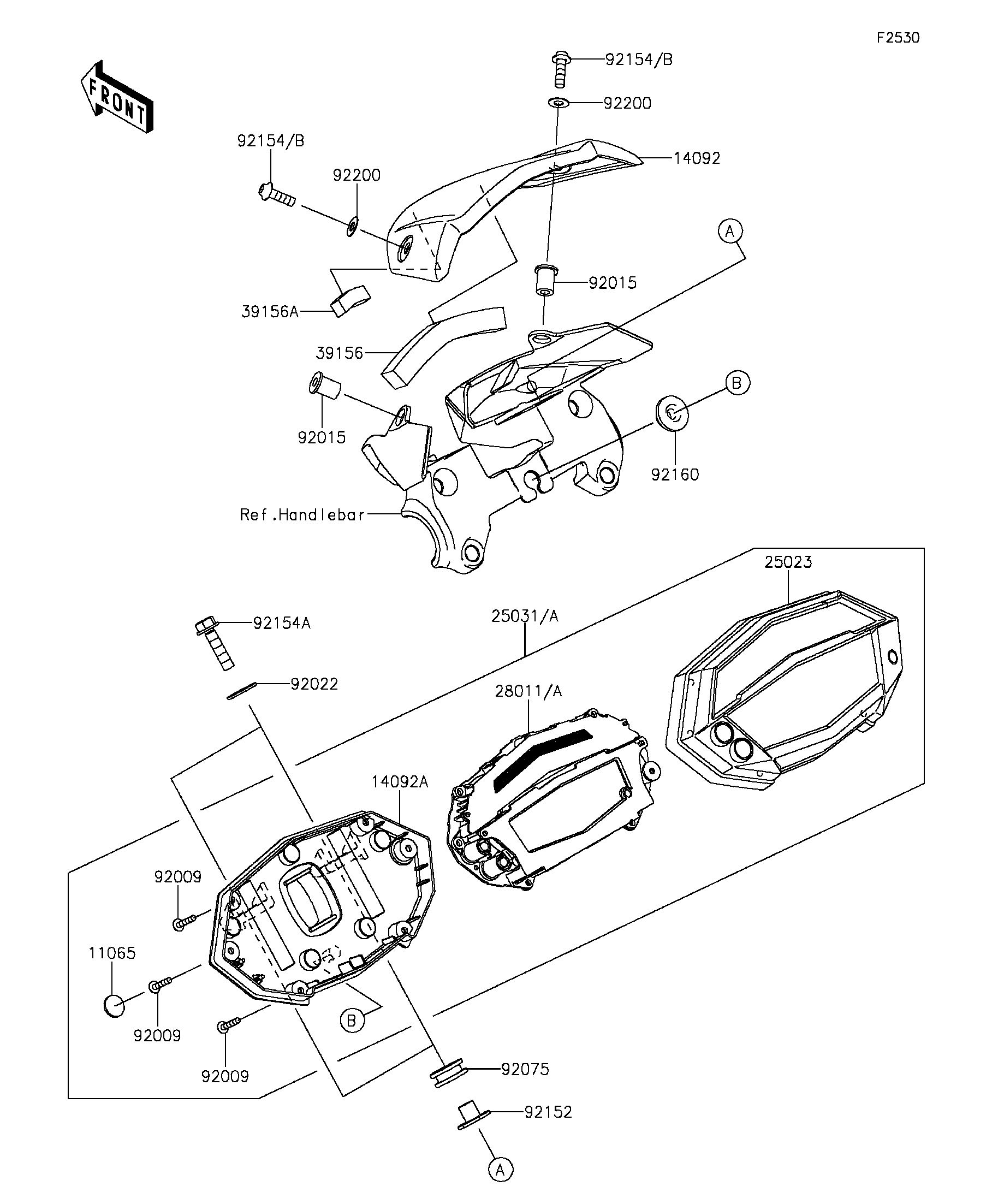

2016 Z1000 ABS - Meter(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
14092
14092A
25023
25031A
28011A
39156
39156A
92009
92009
92009
92015
92015
92022
92075
92152
92154A
92154B
92154B
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,WATERPROOF 11065 11065-0836 2
COVER,METER 14092 14092-1133 1
COVER,LWR CASE 14092A 14092-1164 1
COVER-METER CASE,UPP 25023 25023-0094 1
METER-ASSY,COMBINATION,ABS 25031A 25031-0617 1
METER,LCD 28011A 28011-0630 1
PAD,RUBBER,12X90X12 39156 39156-1796 1
PAD,12X10X8 39156A 39156-1809 1
SCREW,TAPPING,3X16 92009 92009-1391 6
NUT,WELL,5MM 92015 92015-1757 2
WASHER,6.2X18X1.2 92022 92022-1369 2
DAMPER 92075 92075-1634 2
COLLAR,6X9X11.1 92152 92152-2075 2
BOLT,FLANGED,6X25 92154A 92154-0707 2
BOLT,SOCKET,5X16 92154B 92154-1701 2
DAMPER 92160 92160-1613 1
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 2
