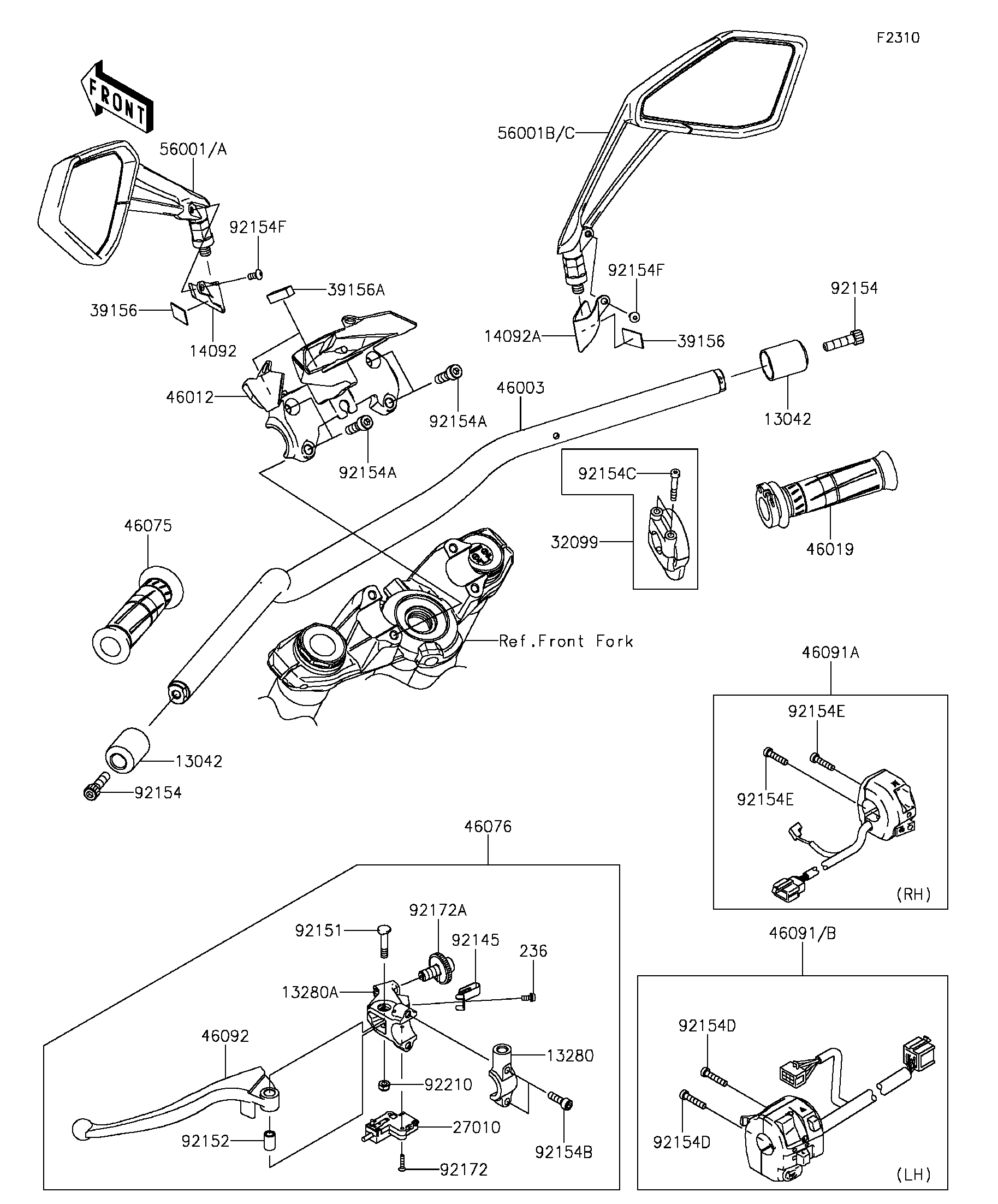

2016 Z1000 ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13280
13280A
14092
14092A
236
27010
32099
39156
39156
39156A
46003
46012
46019
46075
46076
46091A
46091B
46092
56001A
56001C
92145
92151
92152
92154
92154
92154A
92154A
92154B
92154C
92154D
92154D
92154E
92154E
92154F
92154F
92172
92172A
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5001 2
HOLDER,CLUTCH LEVER 13280 13280-0772 1
HOLDER,CLUTCH LEVER 13280A 13280-1160 1
COVER,MIRROR STAY,LH 14092 14092-1156 1
COVER,MIRROR STAY,RH 14092A 14092-1157 1
SCREW-PAN-WSP-CROS,4X10 236 236AB0410 1
SWITCH,CLUTCH,BLACK 27010 27010-1094 1
CASE,THROTTLE 32099 32099-0735 1
PAD,15X25X1 39156 39156-1747 2
PAD,7.5X30X8 39156A 39156-1810 2
HANDLE,FAT BAR 46003 46003-0632 1
HOLDER-HANDLE,F.S.BLACK 46012 46012-0347-18R 1
GRIP-ASSY,THROTTLE 46019 46019-0020 1
GRIP,LH 46075 46075-0068 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0089 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0279 1
HOUSING-ASSY-CONTROL,LH 46091B 46091-0330 1
LEVER-GRIP,CLUTCH 46092 46092-0006 1
MIRROR-ASSY,LH,S.BLACK 56001A 56001-0291-46V 1
MIRROR-ASSY,RH,S.BLACK 56001C 56001-0292-46V 1
SPRING 92145 92145-1286 1
BOLT 92151 92151-1523 1
COLLAR 92152 92152-0103 1
BOLT,SOCKET,8X30 92154 92154-0502 2
BOLT,SOCKET,8X25 92154A 92154-1236 4
BOLT,SOCKET,6X20 92154B 92154-1269 2
BOLT,SOCKET,5X35 92154C 92154-1272 2
BOLT,SOCKET,5X25 92154D 92154-1273 2
BOLT,SOCKET,5X22 92154E 92154-1279 2
BOLT,SOCKET,5X10 92154F 92154-1292 2
SCREW,3X16 92172 92172-0183 2
SCREW,ADJUST NUT 92172A 92172-1060 1
NUT,LOCK,6MM 92210 92210-0006 1
