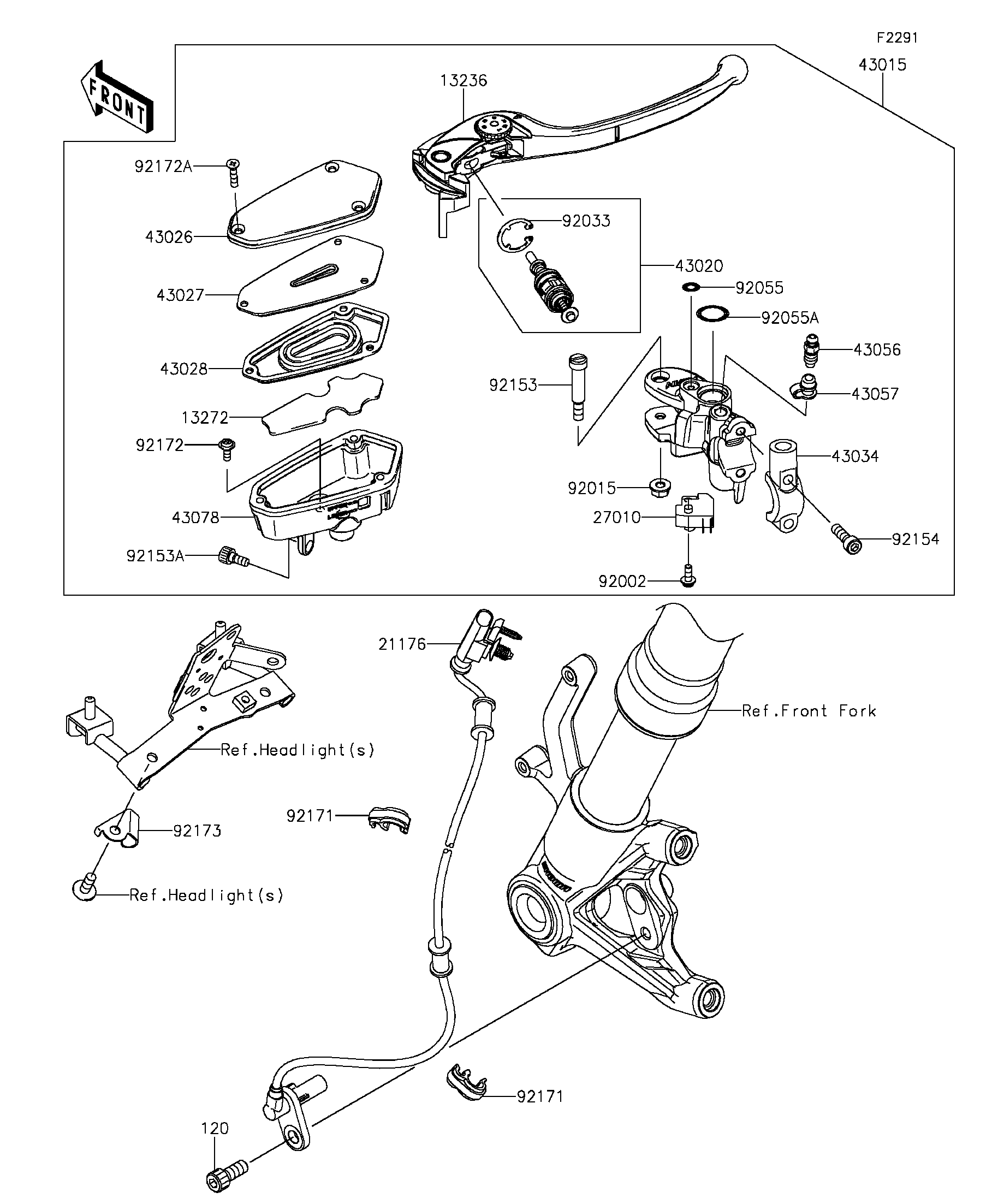

2016 Z1000 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
13236
13272
21176
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
92002
92015
92033
92055
92055A
92153
92153A
92154
92171
92171
92172
92172A
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X20 120 120CB0820 1
LEVER-COMP 13236 13236-0729 1
PLATE 13272 13272-1719 1
SENSOR,SPEED 21176 21176-0758 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0590 1
PISTON-COMP-BRAKE 43020 43020-0020 1
CAP-BRAKE 43026 43026-0011 1
PLATE-DIAPHRAGM 43027 43027-0003 1
DIAPHRAGM 43028 43028-0008 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0057 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-0569 1
BOLT,SCREW,4X12 92002 92002-1323 1
NUT,FLANGED,6MM 92015 92015-1528 1
RING-SNAP 92033 92033-0034 1
RING-O 92055 92055-0137 1
RING-O,14.8X2.4 92055A 92055-0741 1
BOLT,LEVER 92153 92153-0868 1
BOLT,SOCKET,6X12 92153A 92153-1853 1
BOLT,SOCKET,6X22 92154 92154-1271 2
CLAMP,BRAKE HOSE 92171 92171-1819 2
SCREW 92172 92172-0319 1
SCREW,4X20 92172A 92172-0855 3
CLAMP,SPEED SENSOR 92173 92173-1112 1
