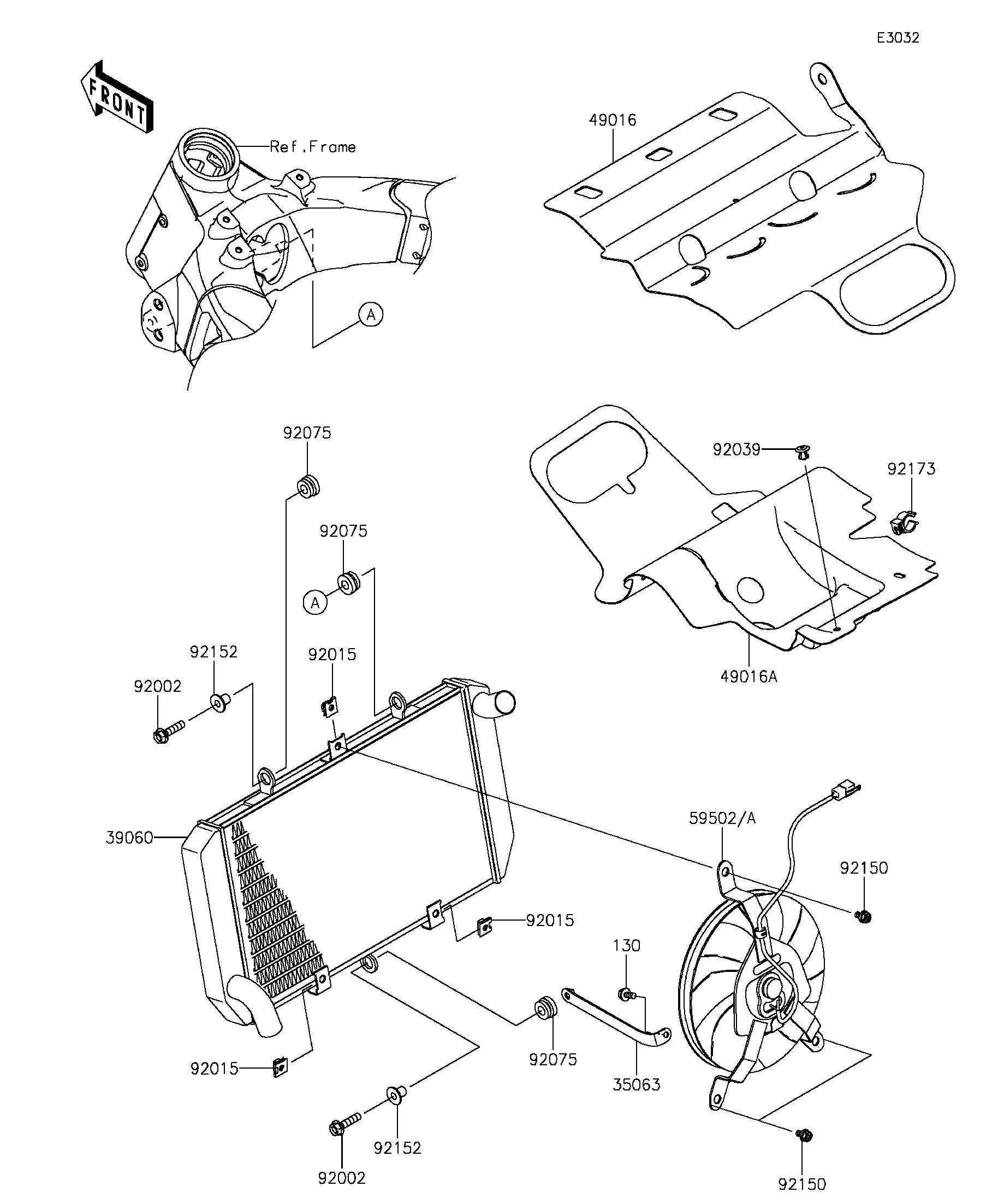

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED,6X16 | 130 | 130CC0616 | 1 | ||
| STAY | 35063 | 35063-0761 | 1 | ||
| RADIATOR | 39060 | 39060-0072 | 1 | ||
| COVER-SEAL | 49016 | 49016-0609 | 1 | ||
| COVER-SEAL | 49016A | 49016-0612 | 1 | ||
| FAN-ASSY | 59502A | 59502-0577 | 1 | ||
| BOLT,FLANGED,6X25 | 92002 | 92002-1086 | 2 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| RIVET | 92039 | 92039-0730 | 1 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| COLLAR | 92152 | 92152-0667 | 2 | ||
| CLAMP | 92173 | 92173-1240 | 1 |
