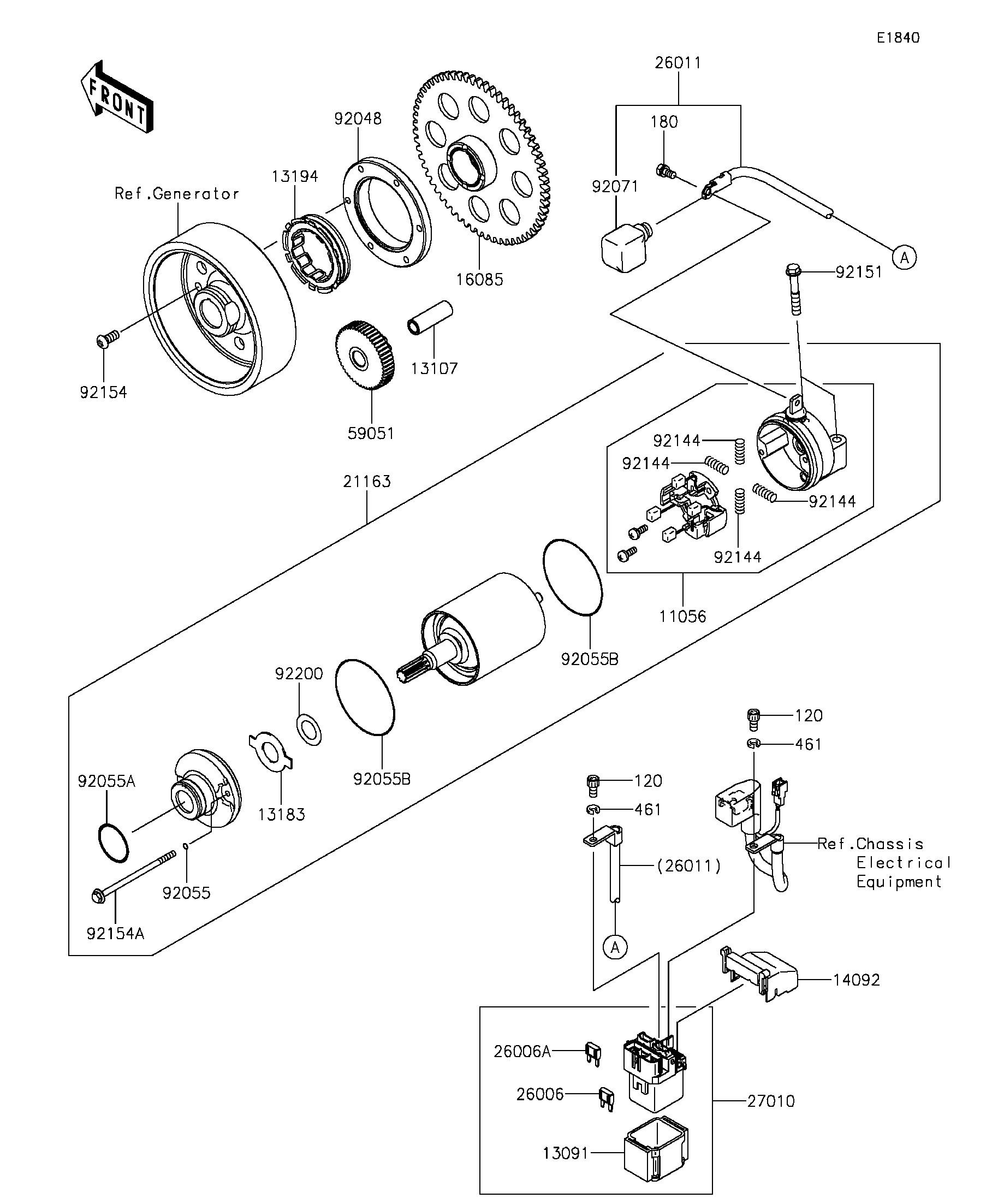

2016 Z1000 ABS - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
11056
120
120
13091
13107
13183
13194
14092
16085
180
21163
26006
26006A
26011
27010
461
461
59051
92048
92055
92055A
92055B
92055B
92071
92144
92144
92144
92144
92151
92154
92154A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11056 11056-2770 1
BOLT-SOCKET,5X10 120 120CB0510 2
HOLDER,MAGNETIC SWITCH 13091 13091-1884 1
SHAFT,IDLER GEAR 13107 13107-1377 1
PLATE 13183 13183-1460 1
CLUTCH-ONEWAY 13194 13194-1096 1
COVER 14092 14092-0109 1
GEAR,CLUTCH ONEWAY 16085 16085-0609 1
BOLT-UPSET-WS,5X10 180 180BA0510 1
STARTER-ELECTRIC 21163 21163-0742 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 1
FUSE,MINI BLADE,30A,GREEN 26006A 26006-1080 1
WIRE-LEAD 26011 26011-0820 1
SWITCH 27010 27010-0770 1
WASHER-SPRING,5MM 461 461DB0500 2
GEAR-SPUR,IDLER 59051 59051-0741 1
RACE 92048 92048-0018 1
RING-O,STARTER 92055 92055-0013 2
RING-O,24.4X3.1 92055A 92055-1262 1
RING-O 92055B 92055-1455 2
GROMMET 92071 92071-0031 1
SPRING,BRUSH 92144 92144-1423 4
BOLT,6X35 92151 92151-1624 2
BOLT,TORX,6X14 92154 92154-1225 6
BOLT,FLANGED 92154A 92154-1284 2
WASHER 92200 92200-1019 1
