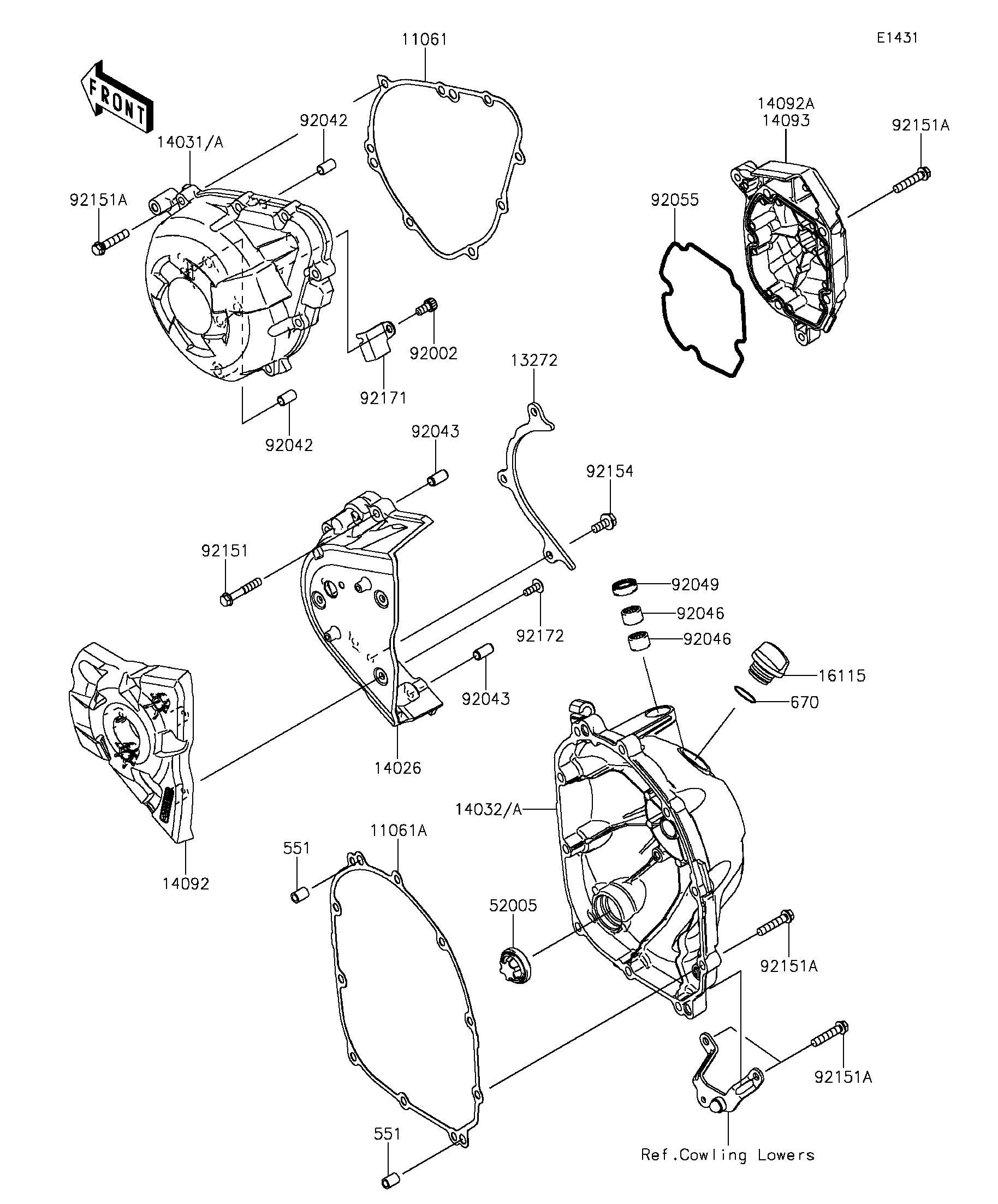

2016 Z1000 ABS - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
13272
14026
14031A
14032A
14092
14093
16115
52005
551
551
670
92002
92042
92042
92043
92043
92046
92046
92049
92055
92151
92151A
92151A
92151A
92151A
92154
92171
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,GENERATOR COVER 11061 11061-0403 1
GASKET,CLUTCH COVER 11061A 11061-0404 1
PLATE 13272 13272-0859 1
COVER-CHAIN 14026 14026-0114 1
COVER-GENERATOR 14031A 14031-0603 1
COVER-CLUTCH 14032A 14032-0621 1
COVER,OUTER 14092 14092-0032 1
COVER,PULSER 14093 14093-0379 1
CAP-OIL FILLER 16115 16115-1053 1
GAUGE 52005 52005-1120 1
PIN-DOWEL,8X14 551 551A0814 2
O RING,20MM 670 670B2020 1
BOLT,SOCKET,6X12 92002 92002-1796 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
PIN,6.2X8X14 92043 92043-1263 2
BEARING-NEEDLE,HK1210FM 92046 92046-0034 2
SEAL-OIL,CLUTCH RELEASE 92049 92049-1475 1
RING-O,PULSER COVER 92055 92055-0199 1
BOLT,6X35 92151 92151-1135 4
BOLT,6X30 92151A 92151-1873 23
BOLT,FLANGED,6X14 92154 92154-0482 3
CLAMP 92171 92171-0708 1
SCREW,TAPPING,5X14 92172 92172-0265 3
