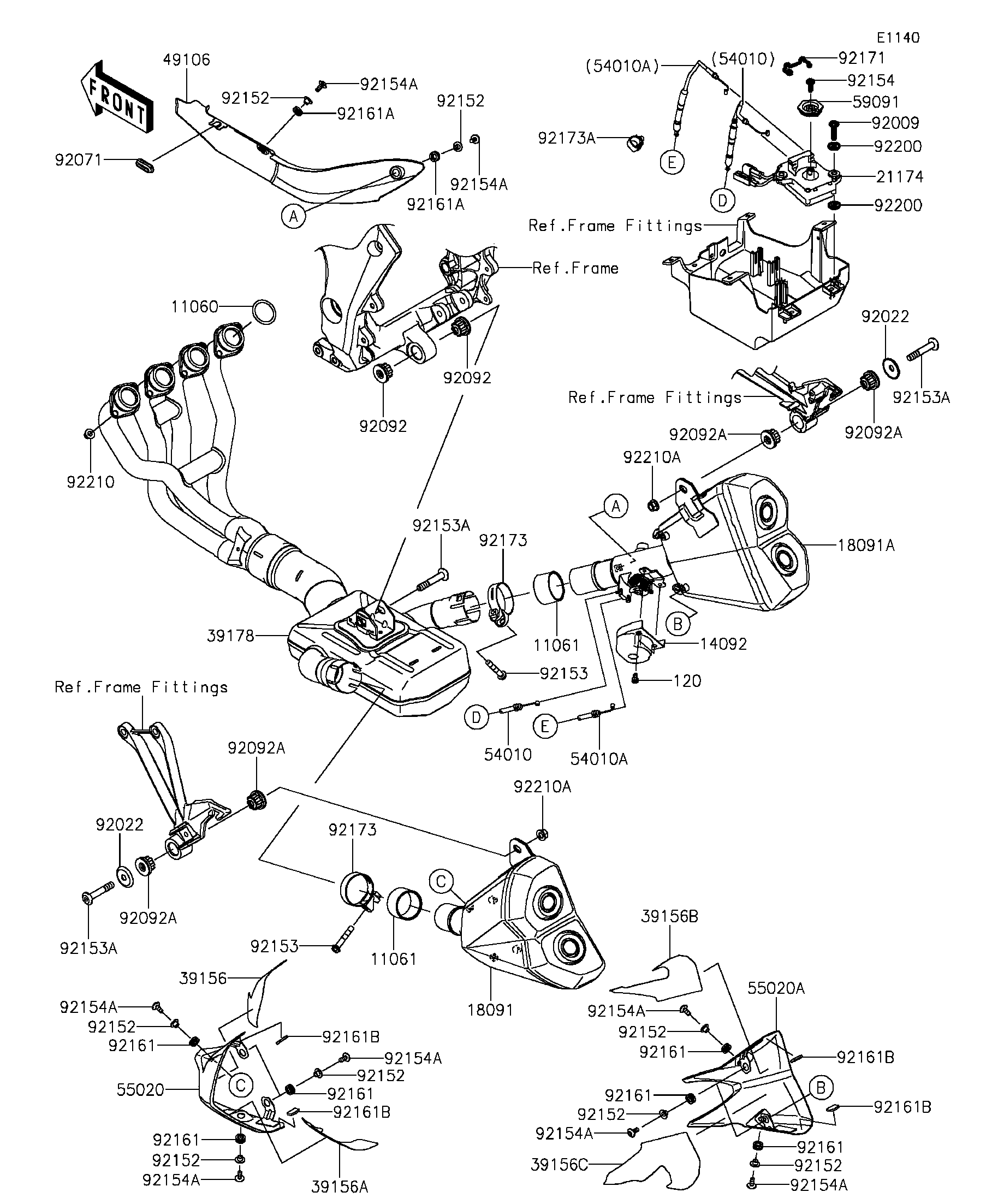

2016 Z1000 ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11061
11061
120
14092
18091
18091A
21174
39156
39156A
39156B
39156C
39178
49106
54010
54010A
55020
55020A
59091
92009
92022
92022
92071
92092
92092
92092A
92092A
92092A
92092A
92152
92152
92152
92152
92152
92152
92152
92152
92153
92153
92153A
92153A
92153A
92154
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92154A
92161
92161
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92161B
92161B
92171
92173
92173
92173A
92200
92200
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE HOLDER 11060 11060-1103 4
GASKET,MUFFLER CONNECTING 11061 11061-0726 2
BOLT-SOCKET,6X10 120 120CA0610 2
COVER,PULLEY 14092 14092-1169 1
BODY-COMP-MUFFLER,LH 18091 18091-0915 1
BODY-COMP-MUFFLER,RH 18091A 18091-0922 1
MOTOR-ELECTRIC 21174 21174-0005 1
PAD,LH,UPP 39156 39156-1728 1
PAD,LH,LOW 39156A 39156-1729 1
PAD,RH,UPP 39156B 39156-1730 1
PAD,RH,LOW 39156C 39156-1731 1
MANIFOLD-COMP-EXHAUST 39178 39178-0212 1
COVER-MUFFLER 49106 49106-0762 1
CABLE,OPEN,WHITE 54010 54010-0119 1
CABLE,CLOSE,BLACK 54010A 54010-0120 1
GUARD,LH 55020 55020-0907 1
GUARD,RH 55020A 55020-0908 1
PULLEY 59091 59091-0007 1
SCREW,TAPPING,6X30 92009 92009-1481 2
WASHER 92022 92022-289 2
GROMMET 92071 92071-0722 1
BUSHING-RUBBER 92092 92092-1081 2
BUSHING-RUBBER,MUFFLER 92092A 92092-1087 4
COLLAR,6.3X8.3X16 92152 92152-0286 10
BOLT,8X45 92153 92153-0702 2
BOLT,SOCKET,10X58 92153A 92153-1930 3
BOLT,TORX,5X18 92154 92154-0217 1
BOLT,SOCKET,6X14 92154A 92154-0907 10
DAMPER 92161 92161-0306 8
DAMPER 92161A 92161-0308 2
DAMPER 92161B 92161-0856 4
CLAMP 92171 92171-0292 1
CLAMP 92173 92173-0037 2
CLAMP,HOLDER CLIP 92173A 92173-0868 1
WASHER 92200 92200-0078 4
NUT,8MM 92210 92210-0076 8
NUT 92210A 92210-0568 2
