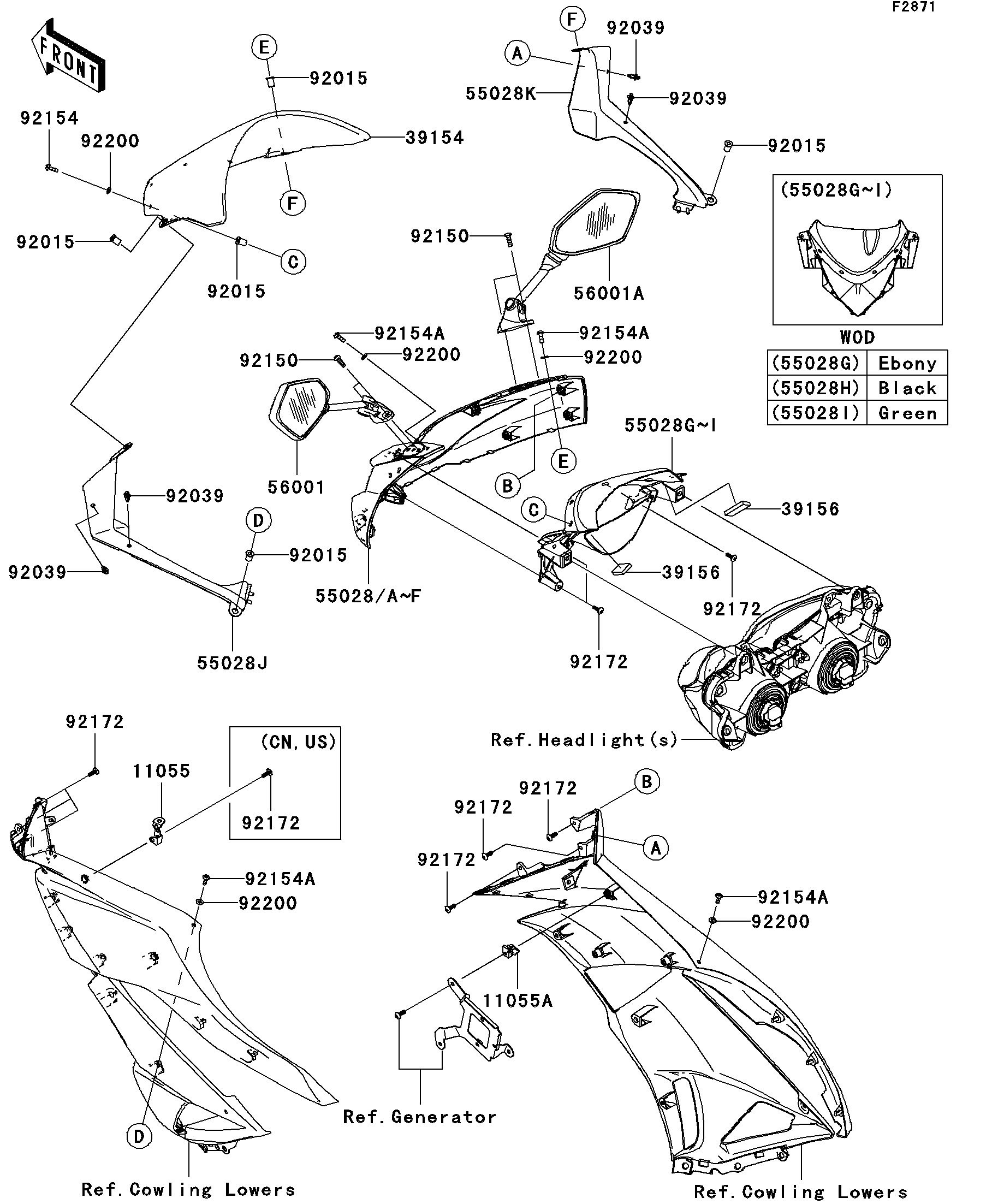

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11055
11055A
39154
39156
39156
55028C
55028E
55028H
55028J
55028K
56001
56001A
92015
92015
92015
92015
92015
92039
92039
92039
92039
92150
92150
92154
92154A
92154A
92154A
92154A
92172
92172
92172
92172
92172
92172
92172
92200
92200
92200
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,INNER COWLING | 11055 | 11055-1278 | 1 | ||
| BRACKET,INNER COWLING | 11055A | 11055-1513 | 1 | ||
| WINDSHIELD | 39154 | 39154-0030 | 1 | ||
| PAD | 39156 | 39156-0320 | 2 | ||
| COWLING,UPP,P.RED | 55028C | 55028-0251-234 | 1 | ||
| COWLING,UPP,M.S.BLACK | 55028E | 55028-0251-660 | 1 | ||
| COWLING,UPP,CNT,F.S.BLACK | 55028H | 55028-0290-18T | 1 | ||
| COWLING,INNER,LH | 55028J | 55028-0296 | 1 | ||
| COWLING,INNER,RH | 55028K | 55028-0297 | 1 | ||
| MIRROR-ASSY,LH | 56001 | 56001-0146 | 1 | ||
| MIRROR-ASSY,RH | 56001A | 56001-0147 | 1 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 8 | ||
| RIVET | 92039 | 92039-0068 | 4 | ||
| BOLT,SOCKET,6X18 | 92150 | 92150-1553 | 4 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-0026 | 4 | ||
| BOLT,SOCKET,5X16 | 92154A | 92154-0209 | 4 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 9 | CA | |
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 8 | ||
| SCREW,TAPPING,5X16 | 92172 | 92172-0175 | 10 | CN,US 1 |
| BRACKET,INNER COWLING | |
| REF # | 11055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,INNER COWLING | |
| REF # | 11055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WINDSHIELD | |
| REF # | 39154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,P.RED | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,M.S.BLACK | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,UPP,CNT,F.S.BLACK | |
| REF # | 55028H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,LH | |
| REF # | 55028J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,INNER,RH | |
| REF # | 55028K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY,LH | |
| REF # | 56001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MIRROR-ASSY,RH | |
| REF # | 56001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,WELL,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | CA |
| REMARKS | |
| WASHER,NYLONE,5.3X11.5X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | CN,US 1 |
| REMARKS | |
