Parts Diagrams |

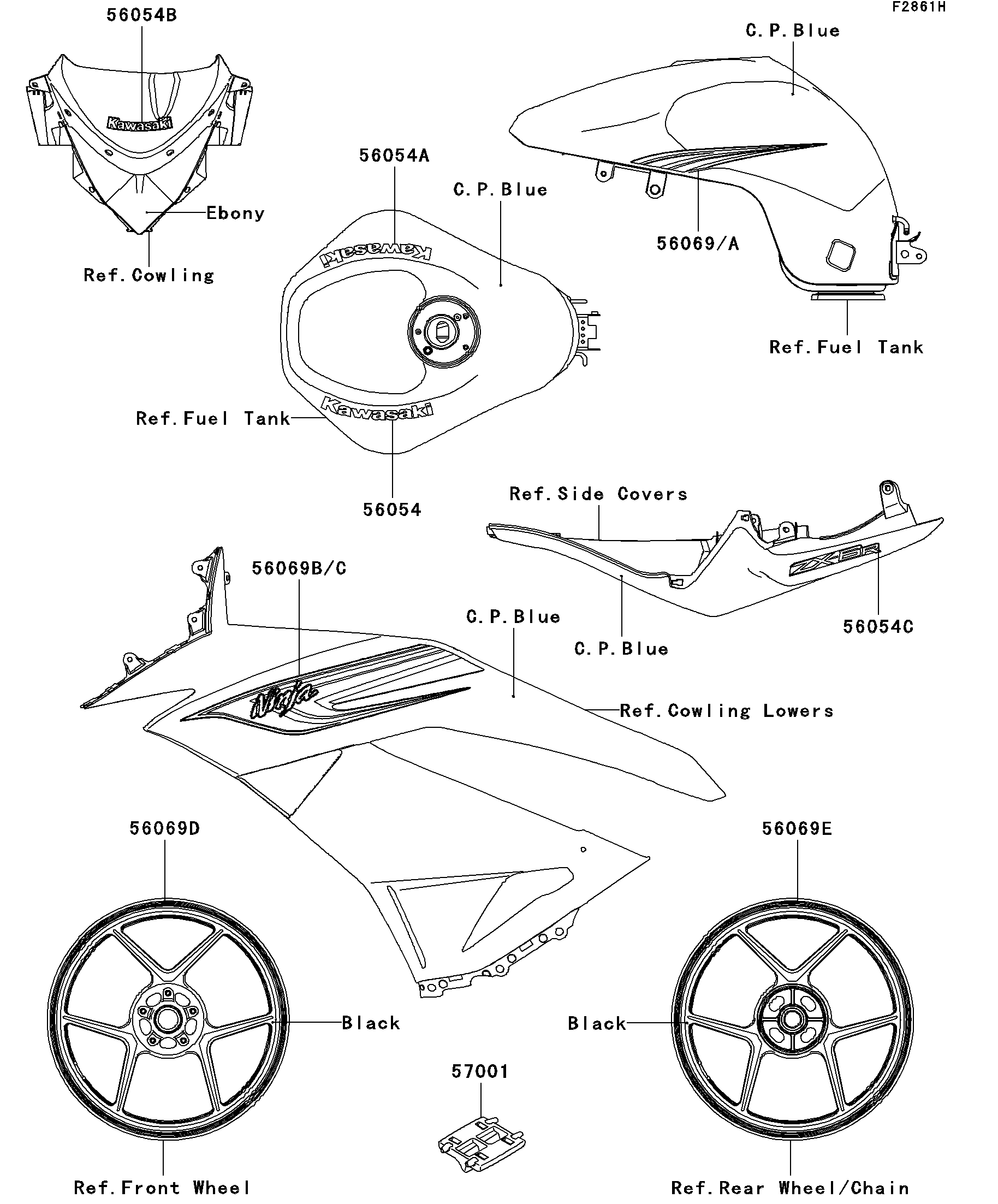

2011 NINJA® ZX™-6R - Decals(C.P.Blue)(RBF)(CA,US)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK,LH,KAWASAKI | 56054 | 56054-0278 | 1 | CA,US | |
| MARK,FUEL TANK,RH,KAWASAKI | 56054A | 56054-0279 | 1 | CA,US | |
| MARK,UPP COWLING,KAWASAKI | 56054B | 56054-0687 | 1 | CA,US | |
| MARK,TAIL COVER,ZX-6R | 56054C | 56054-0768 | 2 | CA,US | |
| PATTERN,FUEL TANK,LH | 56069 | 56069-1146 | 1 | CA,US | |
| PATTERN,FUEL TANK,RH | 56069A | 56069-1147 | 1 | CA,US | |
| PATTERN,SIDE COWLING,LH | 56069B | 56069-1148 | 1 | CA,US | |
| PATTERN,SIDE COWLING,RH | 56069C | 56069-1149 | 1 | CA,US | |
| PATTERN,FR WHEEL,GRADATION | 56069D | 56069-1150 | 2 | CA,US | |
| PATTERN,RR WHEEL,GRADATION | 56069E | 56069-1151 | 2 | CA,US | |
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | 1 | CA,US |
| MARK,FUEL TANK,LH,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,FUEL TANK,RH,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,UPP COWLING,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| MARK,TAIL COVER,ZX-6R | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWLING,LH | |
| REF # | 56069B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,SIDE COWLING,RH | |
| REF # | 56069C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,FR WHEEL,GRADATION | |
| REF # | 56069D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| PATTERN,RR WHEEL,GRADATION | |
| REF # | 56069E |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | CA,US |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
