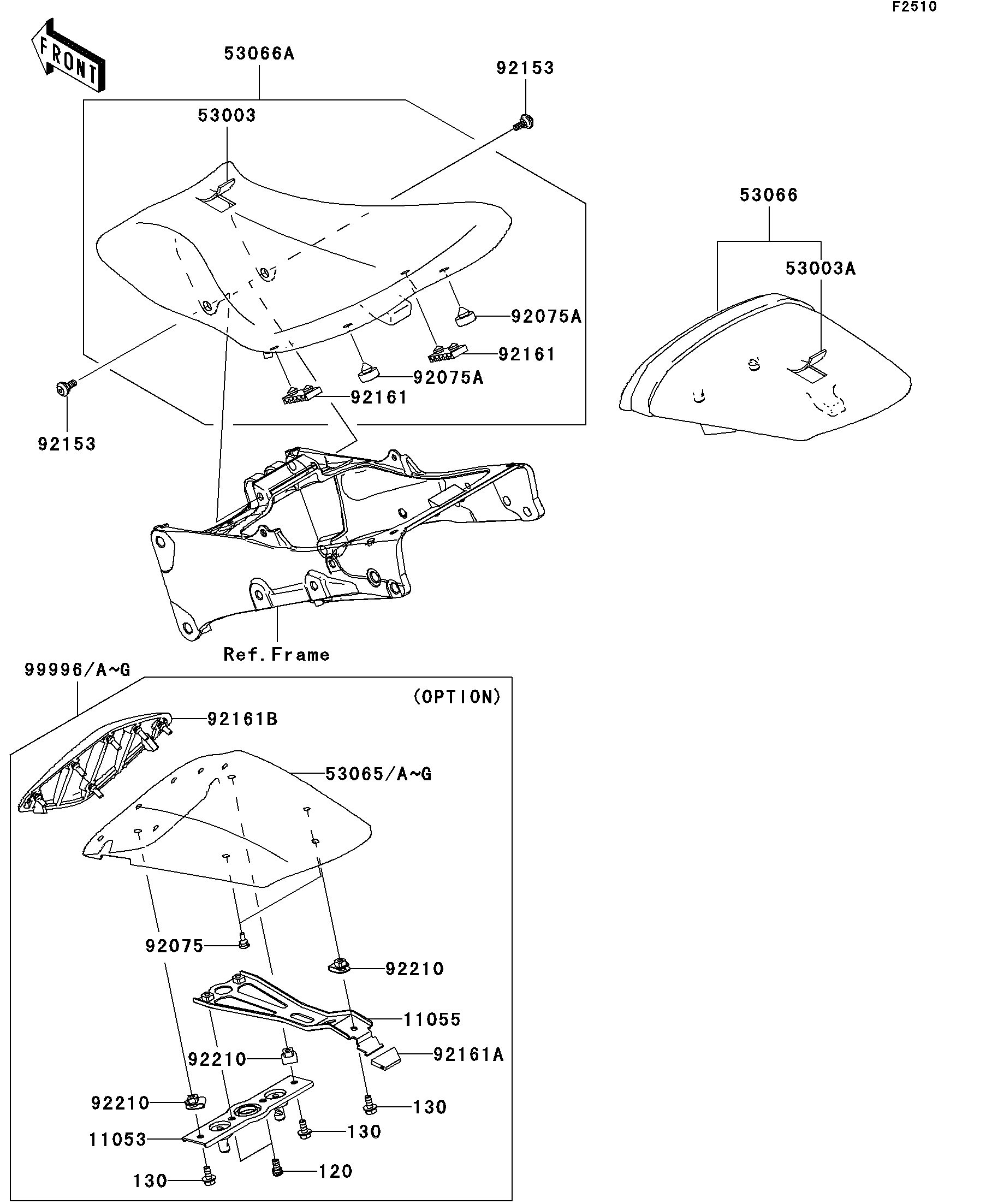

2010 Ninja® ZX™-6R - Seat(R9F/RAF-RBF)

DOWNLOAD PDF
SELECT A NEW PART
11053
11053
11055
11055
53003
53003
53003A
53003A
53065C
53065C
53065E
53065E
53066
53066
53066A
53066A
92075
92075
92075A
92075A
92075A
92075A
92153
92153
92153
92153
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92210
92210
92210
92210
92210
92210
120
120
130
130
130
130
130
130
99996C
99996C
99996E
99996E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT LOCK STRIKER 11053 11053-0386 1 (OPTION)
BRACKET,SEAT COVER 11055 11055-0871 1 (OPTION)
LEATHER,FRONT SEAT,BLACK 53003 53003-0120-MA 1
LEATHER,REAR SEAT,BLACK 53003A 53003-0121-MA 1
COVER SEAT,P.RED 53065C 53065-0017-234 1 (OPTION)
COVER SEAT,M.S.BLACK 53065E 53065-0017-660 1 (OPTION)
SEAT,RR,LEATHER BLK+BAND BLK 53066 53066-0189-12Y 1
SEAT-ASSY,FR,BLACK 53066A 53066-0246-MA 1
DAMPER 92075 92075-1808 2 (OPTION)
DAMPER 92075A 92075-1927 2
BOLT,SOCKET,6MM 92153 92153-0489 2
DAMPER,SEAT 92161 92161-0149 2
DAMPER 92161A 92161-0629 1 (OPTION)
DAMPER,SEAT COVER 92161B 92161-0697 1 (OPTION)
NUT,6MM 92210 92210-0277 3 (OPTION)
BOLT-SOCKET,6X10 120 120CA0610 2 (OPTION)
BOLT-FLANGED,6X14 130 130BA0614 3 (OPTION)
KIT,SINGLE SEAT COVER,P.RED 99996C 99996-1361-234 1 (OPTION)
KIT,SINGLE SEAT COVER,BLACK 99996E 99996-1361-660 1 (OPTION)
