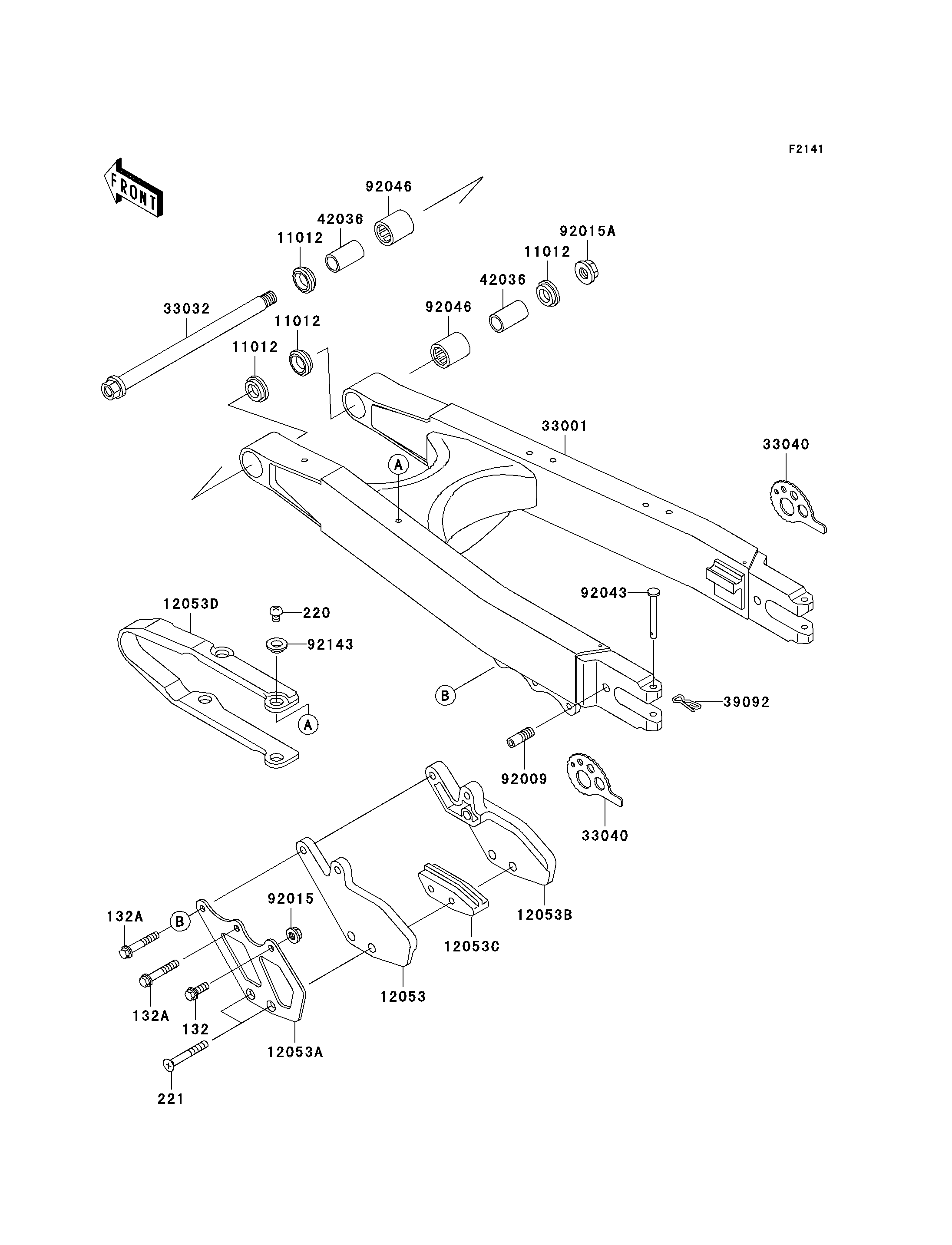

2006 KLX300R - Swingarm

DOWNLOAD PDF
SELECT A NEW PART
132
132A
132A
220
221
11012
11012
11012
11012
12053
12053A
12053B
12053C
12053D
33001
33032
33040
33040
39092
42036
42036
92009
92015
92015A
92043
92046
92046
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X16 132 132G0616 1
BOLT-FLANGED-SMALL,6X35 132A 132G0635 2
SCREW-PAN-CROS,6X8 220 220B0608 4
SCREW-CSK-CROS,6X45 221 221B0645 2
CAP,SWING ARM 11012 11012-1259 4
GUIDE-CHAIN,RR,INSIDE 12053 12053-1234 1
GUIDE-CHAIN,RR,OUTSIDE 12053A 12053-1235 1
GUIDE-CHAIN,RR,OUTSIDE 12053B 12053-1236 1
GUIDE-CHAIN,DRIVE,RR,INSIDE 12053C 12053-1270 1
GUIDE-CHAIN,DRIVE,FR 12053D 12053-1328 1
ARM-COMP-SWING,P.SILVER 33001 33001-1508-458 1
SHAFT-SWING ARM 33032 33032-0006 1
ADJUSTER-CHAIN 33040 33040-1113 2
PIN-HAIR 39092 39092-0001 2
SLEEVE,SWING ARM 42036 42036-1064 2
SCREW,SET,10X29 92009 92009-1686 2
NUT,FLANGED,6MM 92015 92015-1078 1
NUT,14MM 92015A 92015-1407 1
PIN,6X45 92043 92043-1590 2
BEARING-NEEDLE,TA2030Z 92046 92046-1128 2
COLLAR 92143 92143-1156 4
