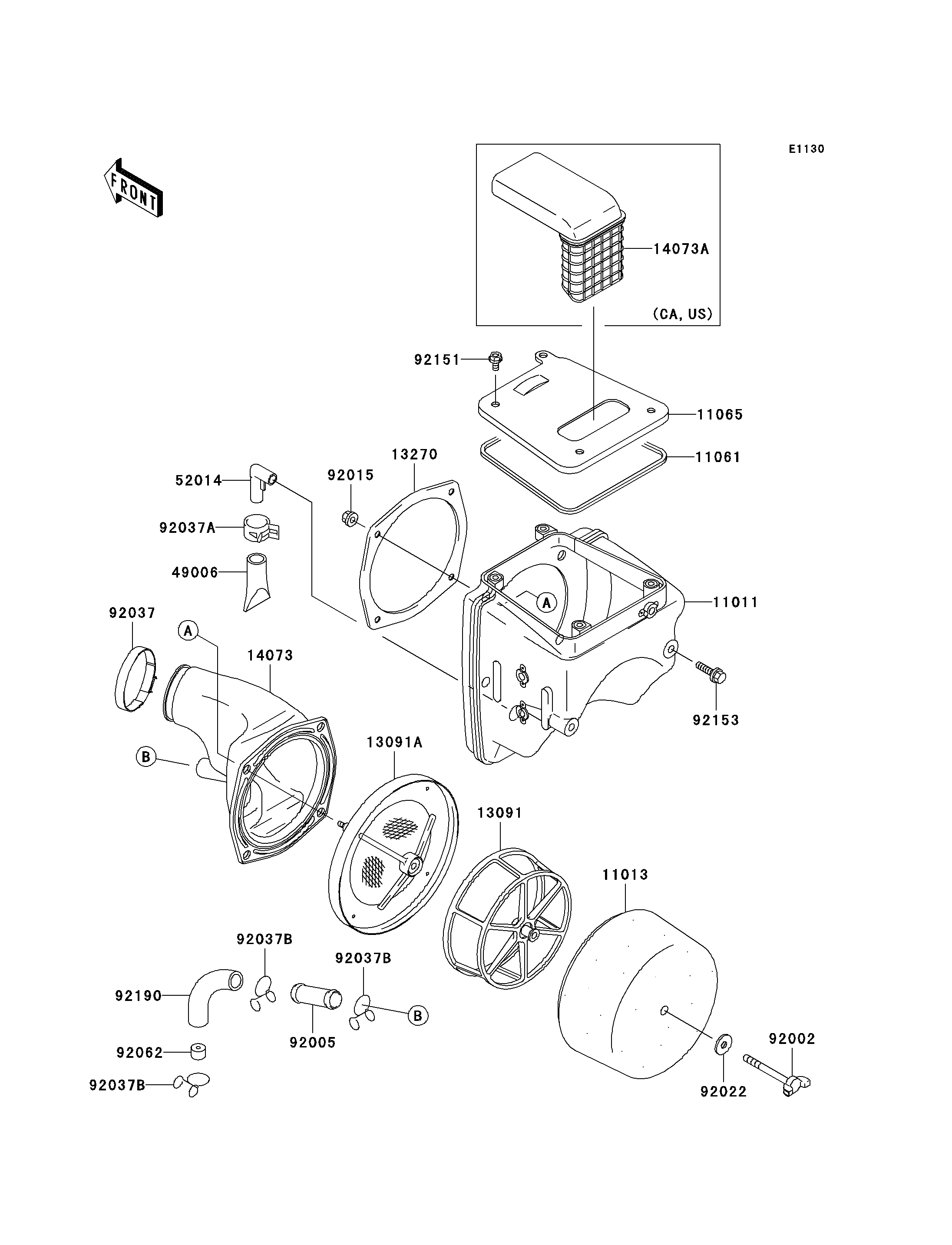

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
11011
11013
11061
11065
13091
13091A
13270
14073
49006
52014
92002
92005
92015
92022
92037
92037A
92037B
92037B
92037B
92062
92151
92153
92190
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER | 11011 | 11011-1399 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1260 | 1 | ||
| GASKET,L=535 | 11061 | 11061-1056 | 1 | ||
| CAP,AIR FILTER | 11065 | 11065-1182 | 1 | ||
| HOLDER,ELEMENT | 13091 | 13091-1454 | 1 | ||
| HOLDER,ELEMENT | 13091A | 13091-1835 | 1 | ||
| PLATE,DUCT FITTING | 13270 | 13270-1284 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1566 | 1 | ||
| BOOT | 49006 | 49006-1211 | 1 | ||
| ELBOW | 52014 | 52014-1083 | 1 | ||
| BOLT,WING | 92002 | 92002-1719 | 1 | ||
| FITTING | 92005 | 92005-1236 | 1 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1656 | 4 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-125 | 1 | ||
| CLAMP | 92037 | 92037-1554 | 1 | ||
| CLAMP | 92037A | 92037-2082 | 1 | ||
| CLAMP,TUBE | 92037B | 92037-213 | 3 | ||
| NOZZLE | 92062 | 92062-1076 | 1 | ||
| BOLT,6X12 | 92151 | 92151-1239 | 4 | ||
| BOLT,6X20 | 92153 | 92153-0502 | 3 | ||
| TUBE,BREATHER | 92190 | 92190-1397 | 1 | ||
| DUCT,AIR INTAKE | 14073A | 14073-1588 | 1 | CAUS |
| CASE-AIR FILTER | |
| REF # | 11011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,L=535 | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR FILTER | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,ELEMENT | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,ELEMENT | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,DUCT FITTING | |
| REF # | 13270 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW | |
| REF # | 52014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,WING | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FITTING | |
| REF # | 92005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NOZZLE | |
| REF # | 92062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X12 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| TUBE,BREATHER | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR INTAKE | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CAUS |
| REMARKS | |
