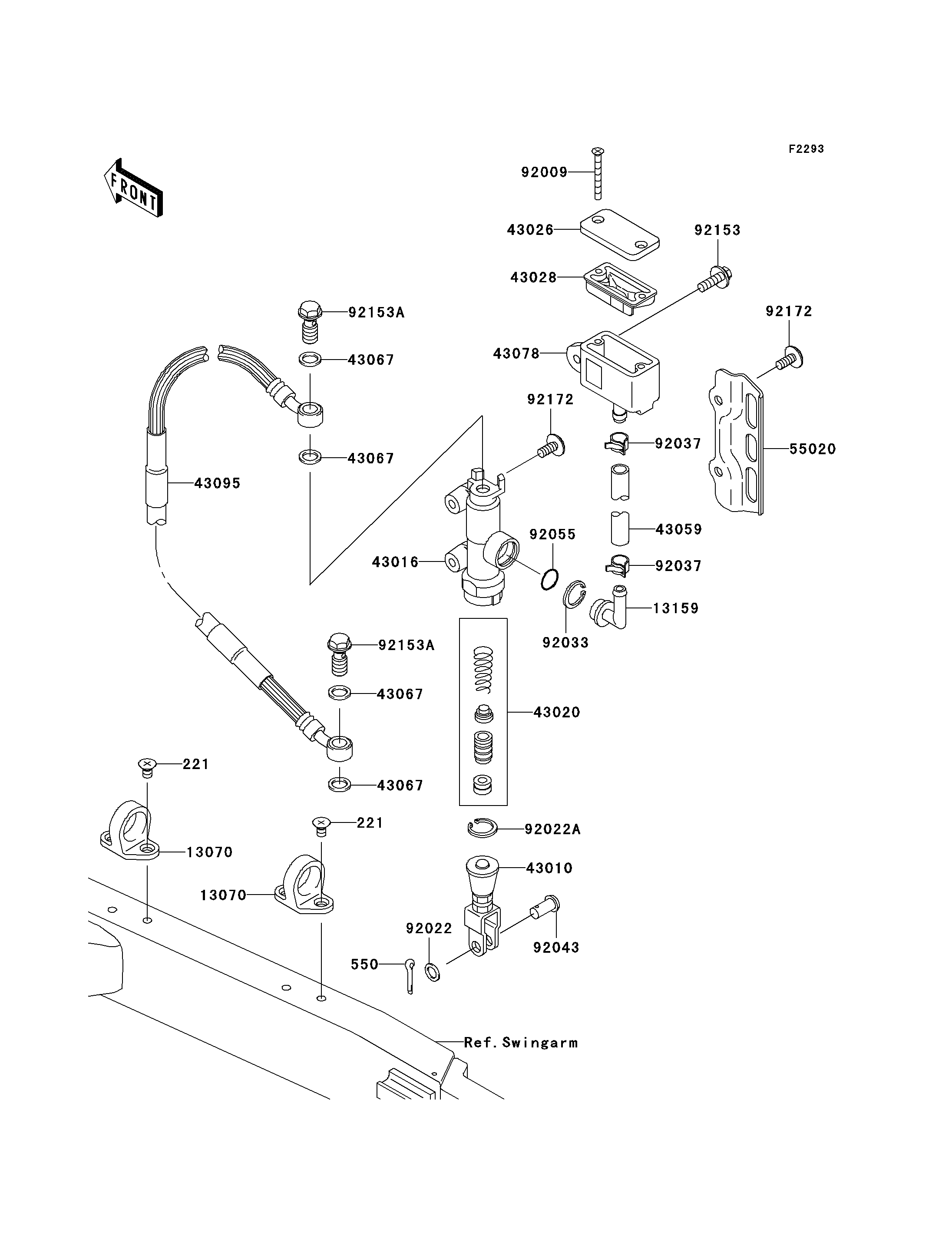

2005 KLX300R - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
221
221
550
13070
13070
13159
43010
43016
43020
43026
43028
43059
43067
43067
43067
43067
43078
43095
55020
92009
92022
92022A
92033
92037
92037
92043
92055
92153
92153A
92153A
92172
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-CSK-CROS,6X10 221 221B0610 4
PIN-COTTER,2.0X15 550 550D2015 1
GUIDE,HOSE 13070 13070-1144 2
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1068 1
CYLINDER-MASTER 43016 43016-1149 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1075 1
DIAPHRAGM 43028 43028-1067 1
HOSE-BRAKE,RR MASTER CYLINDER 43059 43059-1767 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR 43078 43078-1189 1
HOSE-BRAKE,RR 43095 43095-1349 1
GUARD,RR BRAKE RESERVOIR HOSE 55020 55020-1489 1
SCREW,4X40 92009 92009-1596 2
WASHER,8.5X13X1 92022 92022-1028 1
WASHER,CIRCRIP 92022A 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP 92037 92037-1710 2
PIN 92043 92043-0004 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,6X20 92153 92153-0502 1
BOLT,OIL,L=23 92153A 92153-0627 2
SCREW,6X14 92172 92172-0107 4
