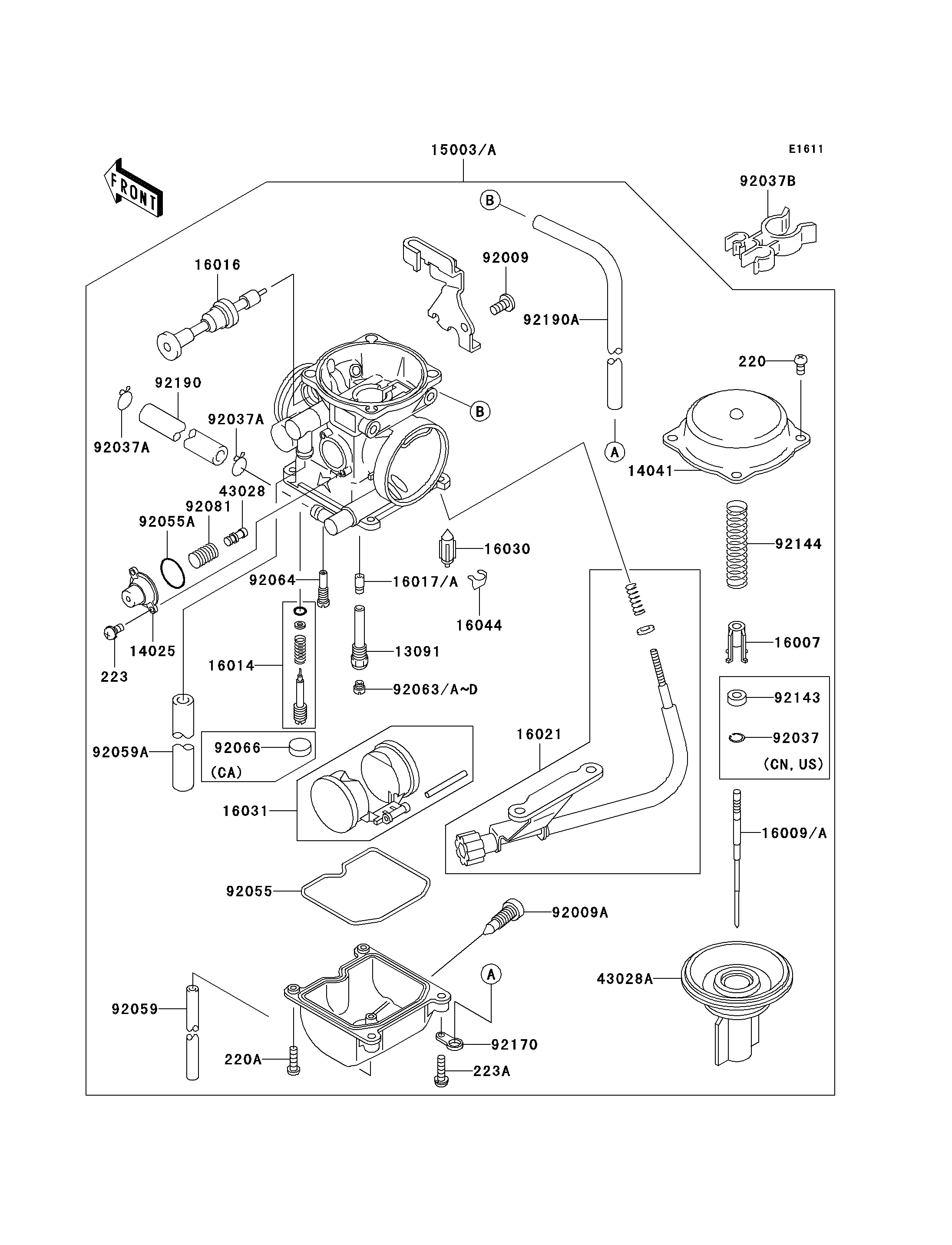

2005 KLX300R - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
13091
13091
14025
14025
14041
14041
16007
16007
16014
16014
16016
16016
16021
16021
16030
16030
16031
16031
16044
16044
43028
43028
43028A
43028A
92009
92009
92009A
92009A
92037A
92037A
92037A
92037A
92037B
92037B
92055
92055
92055A
92055A
92059
92059
92059A
92059A
92063
92063
92063A
92063A
92063B
92063B
92063C
92063C
220
220
220A
220A
223
223
223A
223A
92063D
92063D
92064
92064
92081
92081
92144
92144
92170
92170
92190
92190
92190A
92190A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,NEEDLE JET 13091 13091-1985 1
COVER,AIR CUT VALVE 14025 14025-1903 1
COVER-COMP,MIXING,INSIDE 14041 14041-1061 1
SEAT-SPRING,VALVE 16007 16007-1117 1
SCREW-PILOT AIR 16014 16014-1081 1
PLUNGER,STARTER 16016 16016-1068 1
SCREW-THROTTLE STOP 16021 16021-1182 1
VALVE-FLOAT 16030 16030-1007 1
FLOAT 16031 16031-1077 1
CLAMP,FLOAT VALVE 16044 16044-007 1
DIAPHRAGM,5.9MM,AIR CUT VALVE 43028 43028-1053 1
DIAPHRAGM,VALVE 43028A 43028-1081 1
SCREW,5X10 92009 92009-1365 1
SCREW,DRAIN,M6X0.75 92009A 92009-1551 1
CLAMP,TUBE 92037A 92037-1531 2
CLAMP 92037B 92037-1886 1
RING-O,FLOAT CHAMBER 92055 92055-1222 1
RING-O 92055A 92055-1245 1
TUBE,3.5X6.5X330 92059 92059-1110 1
TUBE,6.5X9.5X350 92059A 92059-1237 1
JET-MAIN,#125 92063 92063-1069 1 (OFF ROAD USE ONLY)
JET-MAIN,#122 92063A 92063-1073 1 (OFF ROAD USE ONLY)
JET-MAIN,#128 92063B 92063-1074 1
JET-MAIN,#130 92063C 92063-1075 1 (OFF ROAD USE ONLY)
SCREW-PAN-CROS 220 220B0408 4
SCREW-PAN-CROS 220A 220D0414 2
SCREW-PAN-WS-CROS 223 223C0408 2
SCREW-PAN-WS-CROS 223A 223C0416 2
JET-MAIN,#132 92063D 92063-1076 1 (OFF ROAD USE ONLY)
JET-PILOT,#35 92064 92064-1101 1
SPRING,AIR CUT VALVE 92081 92081-1719 1
SPRING,VACUUM VALVE 92144 92144-1538 1
CLAMP,TUBE 92170 92170-1496 1
TUBE,6.5X11.5X100 92190 92190-1474 1
TUBE,5X8X430 92190A 92190-1560 1
CARBURETOR-ASSY 15003 15003-1260 1 CNUS
CARBURETOR-ASSY 15003A 15003-1374 1 CA
NEEDLE-JET,N1TC 16009 16009-1912 1 CNUS
NEEDLE-JET,N5AF 16009A 16009-1996 1 CA
JET-NEEDLE 16017 16017-1368 1 CNUS
JET-NEEDLE 16017A 16017-1396 1 CA
CLAMP,JET NEEDLE 92037 92037-1401 1 CNUS
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 1 CA
COLLAR 92143 92143-1667 1 CNUS
