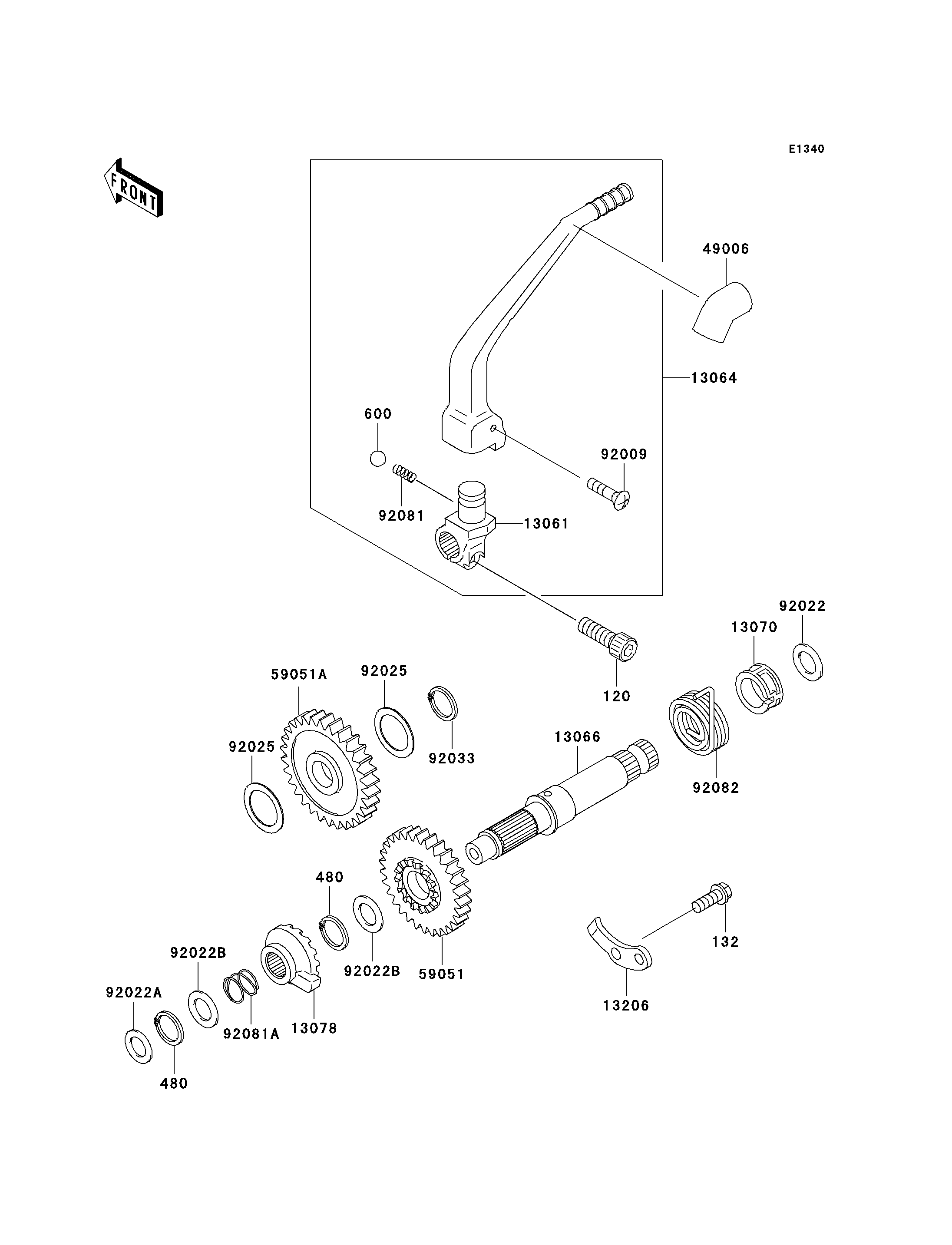

2005 KLX300R - Kickstarter Mechanism

DOWNLOAD PDF
SELECT A NEW PART
120
132
480
480
600
13061
13064
13066
13070
13078
13206
49006
59051
59051A
92009
92022
92022A
92022B
92022B
92025
92025
92033
92081
92081A
92082
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,BLACK 120 120S0825 1
BOLT-FLANGED-SMALL 132 132G0616 1
CIRCLIP-TYPE-C,16MM 480 480J1600 2
BALL-STEEL,1/4" 600 600A0800 1
BOSS,KICK PEDAL 13061 13061-1397 1
LEVER-ASSY-KICK,PEDAL 13064 13064-1172 1
SHAFT-KICK 13066 13066-1088 1
GUIDE,KICK SPRING 13070 13070-011 1
RATCHET 13078 13078-1052 1
GUIDE-KICK 13206 13206-1062 1
BOOT 49006 49006-1287 1
GEAR-SPUR,KICK,29T 59051 59051-1131 1
GEAR-SPUR,28T 59051A 59051-1400 1
SCREW,6X27 92009 92009-1607 1
WASHER,18.5X23X1.2 92022 92022-118 1
WASHER,12.3X20X0.5 92022A 92022-269 1
WASHER,16.8X22X0.5 92022B 92022-315 2
SHIM,T=0.7 92025 92025-1451 2
RING-SNAP,18MM 92033 92033-029 1
SPRING,KICK PEDAL 92081 92081-020 1
SPRING,RATCHET 92081A 92081-122 1
SPRING,KICKSTARTER 92082 92082-003 1
